• Model NO.：STYD-2
• Loading Method：No
• Display：Digital
• Control：Digital Display
• Weight：175kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Styd-2 Asphalt Ductilometer
• Extension Speed：50mm,Min
• Max. Ductility：1500mm, 2000mm
• Heating Range：Room Temperature-50c
• Voltage：AC220V 50Hz
• Mould Size：75X32X10mm
• Suitable for：Testing 3 Samples Simutaneously
• Dimension：2080X390X560mm
• Features：Stainless Steel for Both Inside and Outside Casing
• Transport Package：Wooden Case
• Specification：1.31CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STYD-2 Loading Method No Display Digital Control Digital Display Weight 175kg Power Source AC220V Oil Cylinder Position No Product Name Styd-2 Asphalt Ductilometer Extension Speed 50mm/Min Max. Ductility 1500mm, 2000mm Heating Range Room Temperature-50c Voltage AC220V 50Hz Mould Size 75X32X10mm Suitable for Testing 3 Samples Simutaneously Dimension 2080X390X560mm Features Stainless Steel for Both Inside and Outside Casing Transport Package Wooden Case Specification 1.31CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

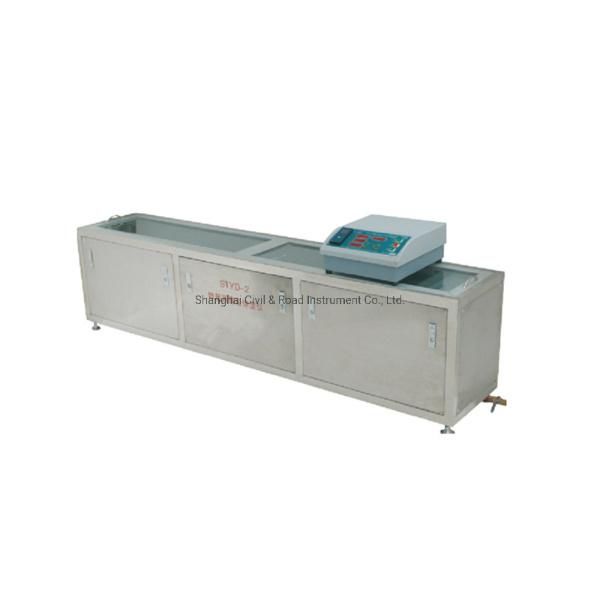

STYD-2 Digital Display Asphalt Ductilometer

Application: Determination of ductility and the elastic reset of bitumen. Stainless steel for both casing and water bath.
Purpose:
The instrument is designed and made as per the National Standard GB/T 4508 "Test Methods for Ductility of Petroleum Asphalt", and T0605 "Asphalt Ductility Test" in the Industry Standard JTJ052Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering. It is suitable to determine the length of petroleum asphalt when it is dragged to broken at certain speed under stipulated condition and temperature. It is indicated by cm.

Parameters:

Extension speed	50±2.5mm/min
Max. ductility	1500mm, 2000mm
Heating range	room temperature-50ºC
Temperature accuracy	±0.5ºC
Voltage	AC220V 50HZ
Mould size	75×32×10mm
Suitable	for testing 3 samples simutaneously
Dimension	2080×390×560mm

Features:
1. It integrates achievements of domestic and overseas design concepts on ductility tester. It is advanced and delicate.
2. There is no thread rod, guide rail and other device in the test trough, so it is convenient to install test sample.
3. Equipped with newly designed driving parts, it is stable and synchronous without shake during dragging procedure. The dragging speed is uniform and the ductility is accurate.
4. It can make determination for ductility of 3 pieces of samples and dragging force of 2 pieces of samples at the same time.
5. It adopts computer control techniques, so it is with high temperature controlling accuracy.
6. It has function of automatic positioning for test mold. You can make determination remotely. It is convenient.
7. It uses a large LCD to show temperature, ductility, dragging force, and other parameters clearly. The interface is friendly.
8. Equipped data collector (ductility of each sample, average value of ductility, the maximum dragging force, and dragging force change curve automatically.
9.Features: Stainless steel for both inside and outside casing, with ABS controller, and twin lead screws.
