Hydraulic Probing Rig Soil Spt-C on Crawler Chassis
Zhuozhou Tianpeng Imp. & Exp. Trade Co., Ltd.- Transport Package：Standard Export Wooden Box
- Trademark：C-Tech
- Origin：China
Base Info
- Model NO.：SPT-C390
- HS Code：90248000
- Production Capacity：100PCS,Year
Description
Hydraulic station unit
Honda engine GX390, maximum power 8.7kw, electric start, with hour meter and voltmeter
Hammer mass
DPL 10kg, DPM 30kg, DPH 50kg, DPSH &SPT 63.5kg
Number of blows
15-30 blows per minute
Dropping height
500 / 750mm adjustable
Window sampling
With 51mm outer diameter, 1m length
Extraction unit
16ton pulling force

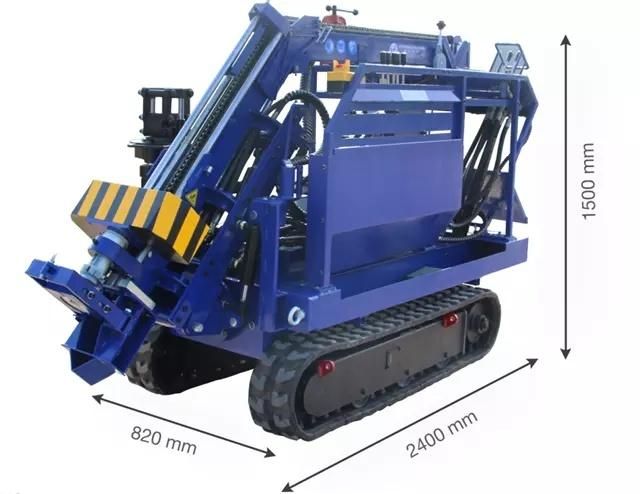

Dimension
820x2400x1500mm in transportation
Weight
850kgs
Standard Configuration
No.
Item
Qty.
Remark
1
The dynamic probing rig
1 set
2
Hydraulic station unit
1 set
3
Rod
12 pcs
Dia. 22mm x 1m, 2 pcs;
Dia. 32mm x 1m, 10 pcs
4
Brass cap
2 pcs
One is suitable for dia. 22mm rod, the other is for dia. 32mm rod
5
Cone
4 pcs
90° cones, nominal base areas are 10cm2, 15cm2, 16cm2, and 20cm2 respectively.
6
Window sampler
1 pc
Outer dia. 51mm x 1m length
7
Rod clamp
3 pairs
Suitable for dia. 22mm and dia. 32mm rod and dia. 51mm window sampler
8
Rod extraction unit
1 set
Including oil cylinder and clamp
9
Tools
1 set
