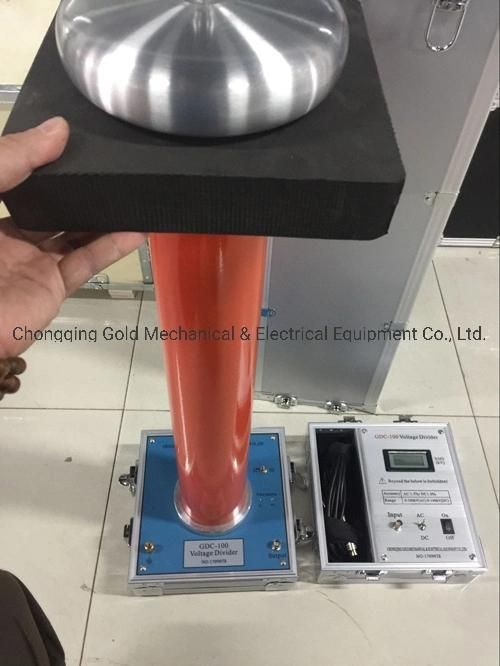

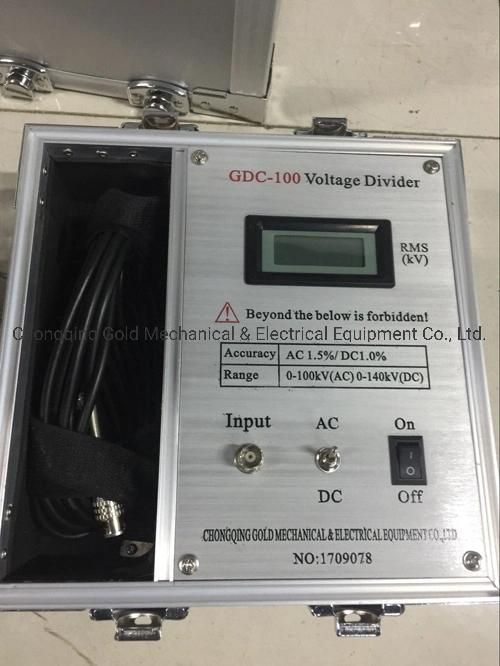

Portable High Precision High Voltage Capacitive Voltage Divider AC DC Impulse Capacitive Voltage Divider
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Max Voltage：50kv,100kv,150kv,200kv
- Product Name：High Voltage Divider
- Max Error：AC:1%Rdg+0.1%Fs
- Max Error DC：DC: 0.5%Rdg+0.05%Fs
- Environment Temperature：0~50°c
- Humidity：≤80%Rh
Base Info
- Model NO.：GDC
- Resistance and Capacitor Value：Customize
- Compose Mode：Customize (Resistive or Capacitive);
- Transport Package：Plywood Case
- Specification：10kg
- Trademark：Gold
- Origin：Chongqing
- HS Code：9030849000
- Production Capacity：200piece,Month
Description
Max Error AC DC AC DC FRC-50 50 70 1%RDG+0.1%FS 0.5%RDG+0.05%FS FRC-100 100 140 1%RDG+0.1%FS 0.5%RDG+0.05%FS FRC-150 150 200 1%RDG+0.1%FS 0.5%RDG+0.05%FS FRC-200 200 300 1%RDG+0.1%FS 0.5%RDG+0.05%FS FRC-300 300 420 1%RDG+0.1%FS 0.5%RDG+0.05%FS FRC-400 400 560 1%RDG+0.1%FS 0.5%RDG+0.05%FS FRC-500 500 700 1%RDG+0.1%FS 0.5%RDG+0.05%FS Environment temperature: 0~50°C; Humidity: ≤80%RH; Resistance and capacitor value: Customize; Compose mode: Customize (Resistive or capacitive);
