• Model NO.：PHQ-5000
• Loading Method：Dynamic Load
• Display：Needle
• Control：Computer Control
• Weight：5000kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Length：2700mm
• Width：1000mm
• Height：1800mm
• Gross Weight：1700kg
• Transport Package：Packed in Fumigated Wood Box
• Specification：ISO. CE. SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：90311000
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. PHQ-5000 Loading Method Dynamic Load Display Needle Control Computer Control Weight 5000kg Power Source AC380V Oil Cylinder Position Under Length 2700mm Width 1000mm Height 1800mm Gross Weight 1700kg Transport Package Packed in Fumigated Wood Box Specification ISO. CE. SGS Trademark JP Origin Shanghai China HS Code 90311000 Production Capacity 1000 Sets/Month

Product Description

Specifications

With Rotary hydraulic cylinder dynamic balancing machine (PHQ-5000)
Large application&measure range
High initial unbalance permitted
High prec

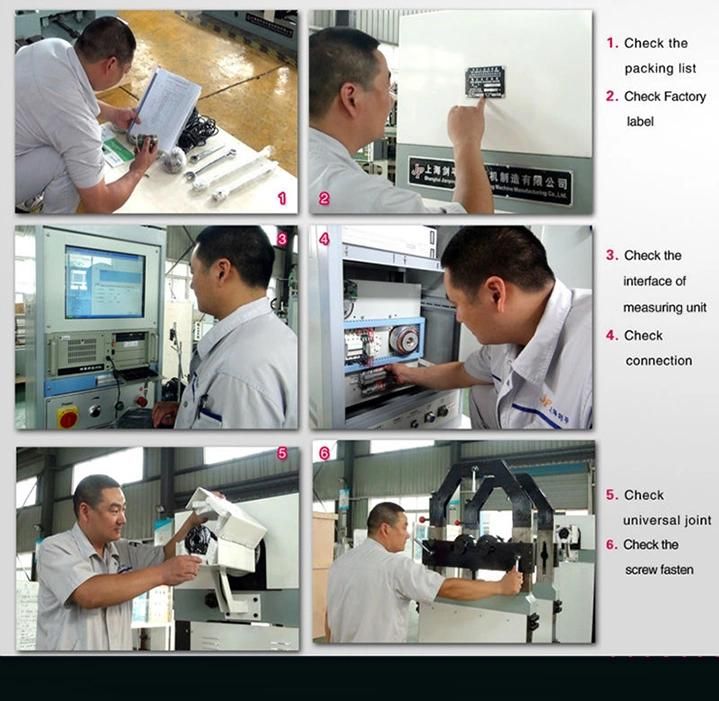

Delivery inspection



1000/2000/3000/5000kg Belt Drive Balancing Machine

Factory Outlook



Production Description

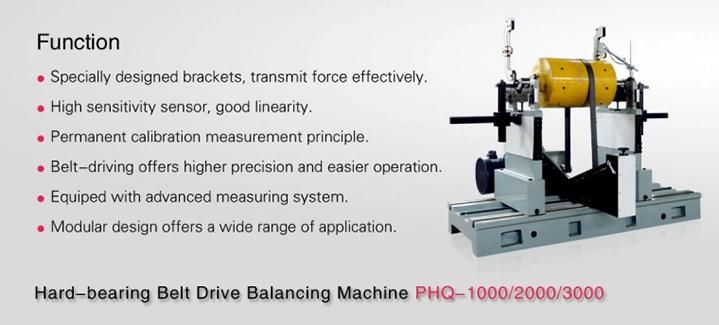

Specially designed brackets transmit mechanical force with low vibration damping
Durable and reliable sensor possesses good linearity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Belt-driving offers higher precision and easier operation
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application

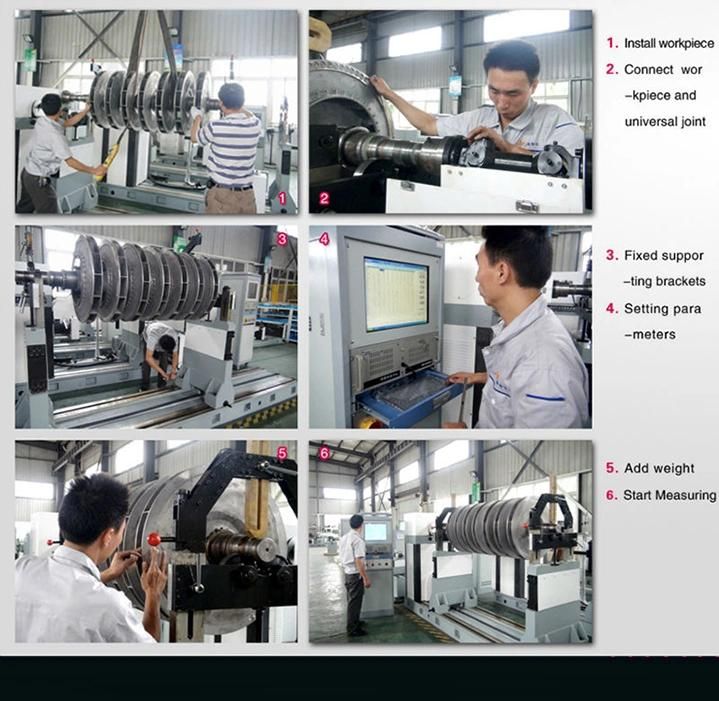

Workshop debugging



Range of Application

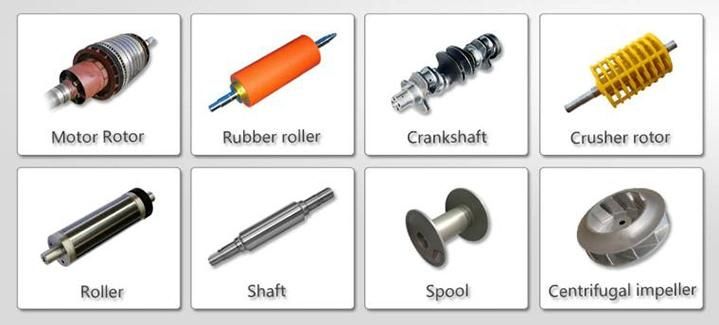

With Rotary hydraulic cylinder dynamic balancing machine (PHQ-5000) is also widely used in balancing rotatable bodies, such as kinds of good-sized and medium-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool, textile machinery, tool, spindle, etc...Driven by belt, equipped with Variable speed motor to drive. Which ensures high quality balancing and precision. Quick booting, easy operation. And high efficiency

Certificates



Special Features

The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanhua Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.

Production Parameters

Technical data at a glance	PHQ-5000
Max Mass of Workpiece (kg)	5000
Max Diameter of Workpiece (mm)	2400
Distance between Two Support Bearings (mm)	500~2800
Journal Diameter Scope of Workpiece (mm)	40~380
Diameter Scope of Driving Belt (mm)	50~1000
Rotation Speed when the Diameter of Driving Belt is 100mm (r/min)	795,1853 1)
Motor Power (kw)	15 2)
Min Achievable Residual Unbalance Amount (emar)	Min 0.5g.mm/kg
