• Model NO.：HD-E704
• Power Source：AC220V
• Standards：GB, ASTM, Hg, Gjb
• Certificate：ISO9001: 2008
• Capacity：150L
• Power：One Phase, AC220V, 50Hz
• Temperature Range：Rt ~ 200′c
• Warranty Period：One Year
• Delivery Time：15 Days After Receive The Order
• Model：HD-E704
• Inner Box Size：50* 50* 60cm
• Control Mode：Automatic Calculation Controller
• Transport Package：Resin Fiber and Export Wooden Case
• Specification：ISO9001: 2008
• Trademark：Haida
• Origin：Dongguan, China
• Production Capacity：150 Sets,Month

Basic Info.

Model NO. HD-E704 Power Source AC220V Standards GB, ASTM, Hg, Gjb Certificate ISO9001: 2008 Capacity 150L Power One Phase, AC220V, 50Hz Temperature Range Rt ~ 200′c Warranty Period One Year Delivery Time 15 Days After Receive The Order Model HD-E704 Inner Box Size 50* 50* 60cm Control Mode Automatic Calculation Controller Transport Package Resin Fiber and Export Wooden Case Specification ISO9001: 2008 Trademark Haida Origin Dongguan, China Production Capacity 150 Sets/Month

Product Description

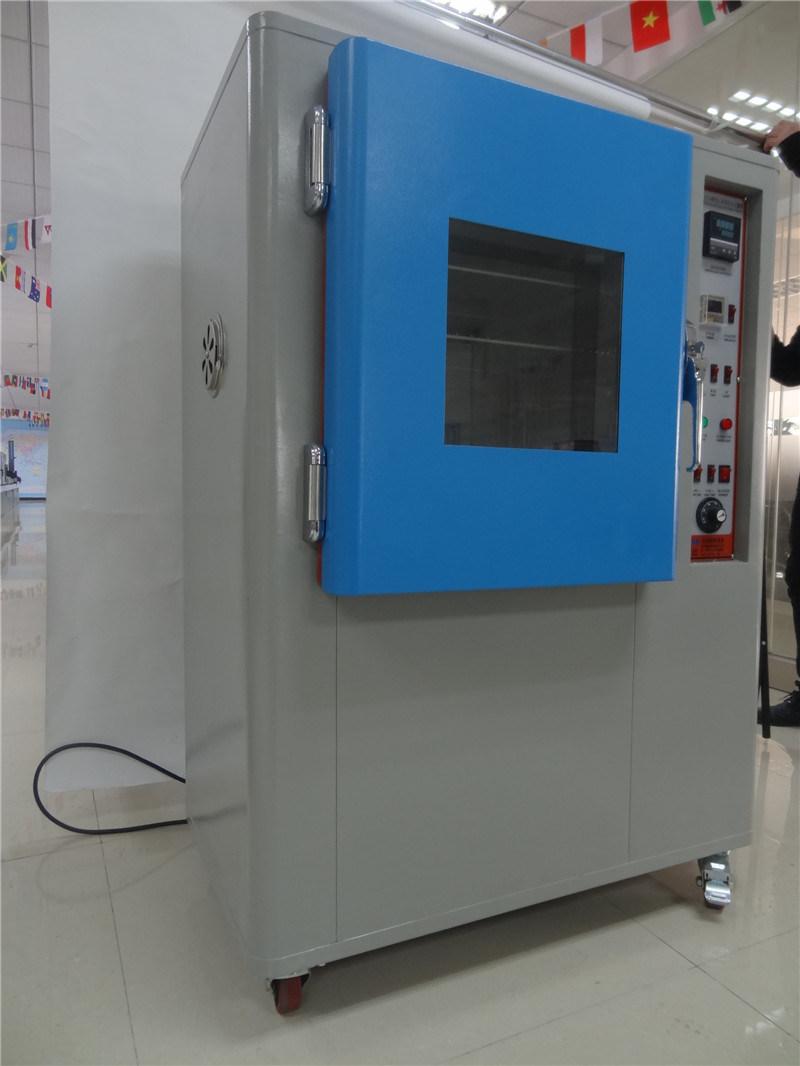

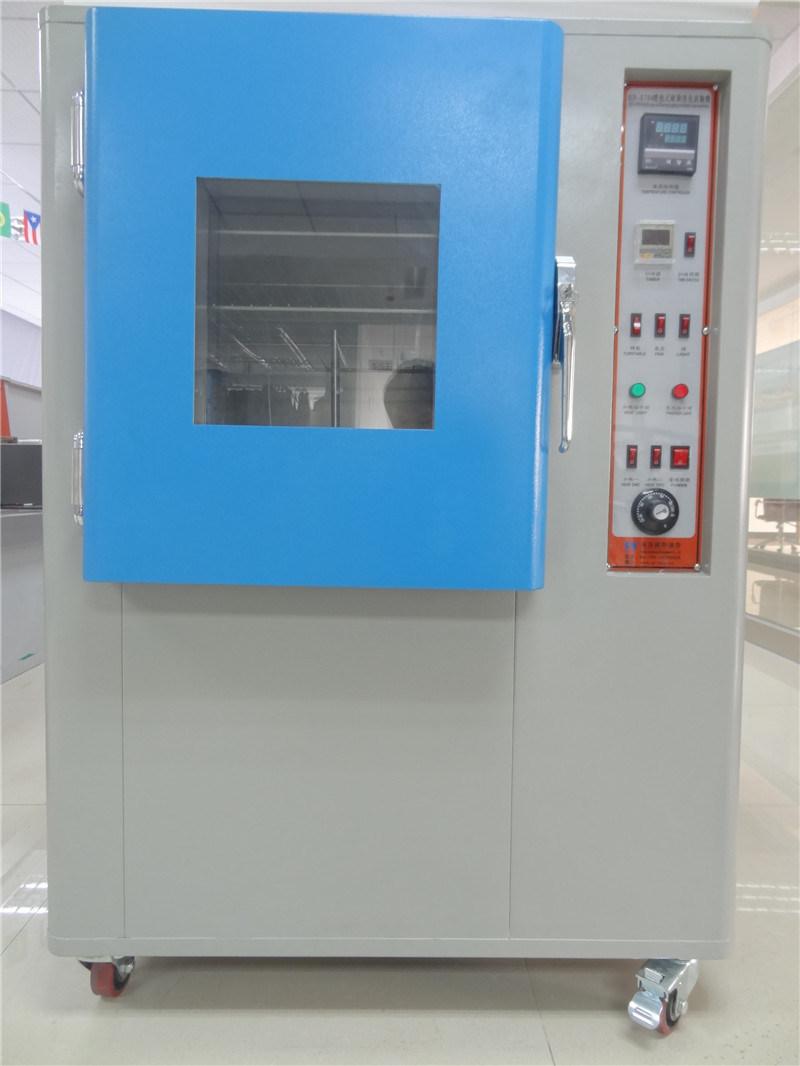

Uv Resistant Test Equipment Climatic Aging Test Chamber
Introduction:
Aging & Anti-ellowing Test Chamber can do two kinds of testing: Aging and yellowing.

Aging: The machine can promote the deterioration of sulfur rubber to calculate the tensile and elongation changing rate after and before heating. It is generally acknowledged that doing the test at 70'C for one day is theoretically equal to exposing to the ambient air for 6 months.

Anti-yellowing: The machine simulates the ambient environment to exposing under the ultraviolet radiation, the appearance change is stated that doing the test at 50'C for 9 hours is theoretically equal to exposing to the ambient air for 6 months.



Model	HD-E704
Inner Box Size	50× 50× 60cm
Temperature Range	Normal Temperature to 200 centigrade degrees
Control Mode	Automatic Calculation Controller
Temperature Display	0.1 centigrade degrees
Control Accuracy	± 3 centigrade degrees
Distribution Accuracy	± 1 centigrade degrees (at-100 centigrade degrees )
Time Memory	0-999 hours, Power Failure Memory Type, with Buzzer
Wheel Speed	45cm, 10± 2 round/ min
UV Light Source	UV300W Bulb
Standard Accessories	Shelf Board 2 pieces
Heating Method	Hot Air Circulation
Security Devices	Over-temperature power-off indicator light; Safety overload switch ammeter
Manufacturing Material	Internal Stainless Steel SUS304; External Advanced Baking Varnish
Outside Dimension (L× W× H)	114× 94× 130 cm
Weight	140kg
Power	AC220V, 15A
Standard	JIS-P8127; ASTM D1148
