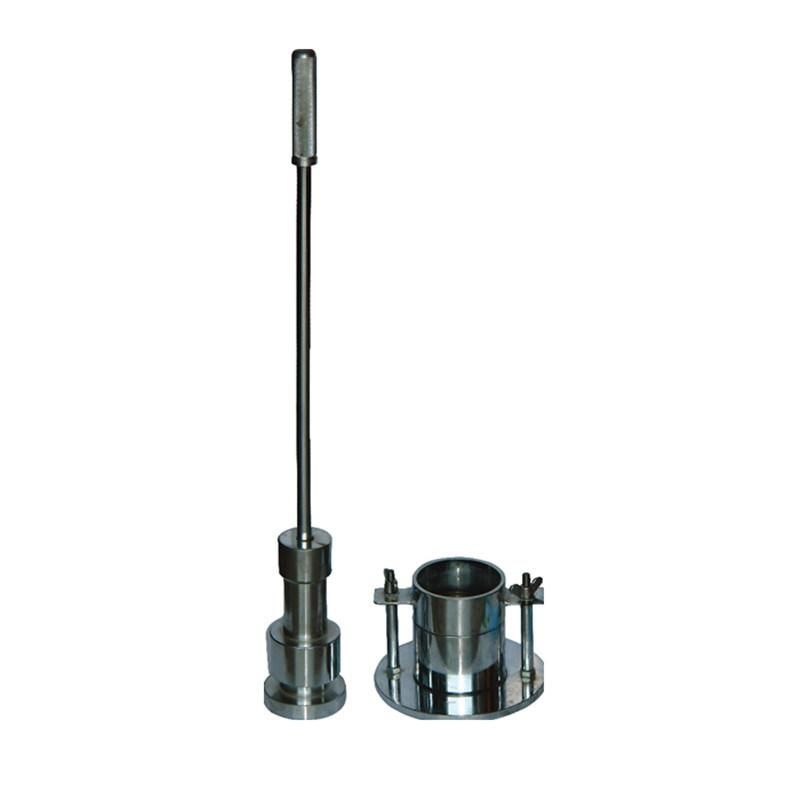

Stsmj-1 Manual Hand Marshall Compactor for Moulds Dia. 6′ ′ and 4′ ′
Shanghai Civil & Road Instrument Co., Ltd.- After-sales Service：24 Hours Online Support
- Warranty：1 Year
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：50kg
- Type：Manual Marshall Compactor
- Maxcapacity：No
Base Info
- Model NO.：STSMJ-1
- Accuracy Grade：1
- Load Way：No
- Loading Method：No
- Display：Digital
- Control：Manual Type
- Weight：50kg
- Power Source：AC220V
- Oil Cylinder Position：No
- Product Name：Stsmj-Manual Hand Marshall Compactor for Moulds
- Hammer Weight：4.536kg, 10.21kg
- Height of Fall：457.2mm
- Diameter of The Compaction Head：98.5mm, 149.5mm
- Specimen Size：101.6(Dia.)X87mm 152.4mm(Dia.)X115mm
- Transport Package：Wooden Case
- Specification：0.2CBM
- Trademark：SHTG
- Origin：China
- HS Code：9031809090
- Production Capacity：100PCS,Month
Description
Basic Info.
Model NO. STSMJ-1 Accuracy Grade 1 Load Way No Loading Method No Display Digital Control Manual Type Weight 50kg Power Source AC220V Oil Cylinder Position No Product Name Stsmj-Manual Hand Marshall Compactor for Moulds Hammer Weight 4.536kg, 10.21kg Height of Fall 457.2mm Diameter of The Compaction Head 98.5mm, 149.5mm Specimen Size 101.6(Dia.)X87mm 152.4mm(Dia.)X115mm Transport Package Wooden Case Specification 0.2CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/MonthProduct Description
STSMJ-1 Manual Hand Marshall Compactor for Moulds Dia. 6'' AND 4''Technical parameters:
| Product name | STSMJ-1 Manual Hand Marshall Compactor for Moulds Dia. 6'' AND 4'' |
| Hammer weight | 4.536Kg, 10.21kg |
| Height of fall | 457.2mm |
| Diameter of the compaction head | 98.5mm,149.5mm |
| Specimen size | 101.6(dia.) ×87mm 152.4mm (dia.) ×115mm |
