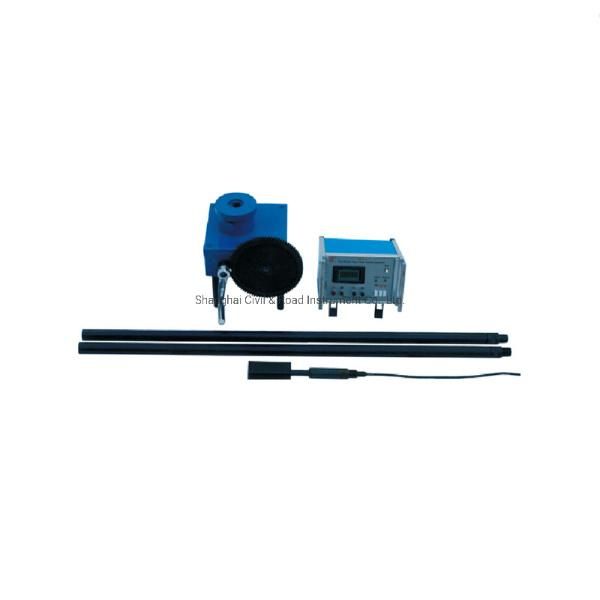

Stzsz-1 Soil Cross Plate Shear Testing Apparatus (Vane Shear Apparatus)
Shanghai Civil & Road Instrument Co., Ltd.- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：40kgs
- Type：Vane Shear Apparatus
- Maxcapacity：No
- Accuracy Grade：1
- Load Way：Digital Display
Base Info
- Model NO.：STZSZ-1
- Loading Method：No
- Display：Digital
- Control：Manual Control
- Weight：40kg
- Power Source：AC220V
- Oil Cylinder Position：No
- Product Name：Stzsz-1 Soil Cross Plate Shear Testing Apparatus
- Application：Determine The Natural Shearing Strength of The Sat
- Size of The Four-Bladed Vane：Dia75mmx150mm, Dia50mmx100 mm
- Torquemoment of The Steel Ring：80n.M
- Precision of The Torquemoment：0.55 N.M
- Guide Stem：Dia30mmx1040mm
- Size of The Machine：430mmx910mmx220mm (Lxwxh)
- Transport Package：Wooden Case
- Specification：0.12CBM
- Trademark：SHTG
- Origin：China
- HS Code：9031809090
- Production Capacity：100PCS,Month
Description
Basic Info.
Model NO. STZSZ-1 Loading Method No Display Digital Control Manual Control Weight 40kg Power Source AC220V Oil Cylinder Position No Product Name Stzsz-1 Soil Cross Plate Shear Testing Apparatus Application Determine The Natural Shearing Strength of The Sat Size of The Four-Bladed Vane Dia75mmx150mm, Dia50mmx100 mm Torquemoment of The Steel Ring 80n.M Precision of The Torquemoment 0.55 N.M Guide Stem Dia30mmx1040mm Size of The Machine 430mmx910mmx220mm (Lxwxh) Transport Package Wooden Case Specification 0.12CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/MonthProduct Description
STZSZ-1 Soil Cross Plate Shear Testing Apparatus (Vane Shear Apparatus)Application: This apparatus is used to determine the natural shearing strength of the saturated soft clay.
Strength testing results of some soft clay with high sensitivity subjects to be improper and rest on sampling.
This apparatus can obtain more precise strength indication.
It is recommended to be used together with drilling equipments as four bladed vane shear testing apparatus measures strength by drilling holes. It is able to test clay whose depth less than 30 meters.
Specification:
| Size of the four-bladed vane | Φ75mm×150mm, Φ50mm×100 mm |
| Torque moment of the steel ring | 80N.m |
| Precision of the torque moment | 0.55 N.m |
| Guide stem | Φ30mm×1040mm |
| Size of the machine | 430mm×910mm×220mm (L×W×H) |
| Weight | 40kg |
