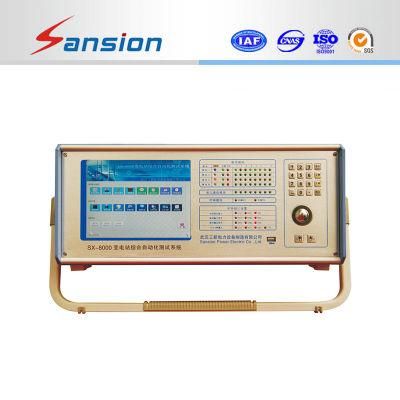

• Model NO.：SXJB
• Control：Computer Control
• Power Source：AC 110V,220V at Customized
• Oil Cylinder Position：Under
• Test Phase：Six 6 Phase
• Time Measuring Range：1ms~9999s
• Power Supply：AC220V±10%, 50Hz
• Transport Package：Plywood Case
• Specification：ISO9001 SGS
• Trademark：Sansion
• Origin：Wuhan, China
• HS Code：9030899090
• Production Capacity：100 Units

AC power source:






 Amplitude range:      6×(0-30A)
Precision:0.2%6 phase current paralleled max. output:: 180APhase current long term allowable working value: 10APower:  450VA/phase6 phase paralleled max. power: 1000VA6 phase paralleled allowable max. output duty: 10sFrequency range:0--1000Hz
Accuracy:0.001HzHarmonic order: 2-20 times
Phase position: 0--360°; Precision:0.1°DC voltage source:
 Amplitude:30A/phase
Power: 300VA/phase; Accuracy: 0.2%AC voltage source:




 Amplitude range :6 ×(0--125V);  Precision: 0.2%Line voltage range: 0--250VPhase voltage/Line voltage output power: 80VA/100VAFrequency range: 0--1000Hz; Precision: 0.001HzHarmonic order:  2-20 timesDC voltage source:


 Phase voltage output amplitude:0--±150V;   Precision:0.2%Line voltage output amplitude:0--±300V; Phase voltage/Line voltage output power:90VA/180VASwitching value terminal::





 Switching value input terminal: 8 pairsIdle contact: 1--20mA,24V inner sourcePotential switching:0--6VDC is low level
15--250VDCis high levelSwitching value output terminal: 4 pairsIdle contact, interrupting capacity:110V/2A,220V/1ATime measuring range:Range: 1ms~9999s;    Precision: 0.1msPower supply:AC220V±10%, 50Hz  10A
Warranty: One year quality guarantee after shipment.
