• Model NO.：STHG-80B
• Loading Method：No
• Display：Digital
• Control：Digital
• Weight：35kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Sthg-80b Digital Concrete Penetration Test Apparat
• Application：Determine The Setting Time of Concrete by Means of
• Max Penetration Force：1000n, Resolution:1n
• Voltage：AC220V
• Features：Digital Display, Peak Value Automatically Saved
• Transport Package：Wooden Case
• Specification：78*37*105
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STHG-80B Loading Method No Display Digital Control Digital Weight 35kg Power Source AC220V Oil Cylinder Position No Product Name Sthg-80b Digital Concrete Penetration Test Apparat Application Determine The Setting Time of Concrete by Means of Max Penetration Force 1000n, Resolution:1n Voltage AC220V Features Digital Display, Peak Value Automatically Saved Transport Package Wooden Case Specification 78*37*105 Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

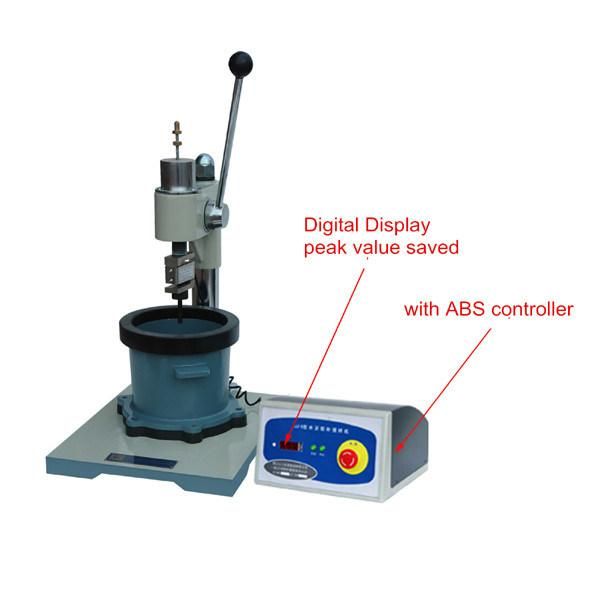

STHG-80B Concrete Penetration Resistance Apparatus Concrete penetrometer to Test, Digital Concrete Penetration Test Apparatus


I. Purpose:

The digital display concrete penetration resistance meter mainly uses the manual penetration resistance method to determine the concrete setting time by means of penetrations resistance measurements on mortar.The penetration needle moves vertically downwards through the handle, and when the penetration needle penetrates into the mortar in the sample mold, the glue generates resistance to the penetration needle, and the force passes through the pressure sensor and the electronic digital display device ( The following is referred to as a digital display). With the increase of time, the penetration resistance of mortar was increased correspondingly, and the corresponding penetration resistance was measured through different measuring points to obtain the setting time data of concrete.

II. Technical parameters

Container(Top×Bottom×Depth)	φ160mm×φ150mm× 150mm
Max penetration force	1000N
Max. penetrating depth	25 mm
Speed	2.5 mm/s
Bearing areas of needle	100mm²;50mm²;20mm²
Penetrating point(optional):	>25points
Mode of test	by digital
Resolution	1 N
Error	±10 N
Power:	220V 50Hz 100W
Features	Digital display,peak value automatically saved
Packing size	700x380x780
Net weight:	≈50kg
