ASTM D1894 Measure Cof & 180 Degree Peel Test Friction Peel Tester China Manufacturer
Pubtester Instruments Co., Ltd.- Test Function：Cof, 180 Degree Peel
- Capacity Range：5n ,10n, 30n
- Test Accuracy：0.1% Fs
- Displacement Accuracy：0.1mm
- Test Speed：0.05 ~ 500 mm,Min
- Stroke：600mm
Base Info
- Model NO.：FPT-01

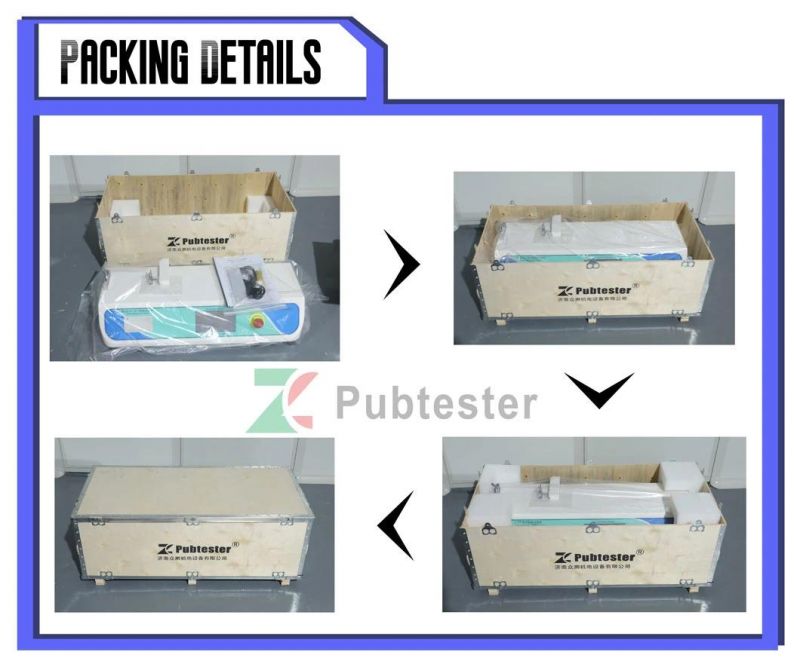

- Transport Package：Veneer Case
- Trademark：Pubtester
- Origin：Jinan, Shandong
- Production Capacity：10 Sets,Quarter
Description
Extended ApplicationHigh Temperature Test Coefficient of static and dynamic friction tests at higher temperature than room temperature Wood and Flooring Coefficient of static and dynamic friction tests of wood and flooring Photographic Films Coefficient of static and dynamic friction tests of photographic films Screen of Mobile Phone and Leather Coefficient of static and dynamic friction tests of mobile screens against the leather products Adhesives Peeling test of the adhesive products Medical Adhesives Peeling test of medical adhesives e.g. adhesive bandages and plasters Protection Films Peeling test of protection films for mobile phones or computers Magnetic Cards Peeling test of the films and magnetic cards
Note: *Additional accessories or customized sample grips may need to be purchased separately to complete the tests that cannot be completed with standard sample grips.
** Customized grips are needed for extended applications
Technical Specifications
ISO 37, GB 8808, GB/T 1040.1-2006, GB/T 1040.2-2006, GB/T 1040.3-2006, GB/T 1040.4-2006, GB/T 1040.5-2008, GB/T 4850-2002, GB/T 12914-2008, GB/T 17200, GB/T 16578.1-2008, GB/T 7122, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 17590, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, JIS P8113, QB/T 2358, QB/T 1130, YY/T 0148, YY0852
Configuration
Standard configuration: Instrument, touch screen, Sled of 200g, sled of 500g, Peel Test Fixture, professional software, communication cable.
Optional configuration: Test board (50×125mm, 40×180mm, 50×200mm), sample cutter(10#,15#,20#,25#,25.4#), standard roller, non-standard grip( with customization), micro printer, calibration weight.
Note: *Additional accessories or customized sample grips may need to be purchased separately to complete the tests that cannot be completed with standard sample grips.
** Customized grips are needed for extended applications
Technical Specifications
| Specifications | FPT-01 |
| Capacity Range | 5N ,10N, 30N |
| Test Accuracy | 0.1% FS |
| Displacement Accuracy | 0.1mm |
| Sled Mass | 200g, 500g (100g,1000g,1814g,2000 are optional) |
| Test Temperature | Room Tem.~99.9ºC |
| Drive System | Servo drive system |
| Test Speed | 0.05 ~ 500 mm/min (Adjustable) |
| Accuracy of Test Speed | ±1% |
| Stroke | 600mm |
| Number of Specimens | 1 |
| Max specimen width | 30mm(standard);50mm(optional) |
| Clamping Way | Manual |
| Power supply | AC 220V 50Hz/120V 60Hz |
| Instrument Dimension | 800mm(L)×310mm(W)×300mm(H) |
| Net weight | 50kg |
Standards
ISO 37, GB 8808, GB/T 1040.1-2006, GB/T 1040.2-2006, GB/T 1040.3-2006, GB/T 1040.4-2006, GB/T 1040.5-2008, GB/T 4850-2002, GB/T 12914-2008, GB/T 17200, GB/T 16578.1-2008, GB/T 7122, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 17590, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, JIS P8113, QB/T 2358, QB/T 1130, YY/T 0148, YY0852
Configuration
Standard configuration: Instrument, touch screen, Sled of 200g, sled of 500g, Peel Test Fixture, professional software, communication cable.
Optional configuration: Test board (50×125mm, 40×180mm, 50×200mm), sample cutter(10#,15#,20#,25#,25.4#), standard roller, non-standard grip( with customization), micro printer, calibration weight.
