Lab Instruments High Altitude Chamber
Guangdong Yuanyao Test Equipment Co., Ltd.- Type:Material Testing Machine
- Maxcapacity:<1000KN
- Accuracy Grade:0.5
- Load Way:Electronic Load
- Loading Method:Dynamic Load
- Display:Digital
Base Info
- Model NO.:YCTL-150
- Control:Computer Control
- Weight:100-500Kg
- Power Source:AC110V
- Oil Cylinder Position:Under
- Item:Altitude Chamber
- Internal Size(W*H*D):500W*600h*500d(mm)
- Exterior Size (W*H*D):1210W*1600h*1250d(mm)
- Power:3 Phase 380V 50,60Hz
- Temp Range:-70 C ~ +100c
- Humidity Range:20%Rh ~ 95%Rh
- Temp Fluctuation:+,-1 C
- Indication Resolution:0.01 C, +3% ~ +5%
- Temp Uniformity:+,-2 C
- Heat up and Cooling Time:1.5 C
- Transport Package:Strong Wooden Case
- Specification:CE, SGS, TUV certificated.
- Trademark:Yuanyao
- Origin:Dongguan, Guangdong
- HS Code:9031200000
- Production Capacity:20 Sets,Month
Description
ModelYCTL-150 YCTL-225 YCTL-408 YCTL-800 Inner size(W*H*D) 50*60*50cm 50*75*60cm 60*85*80cm 100*100*80cm Exterior size(W*H*D) 121*160*125cm 121*175*135cm 131*185*155cm 171*200*155cm Temperature range Room temperature +10ºC ~ 300ºC Performance Testing temp. range -65ºC ~ 150ºC Temp. fluctuation ±0.5ºC (Room pressure) Temp. accuracy ±2.0ºC (Room pressure) Hear up time ≤60min (+20 ~ +150 , RP, emptyload) Cool down time ≤45min (RP) ≤60min (RP) ≤90min(RP) Pressure range RP ~ 0.5 kPa Pressure control tolerance
±0.1kPa(When≤ 2kPa), ±5% (When 2kPa ~ 40kPa), ±2kPa (When ≥40 kPa)Depressurization time ≤20min ≤25min ≤30min ≤45min Working temperature Temperature: +5ºC ~ + 35ºC; Humidity: ≤90%RH; Airpressure: 86-106kPa Material Inner material SUS#304 stainless steel Exterior material Stainless steel + Power coating Insulation material PU Fiberglass wool System Air corculation system Cooling fan Heating system SUS#Stainless steel high speed heater Humidification system Surface evapration system Refrigeration system Imported Tecumseh Compressor + Fin type evaporator +air (Water) cooling system Dehumidification system ADP cortocal dew point cooling/desiccant method Controlling system SSR+PID Digital electronic indicator +SSR + PID Power (kw) 8 10 12 15 Requirements on warter supply Water temperature: ≤30ºC; Water pressure: 0.2 ~ 0.4 Mpa; Flow rate: ≥10T/h Other components Sample 2 pcs, electrical wire 1 pc (3m), pressure testing port Safety protection device Over-heat protection circuit breaker, control system overload protection, overload indicator lamp Power supply AC 3 phace 380V 60/50Hz Customization service Mon- standard or special requirements are all welcome.
By the way, we also have other models as below,
YCTL-225, inner size: 500*750*600mm(W*H*D)
YCTL-408, inner size: 600*850*800mm(W*H*D)
YCTL-800, inner size; 1000*1000*800mm(W*H*D)

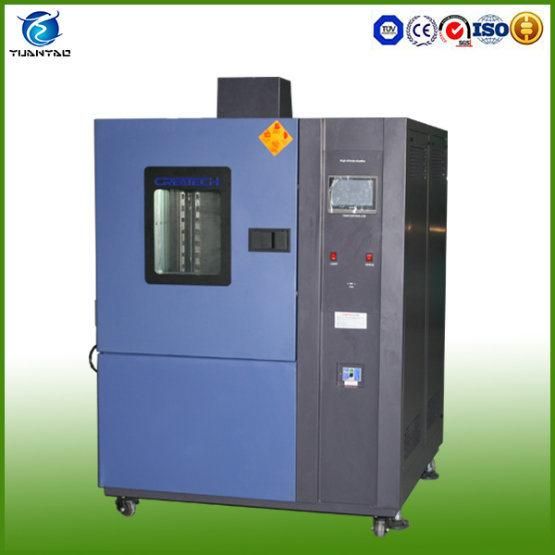

Just now we will show our real product photo for you review.
My company Profile-Dongguan Yuanyoa Electronics Technology CO., Ltd
We estabilished our own factory (Dongguan Yuanyao Electronics Technology Co., Ltd) in 2005, which has become an
importent manufacturer of environmental friendly test chambers.
Our main products include:
Temperature humidity chambers, Thermal shock test chambers, Walk-in stability test chambers, Aging chamers,
Hot air ovens, Vacuum ovens, Clean dryers, Salt spray testers, Steam aging testers, Ozone resistance test chambers,
Water test chambers, Dust proof test chamber, Vibration test machines, Drop test machines, Burning test chambers,
UV and Xenon lamp aging test chambers, Automatic dispensing machines, etc.
We have helped companies in a wide range of industry sectors including electronics components, electronics
communication, semi-comductor, electric applince and machine, spaceflight, automobile, locomotive,
telecommunication, food and pharmacy and academix institutions realize theri climate test objestives.
We will take an active role to ensure that our equipment prosoed will not only meet the specifications but also will be
made as per the budget, we also provide timely delivery.
Sincerely, we invite you to contact us and look forward to the opportunity of eastbishing a mutually benefivial, long
term business relationship with you. Thank you so much.
If you are interested in our products and want to know more, please feel free to contact me back, thanks agian.
