• Model NO.：TFG3605,TFG3610,TFG3615
• Sampling Rate：50MSa,s
• Max Frequency：Max 1500MHz
• Channel：2
• Vertical Resolution：10 Bits
• Display：4.3′ TFT LCD
• Options：Gpib, Frequency Counter
• Transport Package：Carton Package
• Specification：254*103*374 mm
• Trademark：SUIN
• Origin：China
• HS Code：8543209090
• Production Capacity：30, 000 Sets,Year

CHA TFG3605                 TFG3615            TFG3610                          FrequencyRangeSine1μHz ~ 500MHz         1μHz ~ 1500MHz      1μHz ~ 1000MHz                      Square1μHz ~ 80MHzResolution 1μHz  (carrier frequency≤80MHz)1Hz    (carrier frequency>80MHz)Accuracy ±1ppm, Frequency≥1.0kHz,18ºC to 28ºC±50ppm, Frequency<1.0kHz,Min,output 1μHzSine Output LevelRangeFreq≤500MHz-127dBm ~ +13dBm(-127dBm ~ -117dBm typical)Freq≤1000MHz-110dBm ~ +13dBm(-100dBm ~ -110dBm typical)Freq≤1500MHz-105Bm ~ +10dBm(-100dBm ~ -105dBm typical)Resolution 0.1dBAccuracyFreq≤300MHzsetting ±1dBm (output level +13dBm~-100dBm)Freq≤1500MHzsetting ±2.2dBm (output level +13dBm~-80dBm)setting ±2.7dBm (output level -80dBm~-100dBm,setting value ±2.0dBm typ.)Stationary Wave Ratio (SWR)< 1.8(output level≤0dBm)Spectral PurityHarmonic< -33dBc (output level≤4dBm,typ.)Non-Harmonic< -40dBc (output level≤4dBm, deviation CF≥5kHz)Sub-Harmonic< -40dBc (output level≤4dBm)Remain Modulating Frequency< 100Hz(BW: 0.3 ~ 3kHz, RMS < 120MHz)SquareRise/Fall Edge Time≤15nsOvershoot≤5%ModulationTypeAM,FM, FSK, PSKExternal Modulation InputVoltage Range: 5Vfull scale,input impedance:10kΩ,Frequency: DC to 10kHzFrequency SweepSweep Rate1ms ~ 800s Linear (carrier ≤80MHz)100ms ~ 800s Logrithm(carrier ≤80MHz)Step Time50ms ~ 10s  Linear (carrierundefined80MHz)Burst(Carrier Frequency≤80MHz)Burst Count1 to 10000 cyclesInterval0.1ms to 800sCHBFrequencyRange1μHz ~ 10MHzResolution1μHzAccuracy±1ppm, Frequency≥1.0kHz,18ºC to 28ºC±50ppm, Frequency<1.0kHz,Min. output 1μHzWaveformTypeSine, Square, Ramp, Pulse, Sinc, Exp, Noise, DCSquareEdge Time≤50nsDuty Cycle0.01% ~ 99.99%PulseEdge Time≤50nsPulse Width20ns ~ 20sRampSymmetry0.0% ~ 100.0%OutputAmplitude1mVpp to 10Vpp(50Ω), 2mVpp to 20Vpp(High Z)Offset±5Vpk ac+dc(50Ω), ±10Vpk ac+dc(High Z)Resolution5mVppAccuracy±(1% of setting + 10mVpp)(1kHz Sine)Flatness± 0.5dB(1MHz sine,1Vpp)General CharacteristicsPowerAC100V~240V, 50/60Hz,50VA MaxDimension & Weight254×103×374 mm,  4.2 kg

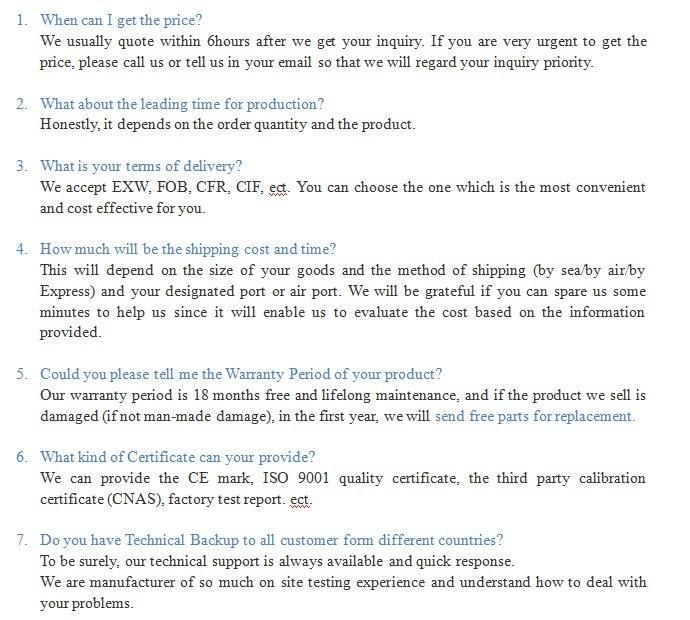

                                                                       F A Q
