Styd-3 Temperature Controlled Asphalt Ductility Tester
Shanghai Civil & Road Instrument Co., Ltd.- After-sales Service：24 Hours Online Support
- Warranty：1 Year
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Asphalt Test Apparatus
- Maxcapacity：No
Base Info
- Model NO.：STYD-3
- Accuracy Grade：1
- Load Way：No
- Loading Method：No
- Display：Digital
- Control：Digital Display
- Weight：175kg
- Power Source：AC220V
- Oil Cylinder Position：No
- Product Name：Styd-3 Temperature Controlled Ductility Tester
- Application：Determination of Ductility and The Elastic Reset O
- Temperature Control Range：0-50.0c
- Temperature Accuracy：0.1c
- Accuracy in Full Ductility：1mm
- Max. Ductility：1500mm, 2000mm
- Refrigerator Power：1.75HP
- Heating Power：1.5kw
- Dynamometric Range：0-1kn
- Suitable for Testing：3 Samples Simutaneously
- Dimension：2000X440X1320mm
- Features：Stainless Steel Inside Electrophoretic Coating out
- Transport Package：Wooden Case
- Specification：1.31CBM
- Trademark：SHTG
- Origin：China
- HS Code：9031809090
- Production Capacity：100PCS,Month
Description
Basic Info.
Model NO. STYD-3 Accuracy Grade 1 Load Way No Loading Method No Display Digital Control Digital Display Weight 175kg Power Source AC220V Oil Cylinder Position No Product Name Styd-3 Temperature Controlled Ductility Tester Application Determination of Ductility and The Elastic Reset O Temperature Control Range 0-50.0c Temperature Accuracy 0.1c Accuracy in Full Ductility 1mm Max. Ductility 1500mm, 2000mm Refrigerator Power 1.75HP Heating Power 1.5kw Dynamometric Range 0-1kn Suitable for Testing 3 Samples Simutaneously Dimension 2000X440X1320mm Features Stainless Steel Inside Electrophoretic Coating out Transport Package Wooden Case Specification 1.31CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/MonthProduct Description

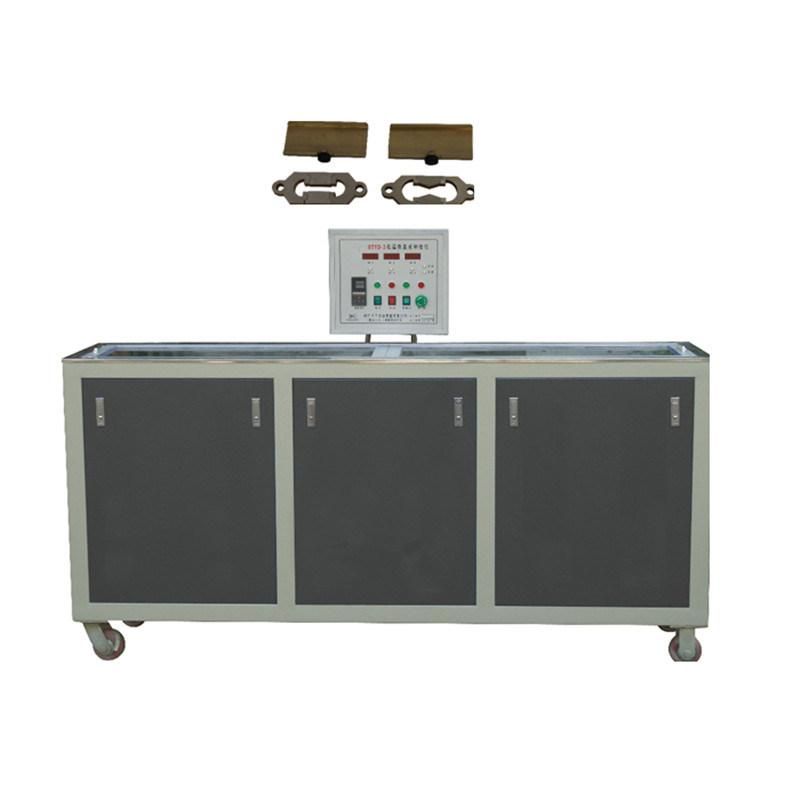

STYD-3 Temperature Controlled Ductility Tester
| Product name | STYD-3 Temperature Controlled Ductility Tester |
| Application | Determination of ductility and the elastic reset of bitumen. Stainless steel for both casing and water bath. |
| Temperature control range | 0-50.0ºC |
| Temperature accuracy | ±0.1ºC |
| Accuracy in full ductility | ±1mm |
| Max. ductility | 1500mm, 2000mm |
| Refrigerator power | 1.75HP |
| Heating power | 1.5kW |
| Dynamometric range | 0-1kN |
| Suitable for | testing 3 samples simutaneously |
| Dimension | 2000x440x1320mm |
| Features | stainless steel inside electrophoretic coating outside, ABS controller |
