• Model NO.：STYE-2000M
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Manual Control
• Weight：850
• Power Source：AC380V
• Oil Cylinder Position：Under
• Max. Testing Power：2000kn
• Measuring Range：0-2000kn
• Testing Power Precision：Grade1
• Size of The Bearing Plate：300X250mm
• Max. Distance Between The up and Down Be：310mm
• Max. Piston Stroke：90mm
• Max. Piston Lift Speed：50mm,Min
• Piston Free Back Speed：20mm,Min
• Net Weight：650kgs
• Noise：Below 80dB
• Main Frame：600X600X2000mm
• Transport Package：Wooden Case
• Specification：1050x650x860mm
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STYE-2000M Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Manual Control Weight 850 Power Source AC380V Oil Cylinder Position Under Max. Testing Power 2000kn Measuring Range 0-2000kn Testing Power Precision Grade1 Size of The Bearing Plate 300X250mm Max. Distance Between The up and Down Be 310mm Max. Piston Stroke 90mm Max. Piston Lift Speed 50mm/Min Piston Free Back Speed 20mm/Min Net Weight 650kgs Noise Below 80dB Main Frame 600X600X2000mm Transport Package Wooden Case Specification 1050x650x860mm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

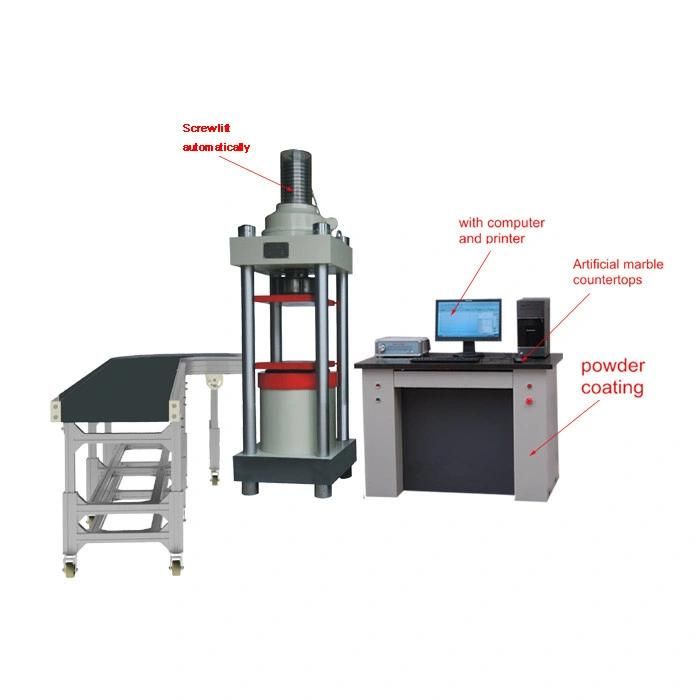

STYE-2000M Full Automatic Compression Testing Machine(CTM)

Use
Computer controlled hydraulic servo compression testing machine is mainly used to test compression strength of cement, concrete, rocks, brick. Space adjusting and  test processes could be controlled by the software and the test result could be transferred to the software in the computer for further analysis. It is the most advanced series in hydraulic compression testing machines. It is widely used in different steel works, engineering areas, quality control department, Universitiesand institutes as well as other areas and works.

Fully computer controlled testing process.
Stable and reliable high intensity structure load frame.
Real time display software will provide accurate track of testing process.
Powerful multifunctional control software will provide more testing methods and standards.Overload protection will secure operators.
Safe and reliable software interface and control. It is very easy to prevent mistake operation duringthe test stage which will cause damage to the testing machine.

Specification:

Model	STYE-2000M
Max. testing power	2000kN
Measuring range	0-2000kN
Relative indication error	±1%
Testing power Precision	grade1
Size of the bearing plate	300×250mm
Max. distance between the up and down bearing plates	310mm
Max. piston stroke	90mm
Rated pressure of the hydraulic pump	40MPa
Power	AC220V±10% or AC380±10%
Main frame	600×600×2000mm
Max. piston lift speed	50mm/min
Piston free back speed	20mm/min
Net weight	650KGS
Noise	≤80Db
