• Model NO.：STYE-3000B
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Automatic Digital
• Weight：850
• Power Source：AC380V
• Oil Cylinder Position：Under
• Max. Testing Power：3000kn
• Measuring Range：0-3000kn
• Testing Power Precision：Grade1
• Max. Distance Between The up and Down Be：380mm
• Max. Piston Stroke：90mm
• Max. Piston Lift Speed：50mm,Min
• Piston Free Back Speed：20mm,Min
• Diameter of The Piston：Dia310mm
• Rated Pressure of The Hydraulic Pump：40MPa
• Power：AC220V or AC380V
• Outside Size：1120X620X2000mm
• Transport Package：Wooden Case
• Specification：1150x650x1760mm
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STYE-3000B Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Automatic Digital Weight 850 Power Source AC380V Oil Cylinder Position Under Max. Testing Power 3000kn Measuring Range 0-3000kn Testing Power Precision Grade1 Max. Distance Between The up and Down Be 380mm Max. Piston Stroke 90mm Max. Piston Lift Speed 50mm/Min Piston Free Back Speed 20mm/Min Diameter of The Piston Dia310mm Rated Pressure of The Hydraulic Pump 40MPa Power AC220V or AC380V Outside Size 1120X620X2000mm Transport Package Wooden Case Specification 1150x650x1760mm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

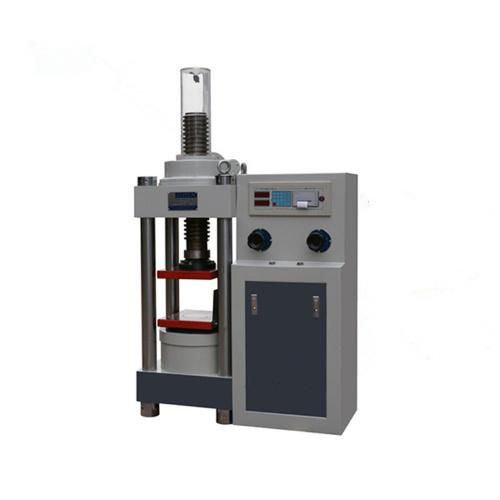

STYE-3000B Digital Display Hydraulic Compression Testing Machine (CTM)

STANDARD: EN 12390-4 ASTM C39, AASHTO T22
Use:
Use:
STYE-3000 Digital Display Hydraulic Compression Testing Machine is designed to conduct compression and crushing strength tests on Containers, Concrete cubes and cylinders, hollow blocks and various other materials in accordance with International standard. The machine is electro-hydraulically operated. The Control Panel comprises of Hydraulic Power Pack, Digital Readout System, Operating Switches, Load Control Valves, Output Print-out of Test Data.

Feature:

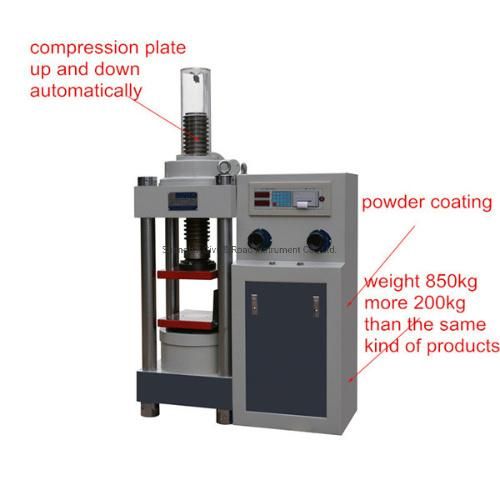

Screw pole automatic movingEfficient hydraulic power packsEconomic machines ideal for site useDesigned to meet the need for a simple, economic  and reliable means of testing concrete.The dimensions of the frame allow the testing of cylinders up to320 mm long x 160 mm diameter, and cubes 200mm,150mm or 100 mm square, 50 mm/2 in. square mortar cubes, 40 x 40 x 160 mm mortar and any arbitrary size.
Digital readout is a microprocessor controlled instrument which is fitted as standard to all digital machines in the range.
Calibrated accuracy and repeatability is better than 1% over the upper 90% of the working range.


Specification:

Model	STYE-3000B
Max. testing power	3000kN
Measuring range	0-3000kN
Relative indication error	±1%
Max. distance	between the up and down
bearing plate	380mm
Max. piston stroke	90mm
Diameter of the piston	Dia 310mm
Rated pressure of the hydraulic pump	40MPa
Power	AC220V±10% or AC380±10%
Outside size	1120×620×2000mm
Max. piston lift speed	50mm/min
Piston free back speed	20mm/min
Net weight	850KGS
Noise	≤80Db
