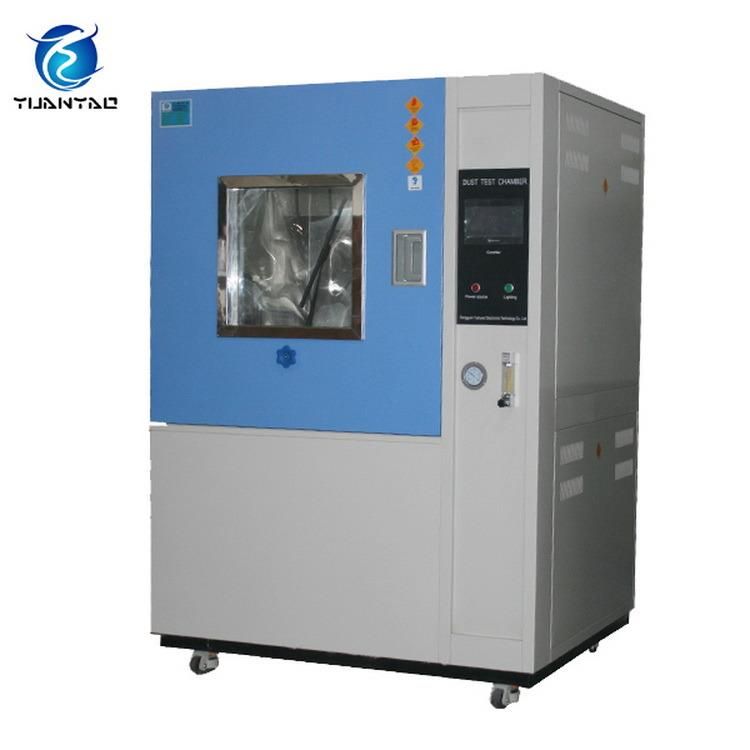

IEC60529 IP5X IP6X Electronic Car Shell Dust Proof Test Chamber
Guangdong Yuanyao Test Equipment Co., Ltd.- After-sales Service：Available
- Power Supply：AC 3 Phase 380V 50 Hz
- Certification：CE
- Warranty：1 Year
- Internal Size(W*H*D)：1000*1000*1000mm
- Exterior Chamber Size(W*H*D)：1500*1900*1400mm
Base Info
- Model NO.：YSDT-1000-C
- Temp. Range：Rt+10c~+50c
- Dust Dosage：2~4kg,M3
- Dust Reduction Method：Free Dust Falling
- Vacuum Degree：0~10kpa, Adjustable
- Controller：Touch Screen Programmable
- Vacuum System：Equip with Pressure Gauge, Air Filtration, etc.
- Time Set：0~999h Adjustable
- Dust Heating system：Stainless Steel Heater
- Inner Chamber Material：SUS#304 Stainless Steel Plate
- External Chamber Material：Cold Rolled Sheet with Powder Coating
- Customization：Available
- Test Standard：IEC60529
- Door：Single Door
- Transport Package：Strong Plywood Case
- Specification：Standard type
- Trademark：Yuanyao
- Origin：Dongguan, China(Mainland)
- HS Code：9031200000
- Production Capacity：20sets,Week
Description
AC 1Ψ 220V 60/50Hz 4KW
In addition to IEC60529 IP5X IP6X electronic car shell dust proof test chamber , we are also manufacturing:
Precision Oven Tester, Triple Type Temp. & Humidity Chamber, Temp. & Humidity Control Host, Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humidity & Vibration Combined Test Chamber, Aging Oven Tester, Rain / Spray Test Chamber, Burn-in test equipment, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Other styles / size with different configurations are available upon request. Welcome to enquire and purchase! Thanks your time !
