Fully Automatic Bitumen Penetrometer (CXS-2801)

SHAOXING KARE INSTRUMENT EQUIPMENT CO., LTD.
  • Standard：ASTM D5
  • Needle Penetration Weight：2.5g±0.05g
  • Acupuncture Weight Fixture：47.5g±0.05g
  • The Poise Weight：50g±0.05g
  • The Scope of Testing：0-70ºC
  • The Scope of Time：0-99s

Base Info

  • Model NO.：CXS-2801
  • Transport Package：Wooden Case
  • Origin：Zhejiang
  • HS Code：9024800000
  • Production Capacity：50 Sets,Month

Description

Temperature settingAircraft equipped with 25ºCtemperature parameters, users can arbitrarily setTime setting5s aircraft equipped with time parameters, the user can arbitrarily setThe scope of testing0-70ºC                Accuracy: 0.1ºCThe scope of time0-99s                   Accuracy: 0.1sThe scope of needle accuracy:0-50mm        Accuracy: 0.1mmNeedle penetration weight2.5g±0.05gAcupuncture weight fixture47.5g±0.05gThe poise weight50g±0.05g

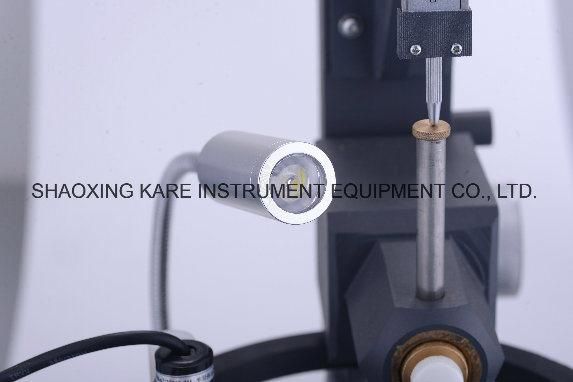

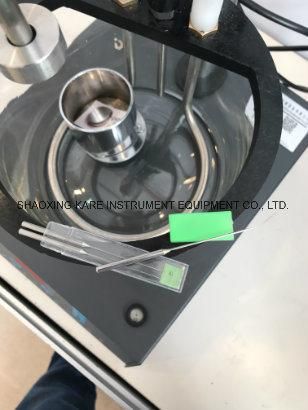

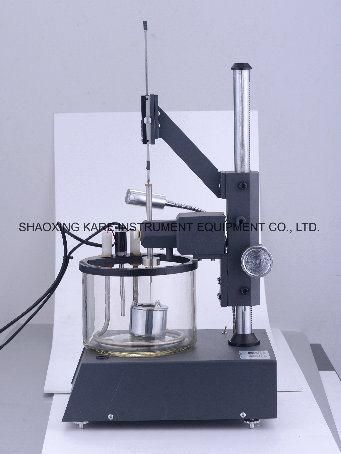

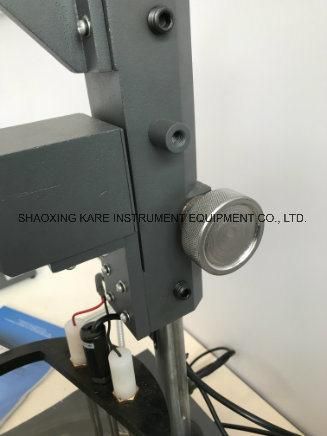

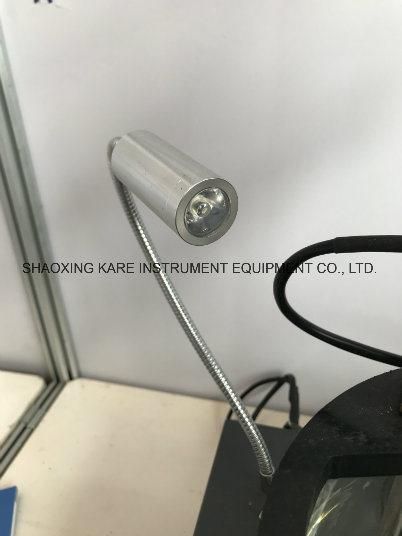

Fully Automatic Bitumen Penetrometer (CXS-2801)

Fully Automatic Bitumen Penetrometer (CXS-2801)
Fully Automatic Bitumen Penetrometer (CXS-2801)
Fully Automatic Bitumen Penetrometer (CXS-2801)
Fully Automatic Bitumen Penetrometer (CXS-2801)
