• Model NO.：GD-508
• Packing Size：75*64*64cm
• Gross Weight：100kg
• Warranty Period：1 Year
• Delivery Time：10 Working Days(If Urgent, We Can Push)
• Transport Package：Wooden Case for Gd-508
• Trademark：GOLD
• Origin：Chongqing, China
• Production Capacity：100 Sets, Month

Basic Info.

Model NO. GD-508 Packing Size 75*64*64cm Gross Weight 100kg Warranty Period 1 Year Delivery Time 10 Working Days(If Urgent, We Can Push) Transport Package Wooden Case for Gd-508 Trademark GOLD Origin Chongqing, China Production Capacity 100 Sets/ Month

Product Description

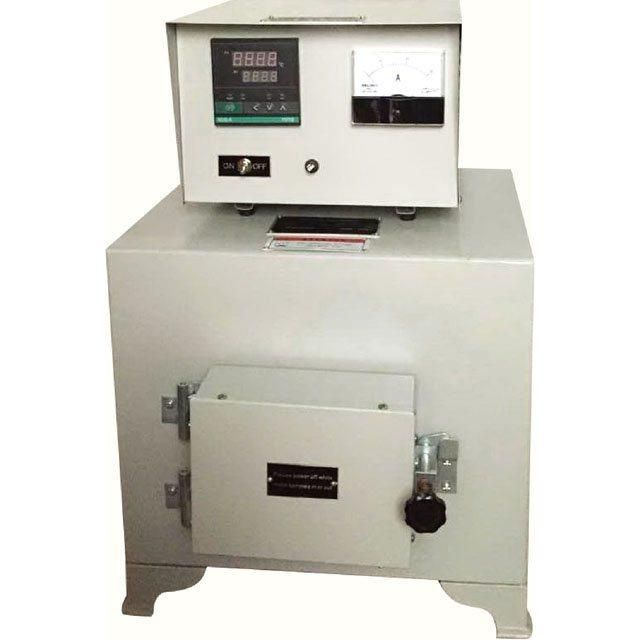

GD-508 ASTM D482 Ash Content Tester /Petroleum Products Ash Content Testing Equipment



Introduction:

ASTM D482 Ash Content Tester is suitable to determine ash content in the petroleum products as per
GB/T508.

ASTM D482 Ash Content Tester could not be used to determine ash content in the petroleum products
containing ash-forming additives (including additives containing certain phosphorus compounds), lubricating
oils containing lead, and used engine crankcase oils.


The method summary of ash content test:
Take ashless filter paper as ignition core. Ignite the sample in the crucible to make it burning to ash and carbon
residue. Heat the carbon residue at 775ºC in the high temperature furnace to make it convert to ash. Then cool
down and weigh the mass.

Features:
1. ASTM D482 Ash Content Tester is composed of a box-type heating furnace, a temperature control stand
and an electric heating plate. It is small size and needs less land.

2. The box-type furnace adopts all-in-one structure. Special fire-resistant material and heating components.
The heating time is short and it has a long lifetime.

3. An adjustable LED temperature controller is equipped in the control stand. The overshoot is small and
temperature control is stable.

4. The size of heating plate is Dimension 85mm. Small size and good durability.


Specifications:

    Box-type heating furnace

Power supply	AC220V±10%, 50 Hz
Rated power	2.5 kW
Rated temperature	1000ºC
Temperature rising time for empty furnace	≤50 min
Power consumption for empty furnace	≤800W
Heat savings	≤5kW.h
Furnace temperature uniformity	≤15ºC
ThermºCouple	WRN-010
Size of furnace chamber	200mm*120mm*80mm
Dimension	575mm*3850mm*480mm

• Temperature control stand

Rated controllable power	5000W
Power supply	AC(220±10%)V, 50Hz
Maximum control temperature	1200ºC
Temperature controller	DTW2001
ThermºCouple	WRN-010
Dimension	500mm*300mm*235mm

• Electric heating plat

Rated power	1500W
Power supply	AC (220±10%) V, 50Hz
Rated temperature	400ºC
Heating power	(1~6)grades, continuously adjustable
Diameter of heating plate	Φ85mm
Dimension	280mm*250mm*90mm

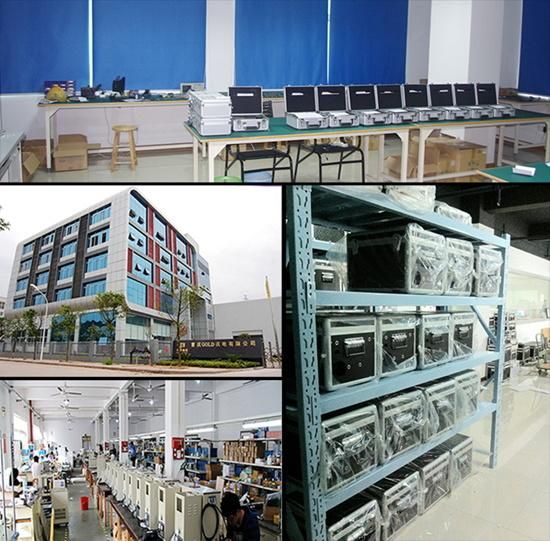

Company  Information:

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.

We mainly design and manufacture the petroleum testing instrument
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of petroleum testing instrument .
