Economical Micro Vickers Hardness Tester for Glass Steel Metal Coating Manual Type HV-30
DongGuan HongTuo Instruments Co., Ltd.- Warranty：1 year
- Type：Vickers Hardness Tester
- Vickers hardness scale：HV1,HV3,HV5,HV10,HV20,HV30
- Load control：Automatic (load,hold,unload)
- Hardness measurement range：(5-3000)HV
- Test force retention time (s)：1~99
Base Info
- Model NO.：HV-30
- After-sale Customer Service：Yes
- Testing Before Delivery：Yes
- Transport Package：Standard Exporting Wooden Package
- Trademark：DahoMeter
- Origin：Dongguan, China
- Production Capacity：300 Sets,Month
Description
Basic Info.
Model NO. HV-30 After-sale Customer Service Yes Testing Before Delivery Yes Transport Package Standard Exporting Wooden Package Trademark DahoMeter Origin Dongguan, China Production Capacity 300 Sets/MonthProduct Description

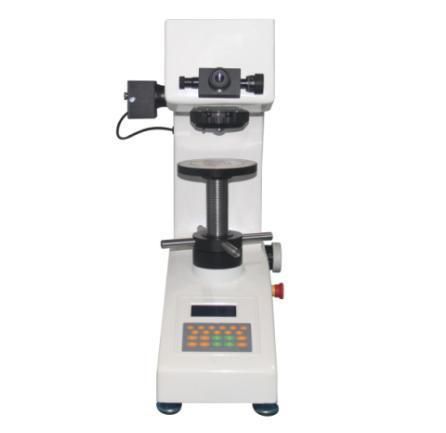

Economical Micro Vickers Hardness Tester for Glass Steel Metal Coating Manual Type HV-30
The manual turret type Vickers tester can meet the basic Vickers hardness test requirements.the upgraded control system can provide more measurement data, and the control is more comprehensive and accurate.
Main Function and Feature:
1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope, with adjustable brightness, comfortable vision, and not easy to fatigue after long-term operation;
2. The industrial display screen can directly display the hardness value, convert the hardness, test method, test force, holding time, measurement times, and the test process is intuitive and clear;
3. The cast aluminum shell is formed at one time, the structure is stable and does not deform, the car paint grade is high, the scratch resistance is strong, and it is still bright as new after years of use;
4. Our company has the ability to research, develop, design, produce and process by ourselves, and provide parts replacement and maintenance upgrade services for our machines for life;
Main purpose and scope of application:
1. Steel, non-ferrous metals, metal foil, cemented carbide, metal sheet, microstructure, carbonization;
2. Carburizing, nitriding and decarburizing layer, surface hardening layer, electroplating layer, coating, heat treatment;
3. Glass, wafers, ceramic materials;
Technical Parameters
| Program | Parameter data |
| Vickers hardness scale | HV1,HV3,HV5,HV10,HV20,HV30 |
| Display | The automatic reading menu displays 5-digit hardness value; 4-digit diagonal length (D1, D2) test force, hold time, test times, return |
| Test force (Kgf) | 1.0Kgf(9.8N),3.0Kgf(29.4N),5.0Kgf(49.0N), 10Kgf(98.0N),20Kgf(196N),30Kgf(294N) |
| Load control | Automatic (load/hold/unload) |
| Test force retention time (s) | 1~99 |
| Optical system | Objective lens: 10× 20×; Eyepiece: 10× Total magnification: 100× 200× Measuring range: 800μm 400μm Resolution: 1μm 0.5μm |
| Hardness measurement range | (5-3000)HV |
| XY test bench (optional) | Size (mm): 100×100 Stroke range (mm): 25×25 Minimum reading (mm): 0.01 |
| Maximum height of specimen (mm) | 165 |
| Maximum width of test piece (mm) | 130 Distance from the center line of the indenter to the machine wall |
| Data output | Reserved built-in micro printer interface, (RS232 serial interface), optional installation |
| Executive standard | GB/T4340.2 Chinese Standard JJG151 Inspection Rule |
| Power supply | AC220V/50HZ |
| Dimension(mm) | 585×200×630 |
| Weight(kg) | 42 |
Standard configuration
| Main host | 1 set |
| Weights | 3 pcs |
| Large and medium "V" type test bench | 1 each |
| Level adjustment screw | 4 pcs |
| power cable | 1 pcs |
| 10X micrometer eyepiece | 1 pcs |
| Vickers hardness block | 2 pcs |
| Spare fuse 2A | 2 pcs |
| Product certification | 1 pcs |
| Instruction Manual | 1 pcs |
Can choose hardness tester measurement software to eliminate human error, computer operation, improve efficiency, and more precise accuracy.
