• Model NO.：HV-10Z
• After-sale Customer Service：Yes
• Testing Before Delivery：Yes
• Transport Package：Standard Exporting Wooden Package
• Trademark：DahoMeter
• Origin：Dongguan, China
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. HV-10Z After-sale Customer Service Yes Testing Before Delivery Yes Transport Package Standard Exporting Wooden Package Trademark DahoMeter Origin Dongguan, China Production Capacity 300 Sets/Month

Product Description

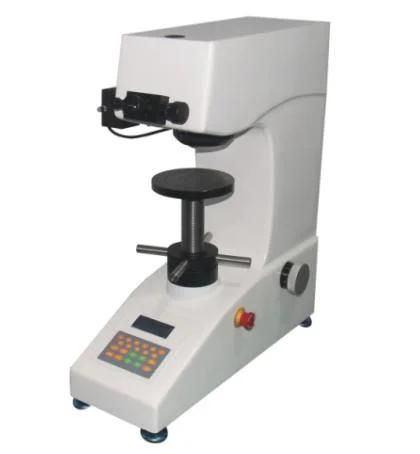

Automatic Turret Digital Micro Vickers Hardness Testing Machine Vickers Hardness Tester HV-10Z

 It is a high and new technology product of optical-mechanical integration. The hardness tester has novel shape, good reliability, operability and repeatability. It is an ideal product for vickers hardness testing.This machine uses computer software programming, optical measurement system.Through the soft key input, can choose vickers and Knop hardness measurement, can adjust the strength of the measurement light source, can choose the retention time, can display the test method and test force on the LCD screen, through the panel input measurement indentation diagonal length, the screen directly read hardness value, easy to look up the table cumbersome.Easy to use, high measurement accuracy.

Function and characteristic:
1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope, with adjustable brightness, comfortable vision, and not easy to fatigue after long-term operation;
2. The industrial display screen can directly display the hardness value, convert the hardness, test method, test force, holding time, measurement times, and the test process is intuitive and clear;
3. The cast aluminum shell is formed at one time, the structure is stable and does not deform, the car paint grade is high, the scratch resistance is strong, and it is still bright as new after years of use;
4. Our company has the ability to research, develop, design, produce and process by ourselves, and provide parts replacement and maintenance upgrade services for our machines for life;
5. HV-10Z model can realize: the position switch of observation-test-measurement is completed by automatic turret

Main Use and Application Scope:

1, iron and steel, non-ferrous metals, metal foil, hard alloy, metal sheet, microstructure
2, carburizing, nitriding and decarburizing layer, surface hardening layer, electroplating layer, coating
3, glass, wafer, ceramic materials, carbonization;

Technical Parameters:

Description	Data
Vickers hardness scale	HV0.3,HV0.5,HV1.0,HV3.0 ,HV5.0,HV10.0
Display	Automatic reading menu displays 5-digit hardness value;4-digit diagonal length(D1,D2)test force,holding time,Test times,go back
Test force (Kgf)	0.3 ,0.5 ,1.0,3.0,5.0,10.0
Load control	Automatic(Load/hold/unload)
Holding time of test force(s)	1~99
Optical system	objective: 10× 20×;       eyepiece: 10× Overall magnification: 100× 200× Measuring range: 800μm 400μm resolution ratio: 1μm  0.5μm
Hardness measurement range	(5-3000)HV
XY test board(Optional)	dimension(mm):100×100 range(mm):25×25 lowest reading(mm):0.01
Specimen Maximum height(mm)	165
Specimen Maximum  width(mm)	130(Distance from the center line of the head to the wall)
Data output	Reserved built-in micro printer interface (RS232 serial interface), optional installation
Executive standard	GB/T4340.2national standard(GB/T4340.2 Chinese Standard), JJG151verification regulation ( JJG151 Inspection Rule )
Supply voltage	AC220V/50HZ
Outbox dimension(mm)	585×200×630
Weight(kg)	42

Standard Accessories

Host	1 set
Weights	3 pcs
Big,Middle"V"test board	One each
Horizontal adjusting screw	4 pcs
Power line	1 pcs
10Xmicrometer ocular	1 pcs
Hardness block	2 pcs
Spare fuses 2A	2 set
Certificate of qualification	1set
Instruction Manual	1 set

Remark:
Optional measurement software to eliminate human error, computer operation, improve efficiency, and more precise accuracy.
