• Model NO.：IIJ-II
• Power Source：AC220V
• Oil Cylinder Position：Top
• Transport Package：in Standard Strong Wooden Case
• Specification：CE, SGS, CCC
• Trademark：ZHONGENEG
• Origin：China
• HS Code：8421299090
• Production Capacity：300 Sets Per Month

Basic Info.

Model NO. IIJ-II Power Source AC220V Oil Cylinder Position Top Transport Package in Standard Strong Wooden Case Specification CE, SGS, CCC Trademark ZHONGENEG Origin China HS Code 8421299090 Production Capacity 300 Sets Per Month

Product Description

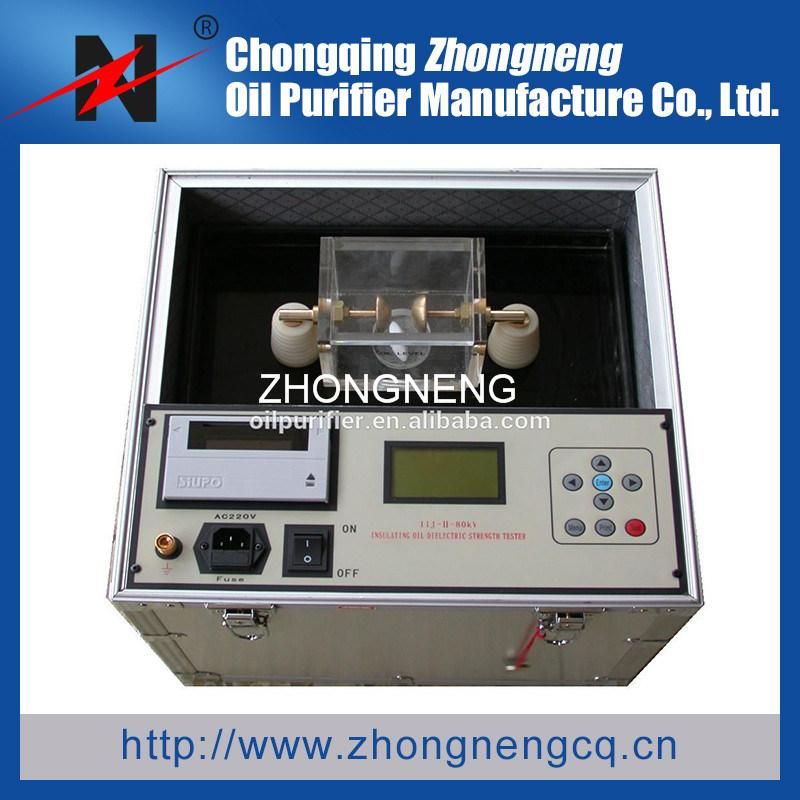

Fully Automatic Dielectric Strength Transformer Oil Tester

Application:
IIJ automatic tester is designed by IEC156 to test dielectric strength of insulating oil. Adopt industrial single Plate integrated circuit, new model I/O connection, with unique inspection and anti-jamming technology which largely improve its reliability & functionality.


Technology and parameter data:
1. Power supply: AC220V +-10% , 50 HZ
2. Output voltage: 0 to 60KV, 80KV, 100KV (100KV should be special designed)
3. Capacity: 1.6KVA, 2.0KVA
4. Speed of Voltage increase: about 2 kva/s
5. Voltage inspection accuracy: 3%
6. Dielectric strength sensitivity : less than 2KV
7. Wave form distortion : less than 3%
8. Time of dielectric strength: less than 10ms
9. Working Environment: Temperature: 0ºC~ 40ºC, humidity: max relative humidity 85%
10.Storage environment: temperature:-20ºC~ 60ºC, humidity: max relative humidity 75%
11. Work height: 1500m(If over 1500M, It can be customized)

other supply:
Vacuum Transformer Oil Purifier,
Switch oil filtration,
Turbine oil purifier,
 Hydraulic oil purifier,
Diesel oil purifier,
Gear oil purifier,
Fuel oil purifier,
Fire-resistant oil purifier,
light oil purifier,
Insulating oil purifier,
 Lube oil Purifier
