Corrugated Paperboard Laboratory Concora Medium Fluter for Cmt Testing Equipment
Hangzhou Pnshar Technology Co., Ltd.- Type:Compression Testing Machine
- Weight:0-100Kg
- Power Source:AC220V
- Standards:ISO
- Structure:Veritical Type
- Transport Package:Wooden Case, Free-Fumigation
Base Info
- Model NO.:PN-MF
- Specification:ISO
- Trademark:PNSHAR
- Origin:Hangzhou, Zhejiang
- HS Code:90248000
- Production Capacity:300sets,Year
Description
Basic Info.
Model NO. PN-MF Specification ISO Trademark PNSHAR Origin Hangzhou, Zhejiang HS Code 90248000 Production Capacity 300sets/YearProduct Description
Corrugated paperboard Laboratory Concora Medium Fluter For CMT testing equipmentFeatures:
1. Simple and easy operation;
2. Accurate temperature control using PID;
3. Fine machining medium flutting wheel, good flute.
1. Description:

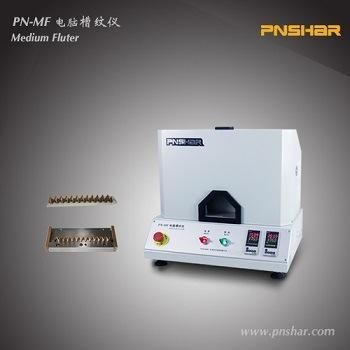

PN-MF Medium Fluter is designed to flutes the paper samples by means of two fluting rolls. Afterwards, the samples are tested in the crush tester for evaluation of the CMT (Corrugating Medium Test) and CCT (Corrugated Crush Test) according to standards: QB/T 1061 and ISO7263.
2. Specification:
ITEM | SPECIFICATION |
Power supply: | AC220V±10%,10A, 50Hz; |
Radius of teeth at peak: | 1.50+/-0.1mm; |
Radius of teeth at base: | 2.00+/-0.1mm; |
Depth of teeth: | 4.75+/-0.05mm; |
Working speed: | 4.5r/min; |
Temperature resolution: | 1ºC; |
Working temperature can be adjusted: | Room temperature to 200ºC; |
Working pressure: | adjustable in (49-108)N; |
Standard working temperature: | (175±8)ºC. |
Dimension: | 530 × 400 ×474mm |
Net weight: | about 80kg. |
Standard equipment prepared : | "A" Flute; |
