• Model NO.：GDYD-A
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Dielectric Test：Withstand Voltage Test
• Input voltage：AC 220V or 380V
• Output voltage of control unit：AC 0-250V or 0-430V
• Output current of control unit：0-5,10,15,50A(customized)
• Output power(Capacity)：0-3,5,10,15,20kVA(customized)
• Output voltage of HV unit：0-50,100,150,200kV(customized)
• Output current of HV unit：0-50,100,150,200,500,1000,2000mA(customized)
• Timing：0-9999s
• Environmental temperature：-20-50 centigrade
• Voltage accuracy：1.5% +,- 1digit(F.S)
• Transport Package：Wooden Case
• Specification：SGS, ISO
• Trademark：HV Hipot
• Origin：China
• HS Code：9030849000
• Production Capacity：1000PCS,Year

Basic Info.

Model NO. GDYD-A Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position No Dielectric Test Withstand Voltage Test Input voltage AC 220V or 380V Output voltage of control unit AC 0-250V or 0-430V Output current of control unit 0-5/10/15/50A(customized) Output power(Capacity) 0-3/5/10/15/20kVA(customized) Output voltage of HV unit 0-50/100/150/200kV(customized) Output current of HV unit 0-50/100/150/200/500/1000/2000mA(customized) Timing 0-9999s Environmental temperature -20-50 centigrade Voltage accuracy 1.5% +/- 1digit(F.S) Transport Package Wooden Case Specification SGS, ISO Trademark HV Hipot Origin China HS Code 9030849000 Production Capacity 1000PCS/Year

Product Description

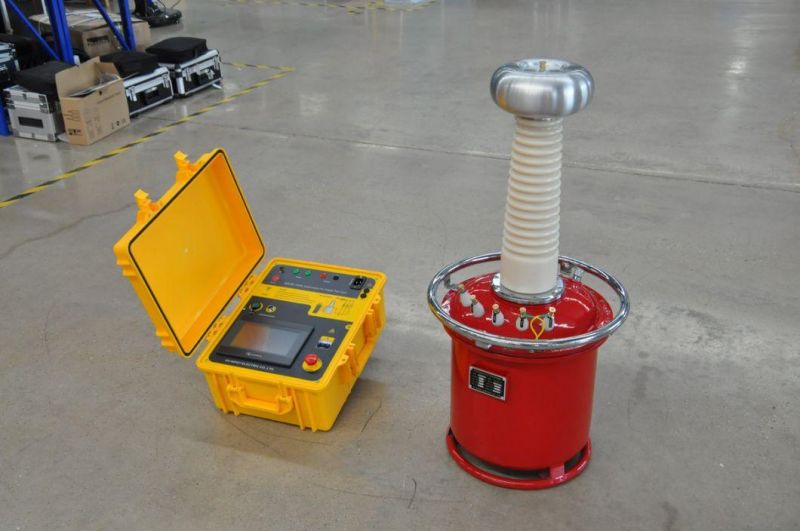

GDYD-A Customized Automatic AC/DC Hipot Test Set Insulation Strength Tester






The GDYD Series auto AC Hipot Test Set is designed for insulation resistance and voltage withstand testing of electrical devices and components according to New national standards of the power industry. It use multitude of automate testing ways to detect lots of dangerous defects, which ensure the insulation level and avoid any insulation accidents. A wide variety of models can be selected to fulfill different requirements and test conditions, ensure effective testing.


Features

Oil type, Dry type or SF6 type testing transformers can be selected as HV unit.

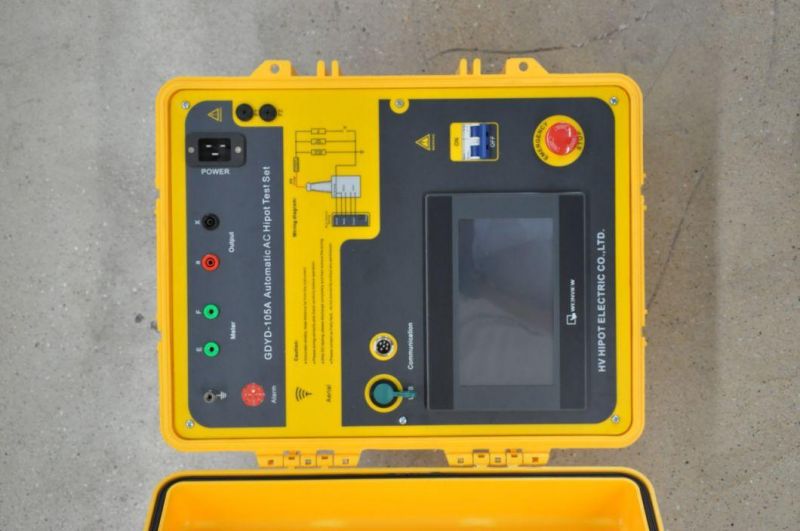

320×240 LCD screen, with high speed thermal printer.
Automatic or manual mode can be selected, simple and easy operation.
HV voltage/current, LV voltage/current, timing and results are directly displayed on the screen.
Over-voltage, over-current protection. Output voltage, HV current upper-limit, LV current upper-limit and timing can be set.
During automatic testing, voltage increase and decrease can be paused at any time, more convenient to monitor the test object.
Zero start protection. The test could be proceed when voltage is back to zero.
Automatic timing when the setting voltage reaches. After timing, the voltage is back to zero automatically.
Voltage output is cut off automatically and alarm when the HV/LV current is over setting value.
During testing process, press Exit button to quit any tests. Press Emergency button if any abnormal happened.
Anti-interference design, able to work in the harsh electromagnetic environment.
AC or AC/DC test is selected by customer.


Specifications


Input voltage	AC 220V or 380V
Output voltage of control unit	AC 0-250V or 0-430V
Output current of control unit	0-5/10/15/50A(customized)
Output power(Capacity)	0-3/5/10/15/20kVA(customized)
Output voltage of HV unit	0-50/100/150/200kV(customized)
Output current of HV unit	0-50/100/150/200/500/1000/2000mA(customized)
Timing	0-9999s
Environmental temperature	-20ºC--50ºC
Voltage accuracy	≤ 1.5%±1digit(F.S)
Current accuracy	≤ 1.5%±1digit(F.S)

Other accessories for option
AC/DC Digital Voltage Meter: 50,100,150,200kV
Sphere Gap
DC microammeter
Discharge stick
Water resistor
HV filter capacitor: 0.01μF-0.1μF, 40-300kV
Trolley
Insulating support: 50,100,200,300kV
Standard Oil cup: 400ml
HV electroscope: 10, 35kV
