• Model NO.：PC
• HS Code：90248000
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. PC HS Code 90248000 Production Capacity 200 Sets/Month

Product Description

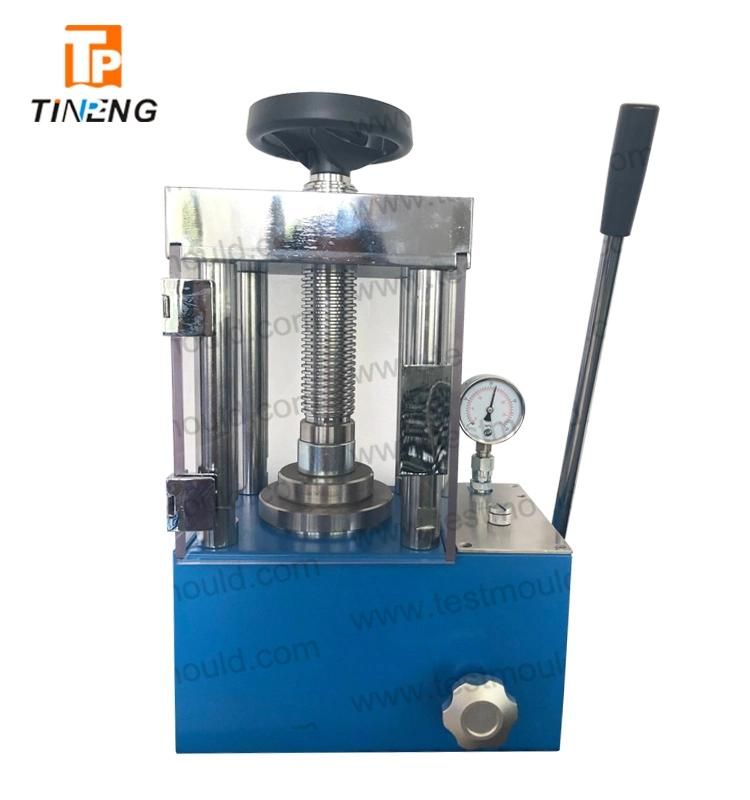

MANUAL PELLET PRESS WITH BUILT-IN HYDRAULIC PUMP
model PC desktop manual pellet press with easy operation and widely used in materials and ceramic research. The built-in hydraulic pump feathers auto return function.



Specifications:

Model	PC-12	PC-15B	PC-15
Pressure measurment range	0-12Ton(0-30Mpa)	0-15Ton(0-30Mpa)	0-15Ton(0-30Mpa)
Piston Diameter	Chromeplate hydro cylinder 70mm	Chromeplate hydro cylinder 80mm	Chromeplate hydro cylinder 80mm
Piston Travel	30mm	30mm	30mm
Pressure gauge	two units Ton and Mpa	two units Ton and Mpa	two units Ton and Mpa
Weight	28kgs	38kgs	40kgs

Accessories includedoil tin, hex wrenches,fixed spanners,o-rings
Optional accessories:Dies with variable size at extra cost
