Analogue Display Hydraulic Compression Testing Machine
Zhejiang Tugong Instrument Co., Ltd.- Type:Compression Testing Machine
- Maxcapacity:>1000KN
- Accuracy Grade:1
- Display:Analogue
- Control:Manual Control
- Weight:500-1000Kg
Base Info
- Model NO.:STYE-2000D
- Power Source:AC220V
- Oil Cylinder Position:Under
- Piston Lift Height:30cm
- Size of The Bearing Plate:320×260mm
- Max. Distance Between The up and Down Be:310mm
- Max. Piston Stroke:90mm
- Diameter of The Piston:Φ250mm
- Rated Pressure of The Hydraulic Pump:40MPa
- Transport Package:Export Wooden Case
- Trademark:YUFENG
- Origin:Made in China
- Production Capacity:200PCS,Month
Description
Basic Info.
Model NO. STYE-2000D Power Source AC220V Oil Cylinder Position Under Piston Lift Height 30cm Size of The Bearing Plate 320×260mm Max. Distance Between The up and Down Be 310mm Max. Piston Stroke 90mm Diameter of The Piston Φ250mm Rated Pressure of The Hydraulic Pump 40MPa Transport Package Export Wooden Case Trademark YUFENG Origin Made in China Production Capacity 200PCS/MonthProduct Description

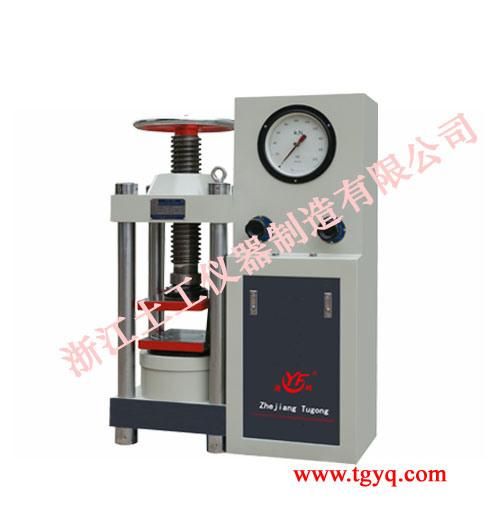

STYE-2000D Analogue Display Hydraulic Compression Testing Machine
Application:
Compression test of building materials including concrete, cement, airbrick, fire proofing tile, engineering ceramics and building stones
Technical parameters:
1.Max. testing power: 2000kN
2.Precision: Superior than grade 1.
3.Piston lift height: 30cm
4.Working voltage: 380V±10% or 220V±10%
5.Size of the bearing plate: 320×260mm
6. Max. distance between the up and down bearing plates: 310mm
7. Max. piston stroke: 90mm
8. Diameter of the piston: Φ250mm
9. Rated pressure of the hydraulic pump: 40Mpa
Package:
Measurement of 2000KN capacity: 960×480×1170mm,
weight: 800kg;
Why Choose us?
1. Superior Quality & Reasonable Price
2. Professional Project Design Team & Complete Project Management System
3. Full range of Products, including soil, asphalt, concrete, cement, motor and rock
offer you one-stop purchase, save your money and delivery time.
4. Great Production Capacity, 14 modernized standard workshops
5. Experienced Engineer & Satisfactory After-sales Service
6.MOQ:1 set is avaliable
7.Cover an area of 26,680 square meter FAQ
What's the delivery time?
Delivery time from 7 days-15 days according to the products.
What's your payment terms?
We accept T/T, L/C or Western Union.
What's your terms of trade?
We accept EXW, FOB, CNF, CIF, AND SO ON.
What's your services?
For our products, we will give your professional guidance ( Product introduction and operation manual )
Do you have any exhibitions?
Yes. We have many exhibitions in domestic and abroad. If you come to canton fair, pls contact with us, we will tell you booth No..
Send us an inquiry and we will contact you soon!
If you want to know more, pls view our official website: cnzjtg.en.made-in-china.com
