• Model NO.：PA520A-S
• Weight：1.95kgs
• Power Source：AC220V
• Product Advantage：Portable , Large Touch Screen
• Size：Length:24cm .Width: 19cm .Front Height:5cm. Behind
• Frequency Range：1 kHz-1 MHz
• Test Item：Admittance Circle Diagram and Logarithmic Graph an
• Test Speed：5second
• Impedance Range：1q-1mq
• Usage：All Ultrasonic Components and Equipment
• Transport Package：Carton
• Trademark：RPS-SONIC
• Origin：China
• HS Code：8515900090
• Production Capacity：1000sets

Basic Info.

Model NO. PA520A-S Weight 1.95kgs Power Source AC220V Product Advantage Portable , Large Touch Screen Size Length:24cm .Width: 19cm .Front Height:5cm. Behind Frequency Range 1 kHz-1 MHz Test Item Admittance Circle Diagram and Logarithmic Graph an Test Speed 5second Impedance Range 1q-1mq Usage All Ultrasonic Components and Equipment Transport Package Carton Trademark RPS-SONIC Origin China HS Code 8515900090 Production Capacity 1000sets

Product Description

Basic Info.

Model NO.	PA520A-S
Specification	45*22*27cm
Origin	China
Production Capacity	1000
Transport Package	Carton
Trademark	RPS-SONIC
HS Code	8515900090

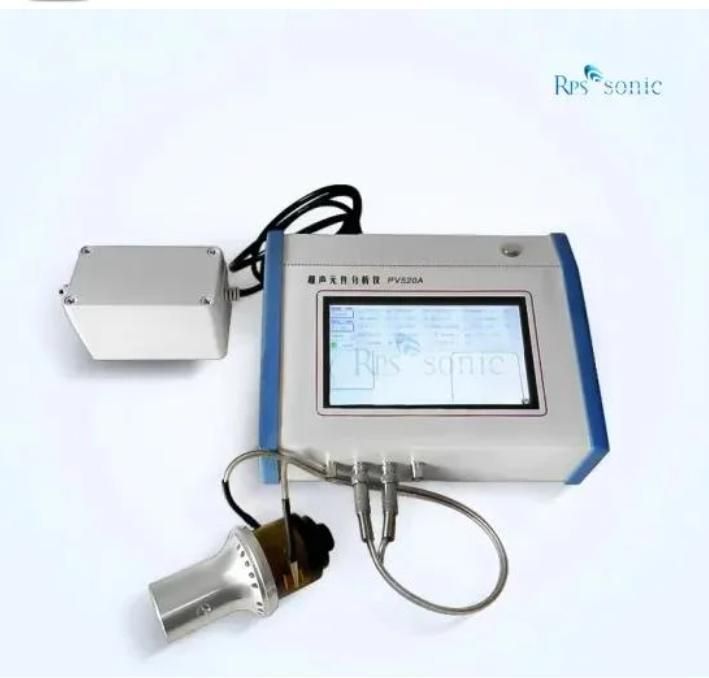

Ultrasonic Analyzer PV520A used for piezoelectric ultrasonic components and equipment for a comprehensive solution.
1. Size: 24cm*14cm*(front 5cm/behind 10cm),Weight 1.95kg, easy for taking.
2. Large touch screen, without physical buttons, graphic displayed all parameters and, more intuitive.
3. Fast test speed, test 2000point only need 10 seconds.
4. Connect the computer available.
5. The biggest test frequency up to 5 MHZ.
6. Warranty period: 2year

For ultrasonic measurement, the key point is Admittance circle diagram and logarithmic graph, this two graph can Judge the ultrasonic good or bad. And also will have tens test data as reference:resonance frequency (Fs),conductance in max(Gmax),band width(F2-F1),anti-resonance frequency(Fp),quality factor (Qm),Free capacitance(CT),dynamic resistance(R1),dynamic inductance(L1), dynamic capacity(C1),direct capacitance(C0),effective electromechanical coupling (keff). Ultrasonic Analyzer PV520A suit for all ultrasonic components and equipment,like: Piezoelectric ceramic, transducer, ultrasonic cleaning machines, ultrasonic plastic welding machine, acoustic and magnetostrictive materials, ultrasonic grinding mill, ultrasonic atomizer, ultrasonic teeth cleaning and reversing radar, ultrasonic distance measurement, ultrasonic emulsification, ultrasonic cleaning, ultrasonic motors, and other all use of piezoelectric and ultrasonic components and equipmen

Parameter	PV520A-S
Product advantage	portable , Large touch screen
Size	Length:24cm .width: 19cm .front height:5cm. behind height: 10cm
Frequency range	1 KHz-1 MHz
Test item	Admittance circle diagram and logarithmic graph and other tens data
Test precision	<0.1%
Test speed	5second
Frequency precision	±10ppm
Phase resolution	0.15
Work temperature	10 ~ 40 degree centigrade
Impedance range	1Q-1MQ
Stepped frequency	0.1 Hz-any
power	AC 100V ~ AC250V , 50 ~ 60Hz, 30W
Usage	All Ultrasonic Components And Equipment

All kinds of ultrasonic device measuring impedance characteristics including: piezoelectric ceramics, transducer, ultrasonic cleaning machines, ultrasonic plastic welding machine, acoustic, magnetostrictive materials, ultrasonic grinding mill, ultrasonic atomizer, ultrasonic teeth cleaning and reversing radar, ultrasonic ranging, ultrasonic emulsification, ultrasonic cleaning, ultrasonic motor, and so on:

Auto parts manufacturers (maintenance, horn manufacturing and receipt inspection)

Ultrasonic welder manufacturers (tuning process, quality control and horn development)

Ultrasonic cleaner manufacturers (tuning process and quality control)

Medical equipment manufacturers (quality control and receipt inspection)

Healthcare industry (maintenance, horn manufacturing and receipt inspection)

Mattress manufacturers (maintenance and receipt inspection)

Wire dies manufacturers (maintenance and horn manufacturing)

White line manufacturers (receipt inspection)

Footwear manufacturers (maintenance and horn manufacturing)

Underwear manufacturers (maintenance and horn manufacturing)

Fish finder manufacturers (quality control and underwater transducers development)

Eyeglass lenses manufacturers (maintenance of cleaning systems)

Fishing lures manufacturers (maintenance and horn manufacturing)

Water and energy meters manufacturers (maintenance and horn manufacturing)

Mining industry (maintenance and ultrasonic cleaning boxes refurbishing)

Ultrasonic additive industry (maintenance, horn manufacturing and development)

Research groups (piezoelectric and ultrasonic devices development)

R&D departments (product development)

Sensors manufacturers (maintenance, quality control and receipt inspection)
