China Made Automatic Transformer Oil Tan Delta Tester

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Item Name：China Made Automatic 10kv Transformer Oil Tan Delt
  • Application：Measure Dielectric Loss Angle, Volume Resistivity
  • Temperature Control Range：<100c
  • AC High Voltage Output：400V-2200V
  • DC High Voltage Output：00V-2200V
  • Dimension：450(L)*310(W)*360(H)

Base Info

  • Model NO.：GDGY
  • Net Weight：21kg
  • Power Supply：220V, 50Hz
  • Price：Competitive Price
  • Warranty：1 Year
  • Transport Package：Packed in Veneer Case
  • Specification：55*45*71cm, 43kg
  • Trademark：GOLD
  • Origin：Chongqing, China
  • HS Code：9031809090
  • Production Capacity：10000 Sets,Month

Description

No.Item NameChina Made Automatic 10kV Transformer Oil Tan Delta Tester1AC High Voltage Output400V-2200V ±2% Every 100V 50VA2DC High Voltage Output00V-2200V ±2%3Temperature Control Induction StoveMaximal Power 500W4Temperature Control Range<100ºC5Temperature Measuring Error±0.5ºC6Control Temperature Error0.1ºC7Control Temperature TimeRoom Temperature 90ºC <20min8Measuring Rangetgδ Without Limit
Cx 15PF-300PF
Rx 10M-10T9Resolutiontgδ 0.001%
Cx 0.01pF
Rx 0.0110Precisiondelta tgδ:±(Reading*0.5%+0.020%)
delta Cx :±(Reading*0.5%+0.5PF)
delta Rx :±Reading * 10%11Relative Dielectric Loss ConstantΕr Calculated Automatically12Volume Resistivityρ Calculated Automatically13Dimension450(L)×310(W)×360(H)14Net Weight21KG15Condition of Use-5ºC-40ºC RH<80%16Power SourceAC 220V±10% Without Frequency Limit

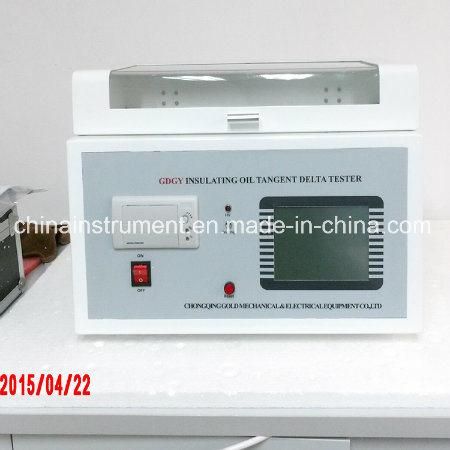

China Made Automatic Transformer Oil Tan Delta Tester
