• Model NO.：EDC-2
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Transport Package：Standard Export Package
• Specification：ASTM,EN
• Trademark：Tianpeng
• Origin：Hebei of China
• HS Code：90248000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. EDC-2 Weight 100-500Kg Power Source AC220V Oil Cylinder Position Under Transport Package Standard Export Package Specification ASTM/EN Trademark Tianpeng Origin Hebei of China HS Code 90248000 Production Capacity 5000PCS/Year

Product Description

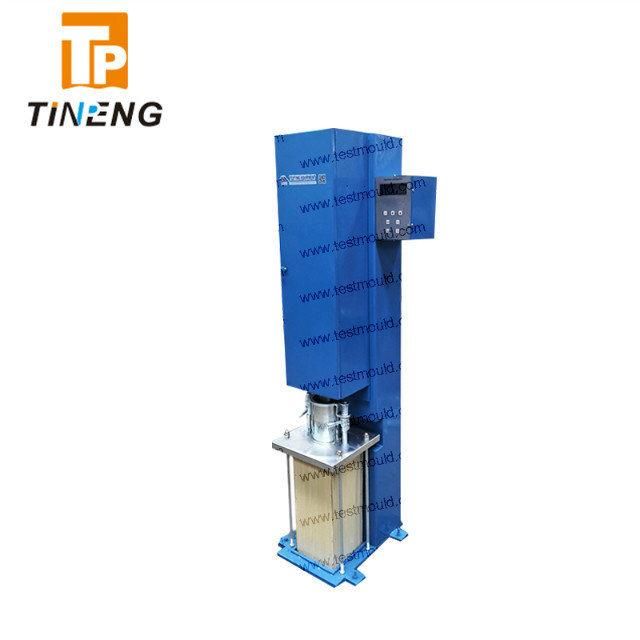

Marshall compactor:

This equipment is used for the preparation specimens for Marshall stability testing in compliance to BS 598 standard.

The digital controlled marshall electric compactor is suitable for preparing bituminous mix specimens (dia. 101.6mm x 63.5mm) used in marshall stability testing. The trip mechanism is designed to make the hammer fall at the same distance for every stroke. with some features of digital control, stroke times to be preset freely, auto counting and easy to operate etc.

STAnDARD: En 12697-10, 12697-30, BS 598-107

Hammer weight:	4.536Kg±0.009 Kg
Hammer head:	dia. 98.5 mm
Specimen cylinder dimension:	101.6 x 63.5 mm
Drop height:	457.2 mm
Compact frequency:	60 RPM
Compact time range:	0-999 times
Dimension:	540 x 540 x 1740 mm
Power:	220 V, 50 HZ, 370 W
Weight:	150 Kg
