• Model NO.：CTK-3
• Weight：0-100Kg
• Power Source：AC220V
• Load Plate：Dia.300mm
• Transport Package：Standard Export Package
• Specification：ASTM,EN
• Trademark：c-tech
• Origin：Hebei of China
• HS Code：90248000
• Production Capacity：10000PCS,Year

Basic Info.

Model NO. CTK-3 Weight 0-100Kg Power Source AC220V Load Plate Dia.300mm Transport Package Standard Export Package Specification ASTM/EN Trademark c-tech Origin Hebei of China HS Code 90248000 Production Capacity 10000PCS/Year

Product Description

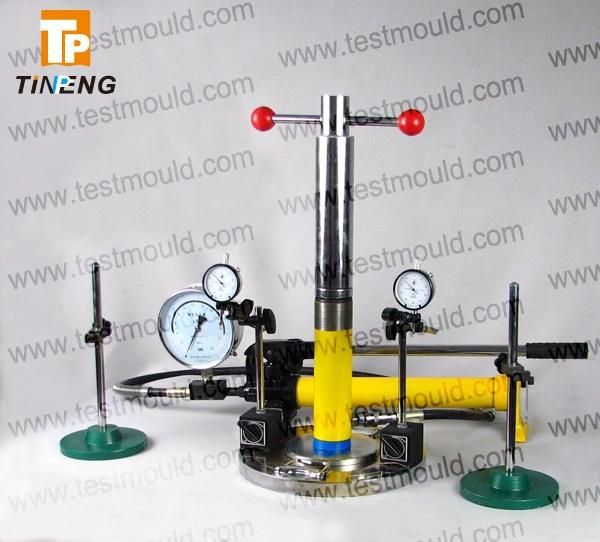

Plate bearing test machine
These test methods are used to estimate the bearing Capacity of a soil under field loading conditions for a Specific loading plate and depth of embedment (ASTM D1194) but also for load tests of soil and flexible pavement Components for use in evaluation and design of airport and Highway pavements (ASTM D1195, D1196; BS 1377; CNR No. 92 and No. 146; DIN18134). We propose a complete Range of plate load testing equipment conforming to the Different standards.

Load plate diameter:	300 mm
Jack load capacity range:	0-300 kN
Jack Stroke:	120 mm
Measuring bridge span:	3000 mm
Hand pump rated pressure:	70 Mpa
Stress test range:	0-25 Mpa
Displacement measurement range:	0-10 mm
