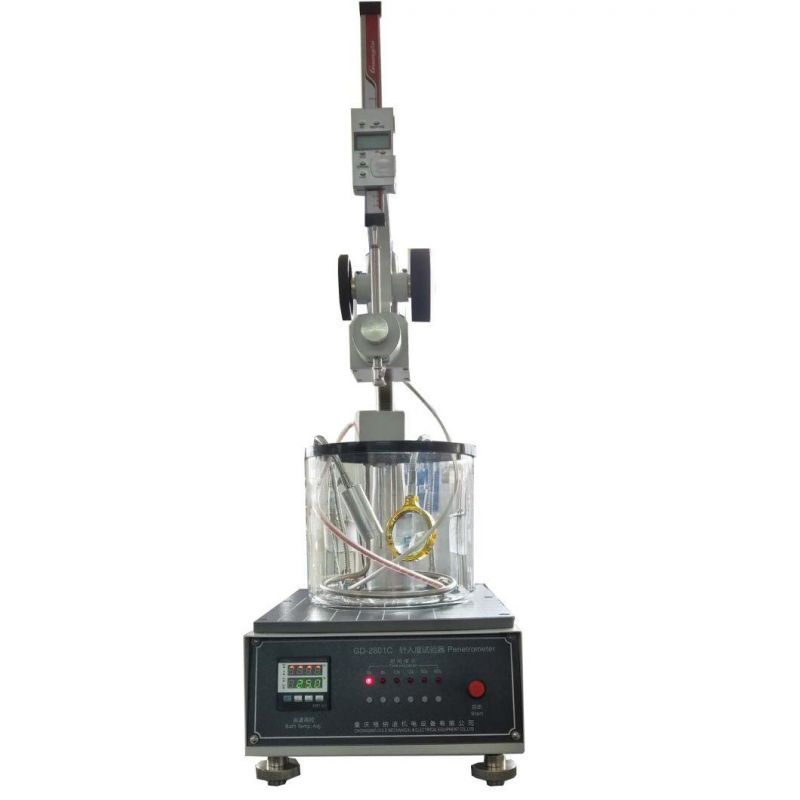

Asphalt/ Lubricating Grease Cone Penetrometer

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Standard：ASTM D217, ASTM D937
  • Cone Penetrometer Test Samples：Oil, Grease, Wax, Asphalt, etc.
  • Max. Penetration：600
  • Weight：25 Kg
  • Service：Engineers Available to Service Machinery Overseas
  • Transport Package：Standard Wooden Case

Base Info

  • Model NO.：GD-2801C
  • Specification：69*41*68cm
  • Trademark：GOLD
  • Origin：Chongqing
  • HS Code：9031809090
  • Production Capacity：100PCS,Month

Description

Measurement range (0~600)penetrationTiming deviceyou can select 5 s, 8 s, 10 s, 12 s, 30 s, and 60 s; Timing error is less than ±0.1 sResolution0.01 mmPenetration accuracy±1 penetrationStandard needle50mm,2.5g±0.05gHeater power200 WTemperature control accuracy25±0.1 ºC (Note: The ambient temperature shall not be higher than 20 ºC)Temperature control modeby a high precision digital temperature controllerConstant temperature bathHard glass bathBath stirringautomatically stirred by a magnetic stirrerStandard cone102.5±0.05 g, as per GB/T269 and ASTM D217Lifting supportWith coarse and fine adjustment functions; it is used to let the needle point just touch the sample surface.Power SupplyAC (220 ± 10%) V, 50Hz, power consumption is not more than 300WDimensions280mm × 350mm × 700mm (length × width × height)OthersEquipped with a cold light source and a magnifier. It is convenient for instrument operationAsphalt/ Lubricating Grease Cone Penetrometer
