PV Module Thermal Cycling Humidity Freeze Damp Heat Testing Chamber Machine

Dongguan Hong Tu Instrument Co., Ltd.
  • Product Name：PV Module Testing Chamber Machine
  • Testing Standard：IEC61215-2:2016
  • Temperature Range：-40 to 85
  • Temperature Fluctuation：+,- 1
  • Testing Sample Quantity：8 PCS ( Can Customized)
  • Testing Sample Size：2m*1m ( Customized)

Base Info

  • Model NO.：HTPV-26AB
  • Control：Touch Screen Control
  • Electricity：380V 60Hz
  • Language：Chinese and English
  • Humidity Range：30% to 98%
  • Transport Package：Strong Wooden Case
  • Specification：IEC61215 standard
  • Trademark：HOTOTECH
  • Origin：Dongguan
  • HS Code：9013809000
  • Production Capacity：50 Sets Per Month

Description

Temperature range-40 ~ 85ºCTemperature fluctuation≤±1ºCTemperature deviation≤±1ºCTemperature uniformity≤±2ºCRise and down speed rateSatisfy IEC61215-2:2016Humidity range30%~98%Relative humidity devication±3%FS, deviation 85±2%RH, 90±2%RHHumidity fluctuation±2%RHThermal cycle testingModule surface temperature change rate should not more than 1000ºC/h limit temperate the lowest maintain time is 10 min, one test is 200 times or 50 cycles Testing sample quantity8 pcs ( It's can customized)Inner and outer chamber materialStainless steel real-time curve displaywill display program set time, adjust curve sample rate record cycle, display set valuee curve and actural running value curveCommunicate interfaceRS-485 coommunicate interface, match on line software can connect to the computer, data save and humidity valueHumanixed operation interface automatic controlRefrigeration compressor, automaitc energy valve , temperatuare , humdiity, electric heating etc Independent controlthe program controller will heat up/humidification/dehumidification/cooling etc function complete independent control , save the energyLanguageChinese and English, can change each otherPower down power down reset and power down memory functionThermal insulation materialHigh density hard PU foam and glass insulation cottonControl ways Touch screen control Electricity380V 60HZ

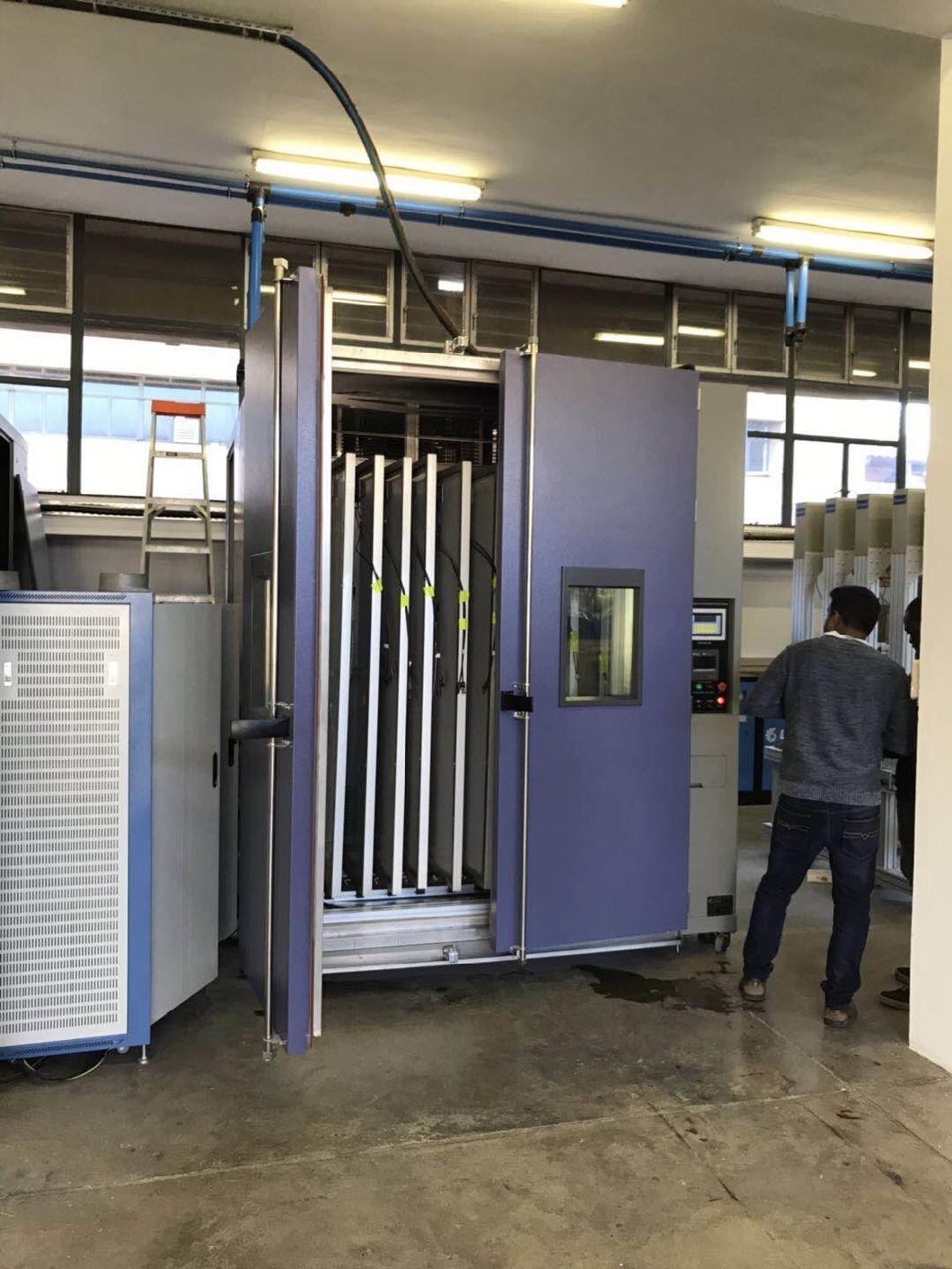

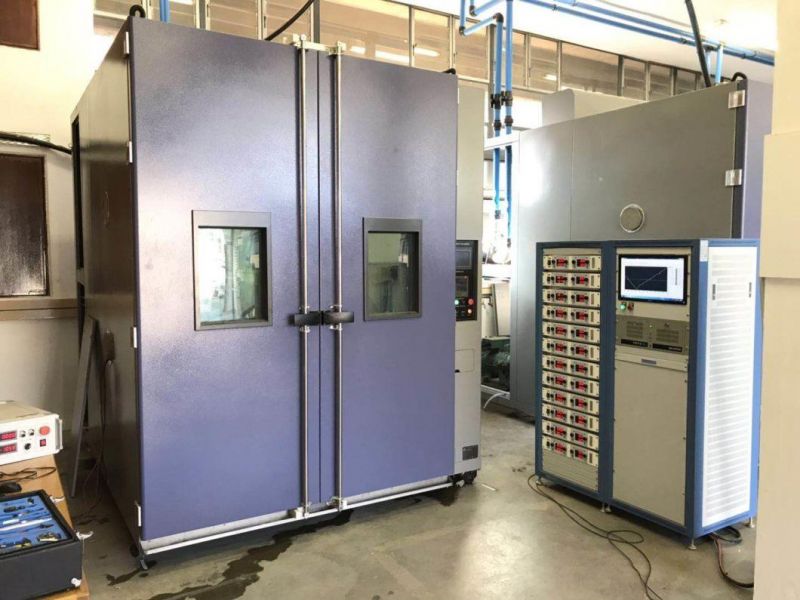

PV Module testing chamber machine's images display

PV Module Thermal Cycling Humidity Freeze Damp Heat Testing Chamber Machine


PV Module Thermal Cycling Humidity Freeze Damp Heat Testing Chamber Machine

PV Module Thermal Cycling Humidity Freeze Damp Heat Testing Chamber Machine
