• Model NO.：HJ-43
• Loading Method：Static Load
• Display：Digital
• Weight：0-100Kg
• Power Source：AC220V
• Capacity Selection (Kg)：1, 2, 5, 10, 20, 50, 100, 200, 500kgf
• Load Resolution：1,10,000
• Maximum Stroke (Without Fixture)：1000mm
• Test Speed：30-300mm,Min
• Data Sampling Frequency 100Hz：100Hz
• Motor：Stepping Motor
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-43 Loading Method Static Load Display Digital Weight 0-100Kg Power Source AC220V Capacity Selection (Kg) 1, 2, 5, 10, 20, 50, 100, 200, 500kgf Load Resolution 1/10,000 Maximum Stroke (Without Fixture) 1000mm Test Speed 30-300mm/Min Data Sampling Frequency 100Hz 100Hz Motor Stepping Motor Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

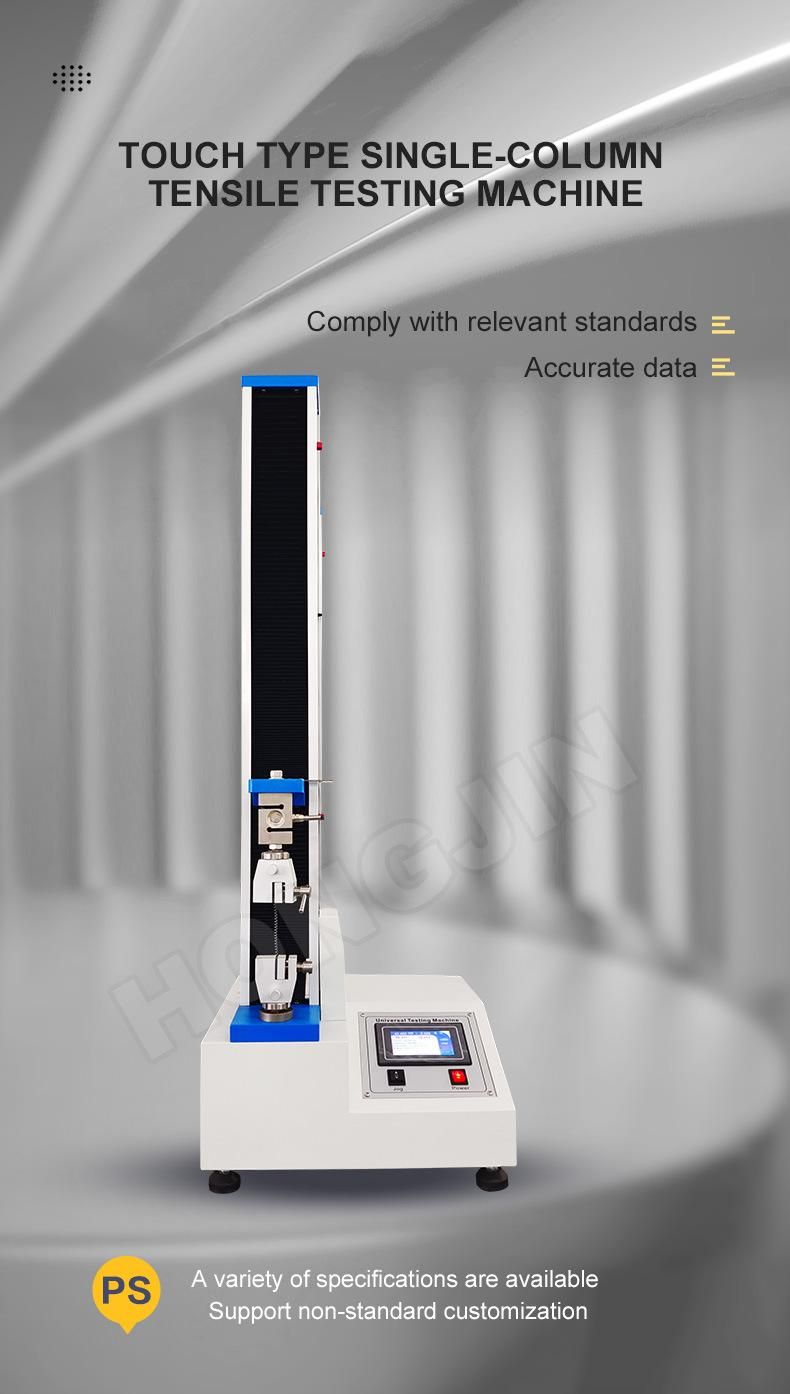

Universal Tensile Tester
The testing machine is widely used in all kinds of hardware, metal, sealants ,rubber and plastics, footwear, leather, clothing, textiles, insulators, wires, cables, terminals and other types of materials, testing, tensile, tear, peel,compression, bending, shear, three-point bending ... and other physical test performance.

Test its tensile, tear, 90-degree peel strength, 180-degree peel strength, compression resistance, bending shear resistance, three-point bending resistance and other physical properties. It is equipped with universal fixtures and can be used for stretching and tear performance test, use other fixtures, can achieve various performance tests such as compression resistance, bending shear resistance, three-point bending resistance, 90 degree peel strength, and 180 degree peel strength.
This machine can be set to automatically save the value. The microcomputer completes the automatic storage test value according to the set automatic storage value, and automatically calculates the average value. Conveniently view the saved list and print test result.


Capacity selection (kg)	1,2,5,10,20,50,100,200,500kgf
Load resolution	1/10,000
Maximum stroke (without fixture)	1000mm
Test speed	30-300mm/min
Data sampling frequency	100Hz
Motor	Stepping motor
Host size	490x380x186cm
Power supply	AC220vAC220v(can be customized by local requirements)
Optional unit	Kgf,lbf,N,kN
Load accuracy	±1%
Speed input method	Knob (ten turns)
Displacement resolution	0.001mm
Rotating lever	Ball screw or ordinary screw
Machine weight	190kg

The Introduction Of Hongjin
Hongjin products are widely used in paper products, packaging, ink printing, tape, luggage, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, suitable for all scientific research units, Quality inspection agencies and academic fields. Products comply with UL, ASTM, JIS, GB, SO, TAPPI, EN, DIN, BS and other domestic and foreign standards. We have CE certificates, ISO certificates, and are a high-tech enterprise with more than ten years of experience.


Hongjin's services:
If you encounter any problems during future testing, we promise we will reply you within 48 hours and provide a solution within 3 working days. We can provide operation video and English operation manual. We can provide video conferencing.
1. Pre-sales service
    --24-hour online service for your consultation.
    -- Help with choosing the right model, and a range of services, people, advice.
   --Provide laboratory planning and pre-sales technical guidance.
2. Intermediate service
    -- give you the best offer
    --Provide discounts on multiple sets of orders
    -- Do the customer's request:
    --Choose a payment term that is convenient for you.
    --Prompt production and delivery, keep you informed.
    -- Invoice value can be provided according to your needs to reduce tax.
3. After-sale service
   --1 year warranty service and lifetime maintenance.
   --Technical engineers can provide 24-hour after-sales guidance.
   --Replacement of some parts
   --Remote control technical consultation
   --Machine lifetime maintenance service
4. Commitment:
We will sign a letter of commitment at the same time as signing the contract, which will increase your confidence in us.
5. Good packaging:
Simulation animation customers cover with bubble film before putting them into wooden boxes, which not only has good shock absorption, impact resistance, heat sealing, but also has the advantages of non-toxic, odorless, moisture-proof and corrosion-proof, and good transparency.
