• Model NO.：DR026ST
• Viration Range：99999
• Walking Belt Height：2015mm
• Trademark：DARONG
• Origin：China
• HS Code：9024800000
• Production Capacity：100sets,Month

Basic Info.

Model NO. DR026ST Viration Range 99999 Walking Belt Height 2015mm Trademark DARONG Origin China HS Code 9024800000 Production Capacity 100sets/Month

Product Description

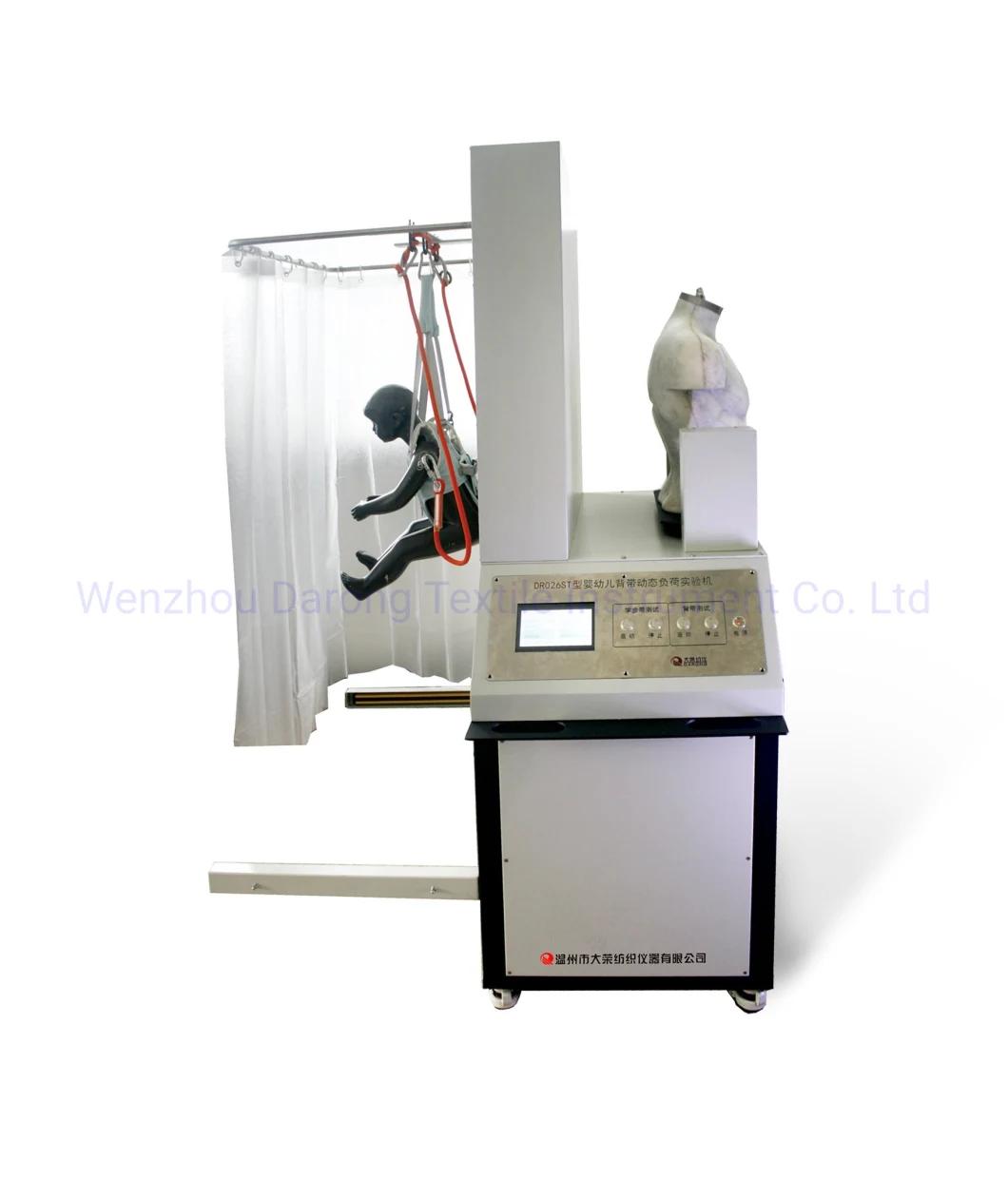

DR 026SK Children products baby strap dynamic load tester
[Scope of application] : It is used for dynamic load test of toddler belt and backpack stool to evaluate the separation of straps or backpack fixings and joints, etc.

[Relevant standards] :
GB/T 40227-2021 Waist stool for infants and young children (National standard drafting unit)
GB/T 35448-2017 Baby walking belt
GB/T 35270-2017 Baby carrier (bag)

[ Technical features ] :
1, GB/T40277-2021 baby waist stool national standard drafting validation test model
2, double test area, you can test the walking belt or strap alone, or at the same time
3. Use the human body model of equal proportions to simulate the actual application state of the sample
4, soft and hard double human model selection
5. 32-bit processor;  24-bit high-speed ANALOG-to-digital conversion chip;  Ac servo motor;  High precision linear bearing
6, automatic detection of radiation grating accessories fall off
7. Multiple safety protection devices
[ Technical parameters ] :
1. Weight of infant model: Model 1:15kg Model 2:9kg
2. Adult model torso: 1 soft and 1 hard,
Dimensions 520mm (width) ×270mm (thickness) ×720mm (height)
3, walking belt test metal support height: 2015mm
4, test sandbag: 7.7kg, φ102mm×203mm
5, leg opening test round table: aluminum about 0.9kg, R60mm× R38.1mm ×120mm
4, A amplitude (strap) : 120mm±5mm vibration frequency: 2Hz±0.2Hz
5, B amplitude (step) : 100mm±2mm vibration frequency speed: (120±5) times/minute
6, vibration times: 0 ~ 99999 can be set arbitrarily
7, walking belt dynamic test sample drop automatic stop
8, walking belt test accessories fall off collection device
9, the touch screen automatically records and displays the experimental state and vibration times, with the function of recording data and memory
10, power supply and power: AC220V±10% 50Hz, 1.5KW
11, instrument dimensions: about 1000mm (L) ×1100mm (W) ×2140mm (H)
12, weight: about 200kg
