ISO 12127, En 702 Clothing for Protection Contact Heat Transmission Tester

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Product Name：Clothing for Protection Contact Heat Transmission
  • Standard：ISO 12127, En 702
  • Function：Fire Testing Equipment
  • Application：Safety Protection
  • Overseas Training：Available
  • System：Computer Control

Base Info

  • Model NO.：GD-ISO12127
  • Power Supply：AC220V 10%
  • Weight：55kg
  • Warranty：12 Months
  • Transport Package：Plywood Case
  • Trademark：GOLD
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：500 Sets, Year

Description

Basic Info.

Model NO. GD-ISO12127 Power Supply AC220V 10% Weight 55kg Warranty 12 Months Transport Package Plywood Case Trademark GOLD Origin China HS Code 9031809090 Production Capacity 500 Sets/ Year

Product Description

ISO 12127, EN 702 Clothing for Protection Contact Heat Transmission Tester

 Introduction:

This contact heat transmission tester for fire protection clothing is designed and manufactured according to ISO12127-2007 and EN702.

The instrument uses the heating cylinder to provide a constant temperature, while contacting with the sample under a certain load, and a calorimeter to measure the heat transfer properties. The instrument is easy to operate, the data is accurate and reliable, widely adopted in fire protective clothing companies and inspection departments.

 Application:

  •  Safety Protection

 Standard:

  • ISO12127-2007: Clothing for protection against heat and flame -- Determination of contact heat transmission through protective clothing or constituent materials
  • EN702: Protective clothing. Protection against heat and flame. Test method. Determination of the contact heat transmission through protective clothing or its materials

 Product Image:

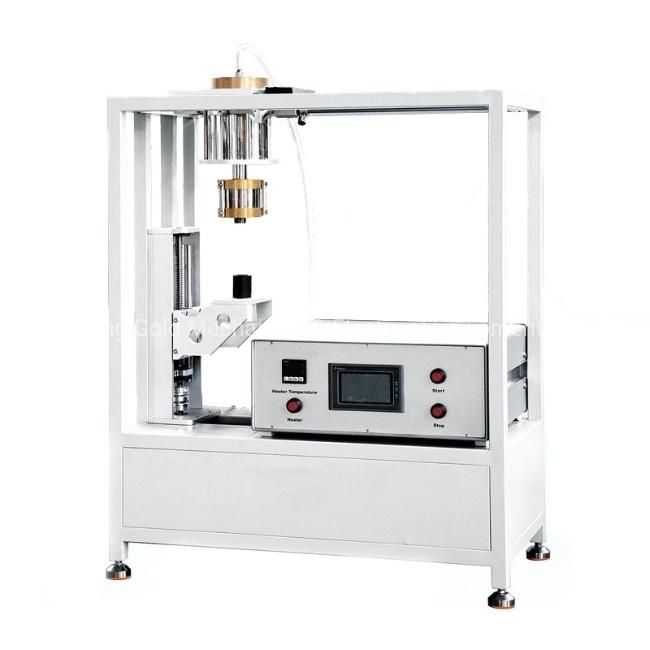

ISO 12127, En 702 Clothing for Protection Contact Heat Transmission Tester

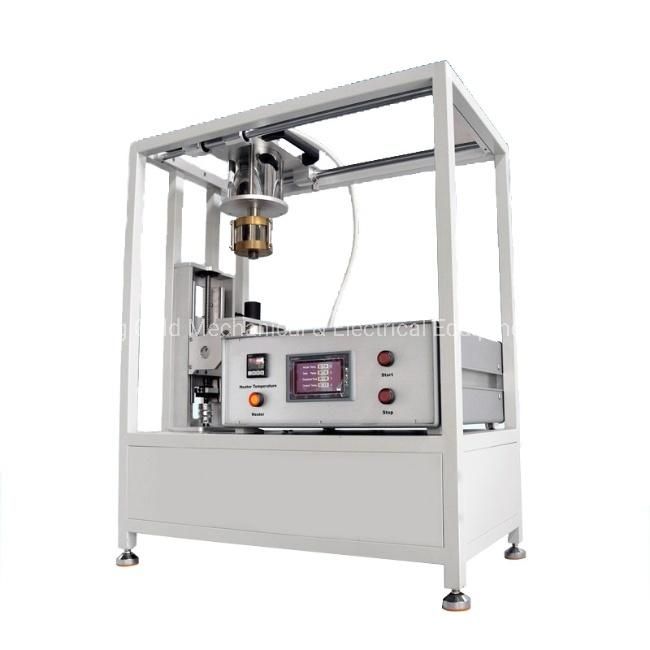

ISO 12127, En 702 Clothing for Protection Contact Heat Transmission Tester


 Technical Parameters:

  1. This testing instrument is consists of a control box and stainless steel test gantry.
  2. The sample holder is automatic lifting, lifting speed is 5mm ± 0.2mm/s.
  3. The K type sheathed thermocouples, diameter 2mm, temperature measurement accuracy is 0.1 ºC.
  4. Heating barrel temperature is higher than 500ºC, the contact surface of the sample diameter is 25.2±0.05mm.
  5. Barrel heating load weight 49N, is adjustable.
  6. Timer scope 0 to 99999s, timing accuracy up to 0.1s.
  7. Calorimeter fixed disk diameter is 25mm, thickness 5mm, and assembled with platinum resistance temperature sensor.
  8. Support frame material is nylon 66, diameter 40mm and height 50mm.
  9. Specimen diameter should be 80mm.
  10. PLC and touch screen for intelligent control system.
  11. PID intelligent temperature control system, automatically collect temperature data.
  12. Test data is automatically calculated and stored by system, test result can be printed freely.
  13. Test table size: 650mm x 350 mm x 650mm.
  14. Power supply 220V 50 / 60Hz, power 800w, can be customized.
  15. Weight: about 50 kg
  16. Ambient Temperature: Operating25±5ºC
  17. Gas Supplies requirement: Propane and air compressed air
