• Model NO.：GDYJ-502A
• Rate of Voltage Rise：0.5kv,S, 2kv,S, 3kv,S, 5kv,S± 5%
• Oil Temperature Measurement Range：0°c to 70°c, or Better
• Max. Test Times：9
• Stir Time：0~999s
• Operation Mode：LCD Touch Screen
• Repeatability：Good
• Transport Package：Plywood Case
• Specification：53KG
• Trademark：GOLD
• Origin：Chongqing, China
• HS Code：9030849000
• Production Capacity：500 Pieces,Month

Basic Info.

Model NO. GDYJ-502A Rate of Voltage Rise 0.5kv/S, 2kv/S, 3kv/S, 5kv/S± 5% Oil Temperature Measurement Range 0°c to 70°c, or Better Max. Test Times 9 Stir Time 0~999s Operation Mode LCD Touch Screen Repeatability Good Transport Package Plywood Case Specification 53KG Trademark GOLD Origin Chongqing, China HS Code 9030849000 Production Capacity 500 Pieces/Month

Product Description

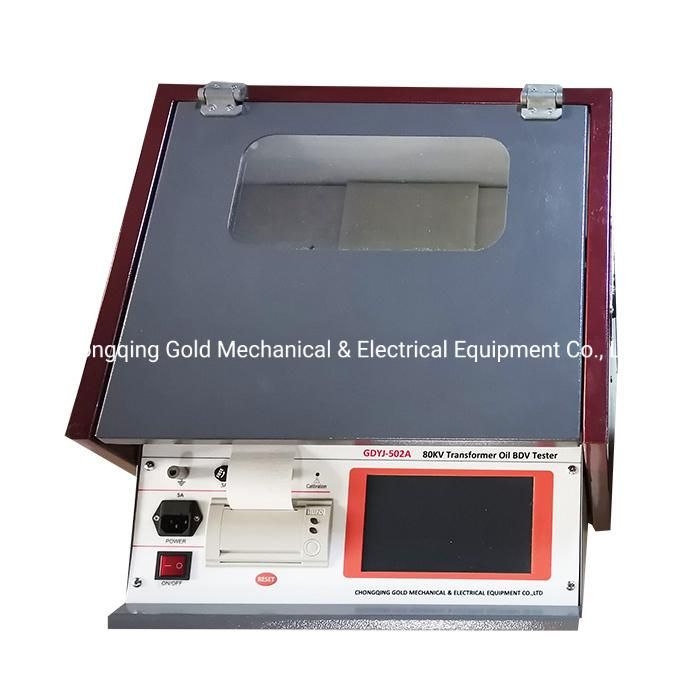

80KV 100KV Transformer Oil Dielectric Breakdown Voltage Tester Oil Dielectric Strenght Test Set With Touch Screen


Introduction
 1) 80KV 100KV Transformer Oil Dielectric Breakdown Voltage Tester Oil Dielectric Strenght Test Set With Touch Screen is used to measure breakdown voltage BDV of all transformer oil, dielectric oil, electrical oil, insulating oil, etc.
2) 80KV 100KV Transformer Oil Dielectric Breakdown Voltage Tester Oil Dielectric Strenght Test Set With Touch Screen is developed according to IEC156 Insulating Oil Dielectric Strength Testing Method;
The oil test vessel with temperature measurement unit, so it can detect oil temperature.
3) With 8 Kinds of test mode as optional: IEC156, IS6792, BS5874, ASTM D1816 , ASTM D877, Proof test, 5 minutes standard test, Manual test;
4) It has large LCD display, all the selection can be done by touch panel with color LCD;
5) It also with micro-printer and can store 100 groups data, test data can also be unload to PC and output word report automatically;
6) It is multi-functional, stable, and easy for operation

Advantages

1) It's very easy to use, automatic operation and very repeatable results.
2) The other good feature is that they can perform a number of different standards (a selection of probes are provided and then pre-select the appropriate standard on the touch-screen).


Main Technical Index


1	Output voltage	AC 0V~80KV (100KV for choice)
2	Rate of voltage rise	0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5%
3	Max. test times	9
4	Stir time	0~999s
5	Wait time	0~999s
6	Measurement accuracy	±(1% of full scale + 2 digits)
7	Resolution	0.1KV
8	Temperature measurement range	0°C to 70°C, or better
9	Temperature resolution	1°C, or better
10	Data storage	100 groups
11	Weight	38kg
12	Size	550 mm*500mm*580mm
13	Power supply	AC220V, 50Hz
14	Working environment	Room temperature to 45°C, humidity<85%

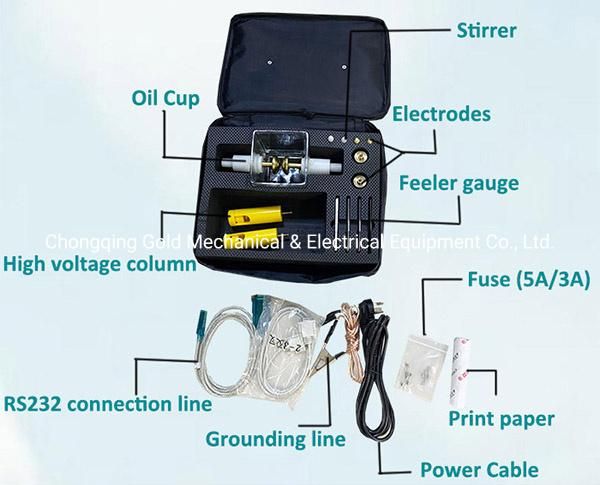

Accessories


Success Case

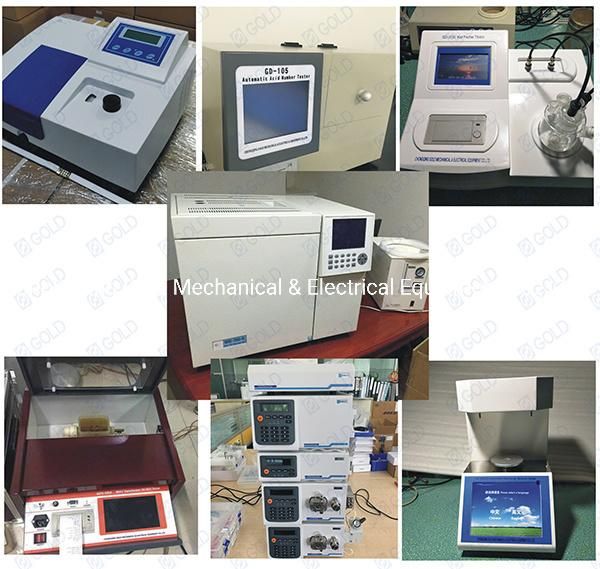

A Transformer Oil Lab from Philippines Ordered 8 Sets Equipment

A Transformer Oil Lab in Manila,Philippines who placed an order with us on July 11,2019. Total 8 sets equipment. which includes:

• GDYJ-502A 80KV Transformer Oil BDV Tester,

• GDGY Transformer Oil Tan Delta Tester,

• GC-7890-DL Transformer Oil Dissolved Gas Analyzer

• GD-2100 Karl Fischer Moisture Titrator(Coulometric method)

• GD-6541A Automatic Interfacial Tension Tester

• GD-752N UV Vis Spectrophotometer

• GD-3100 Gradient HPLC System

• GD-105 Automatic Acid Number Tester    (ASTM D974)

All the equipment already shiped out. We will provide a training in their lab.

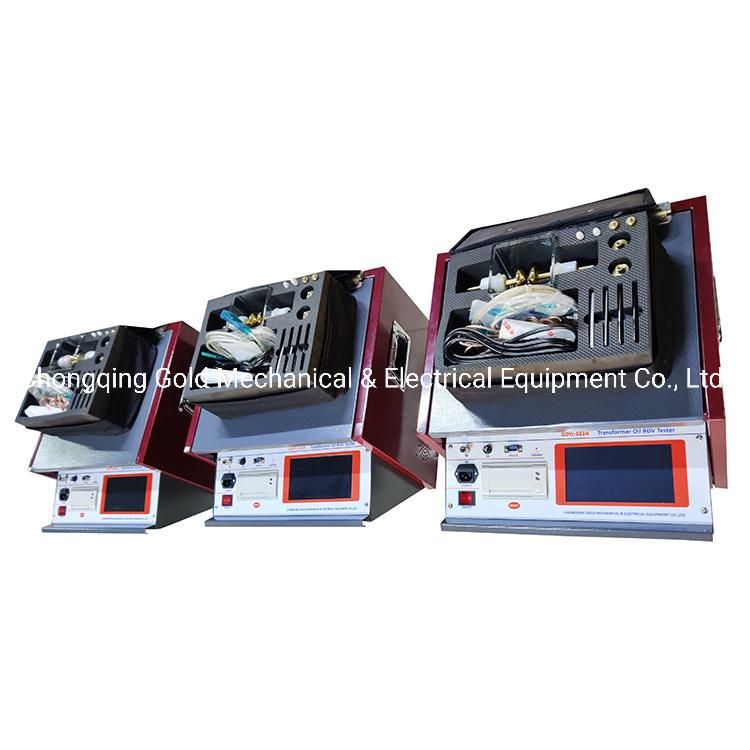

3 Sets GDYJ-502A 80KV Transformer Oil BDV Tester Sold to Philippines
