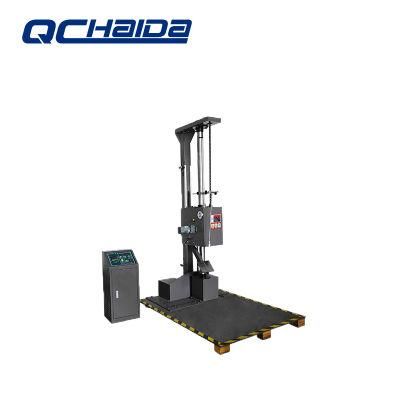

Ista Package Bag Carton Box Drop Impact Test Machine
Dongguan Haida Equipment Co., Ltd.- Type：Drop Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
- Loading Method：Dynamic Load
- Display：Digital
Base Info
- Model NO.：HD-A520
- Control：Computer Control
- Weight：100-500Kg
- Power Source：AC220V
- Design Criteria：ISO, JIS, Ista
- Drop Height：300 to 1500mm (Adjustable)
- Standard Drop Weight：60kg ( Can Custom )
- Warranty：One Year
- Delivery Time：15 Days After Receive The Deposit
- Display Method：Digital Height Indicator (Optional)
- Drop Panel Area (W* L)：1700*1400 mm
- Specimen Max. Size(L*W* H)：1000*700*1000 mm
- Arm Size：290* 240* 8 mm
- Drop Flat Deviation：< 1 Degree
- Transport Package：Strong Wooden Case
- Specification：ISO 2248, JIS Z0202-87, GB,T4857.5-92
- Trademark：Haida
- Origin：China
- HS Code：9024109000
- Production Capacity：150 Sets Per Month
Description

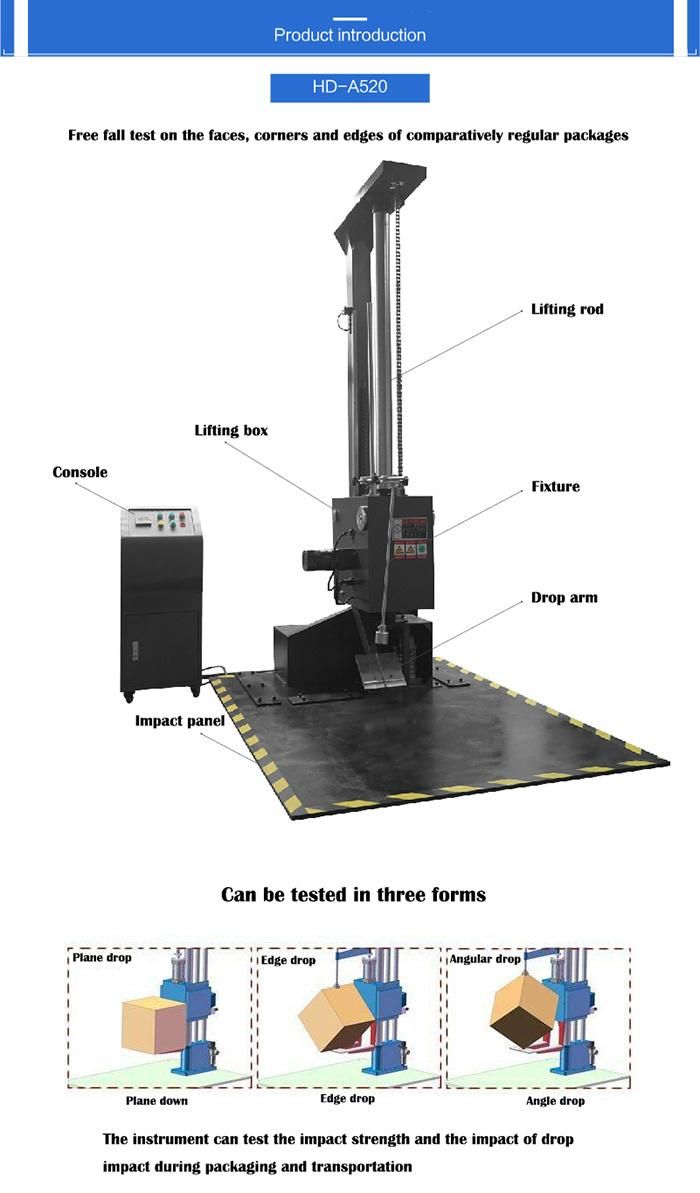

During the products handling or transport process, there may be drop/ fall, which results in damage within the products. And this device simulates the drop/ fall of a finished product to evaluate the damage. All the rhombohedrons, angles and faces of the products can be tested. (The table parameters for the company Standard Model parameters, we support customer customization parameters)
