Th9201b Safety Tester AC/DC Withstanding Voltage & Insulation Tester

Changzhou Chuangkai Electronic Co., Ltd.
  • Warranty：1 Year
  • Product Name：Th9201b Safety Tester AC,DC Withstanding Voltage &

Base Info

  • Model NO.：TH9201B
  • Memory：50groups, 100 Steps Per Group, Totally 500 Steps
  • Discharge Function：Discharge After Test Ends (Dcw)
  • Voltage Rise Time：0.1s-999s
  • Voltage Wait-Time：0.1s - 99.9s (Only for DC)
  • Voltage Fall-Time：0.1s-999s
  • Test Time Setting：0.3s-999s
  • Interface：RS232, USB, Handler, Remote I,O, Scan
  • Transport Package：Carton
  • Specification：50x45x35cm
  • Trademark：CKT
  • Origin：China
  • HS Code：9030332000
  • Production Capacity：3000 Sets Per Month
  • Package size per unit product：50.00cm * 45.00cm * 35.00cm
  • Gross weight per unit product：15.000kg
  • Lead Time：10 days (1 - 1 set) To be negotiated ( > 1 set)

Description

Overview Product Description

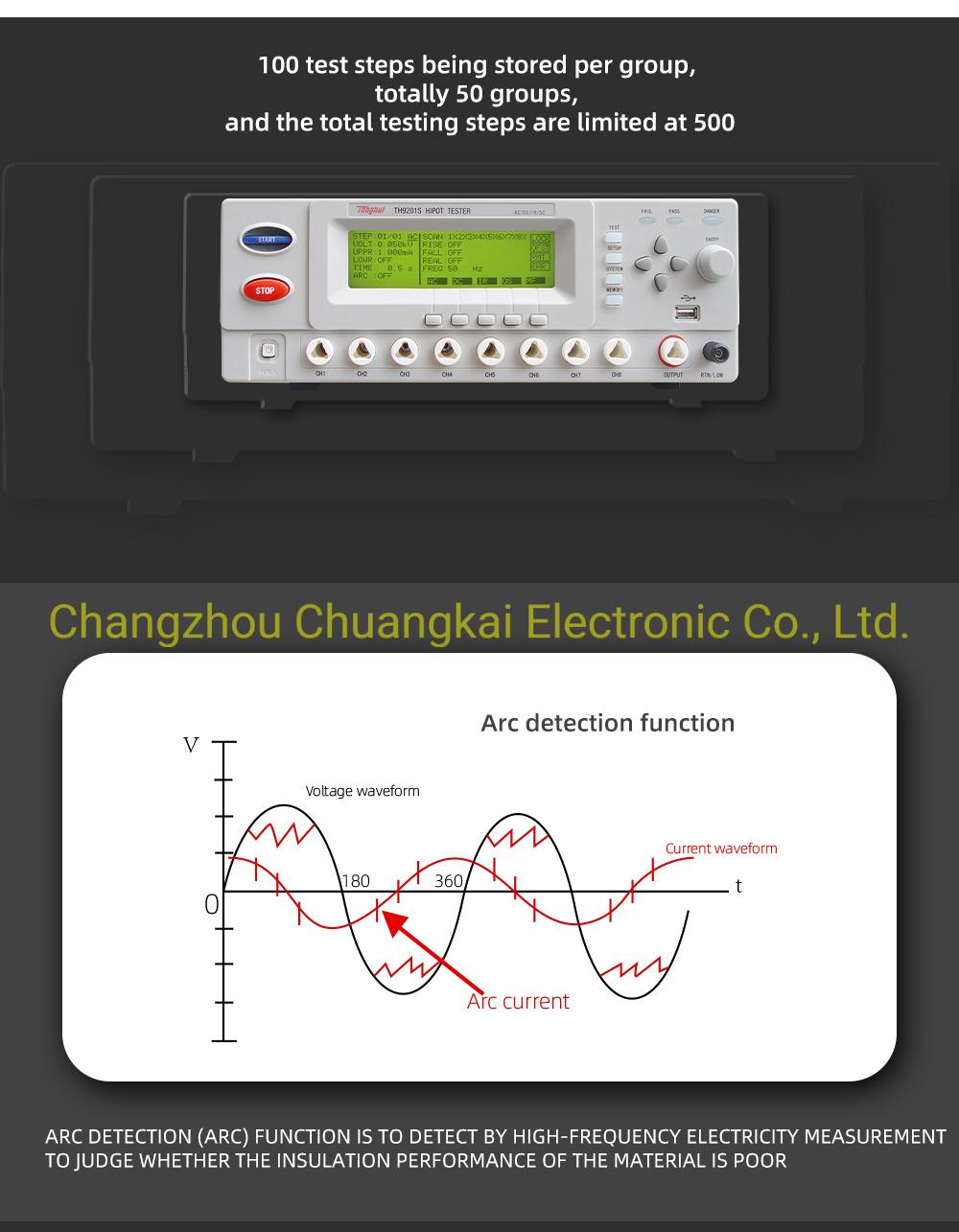

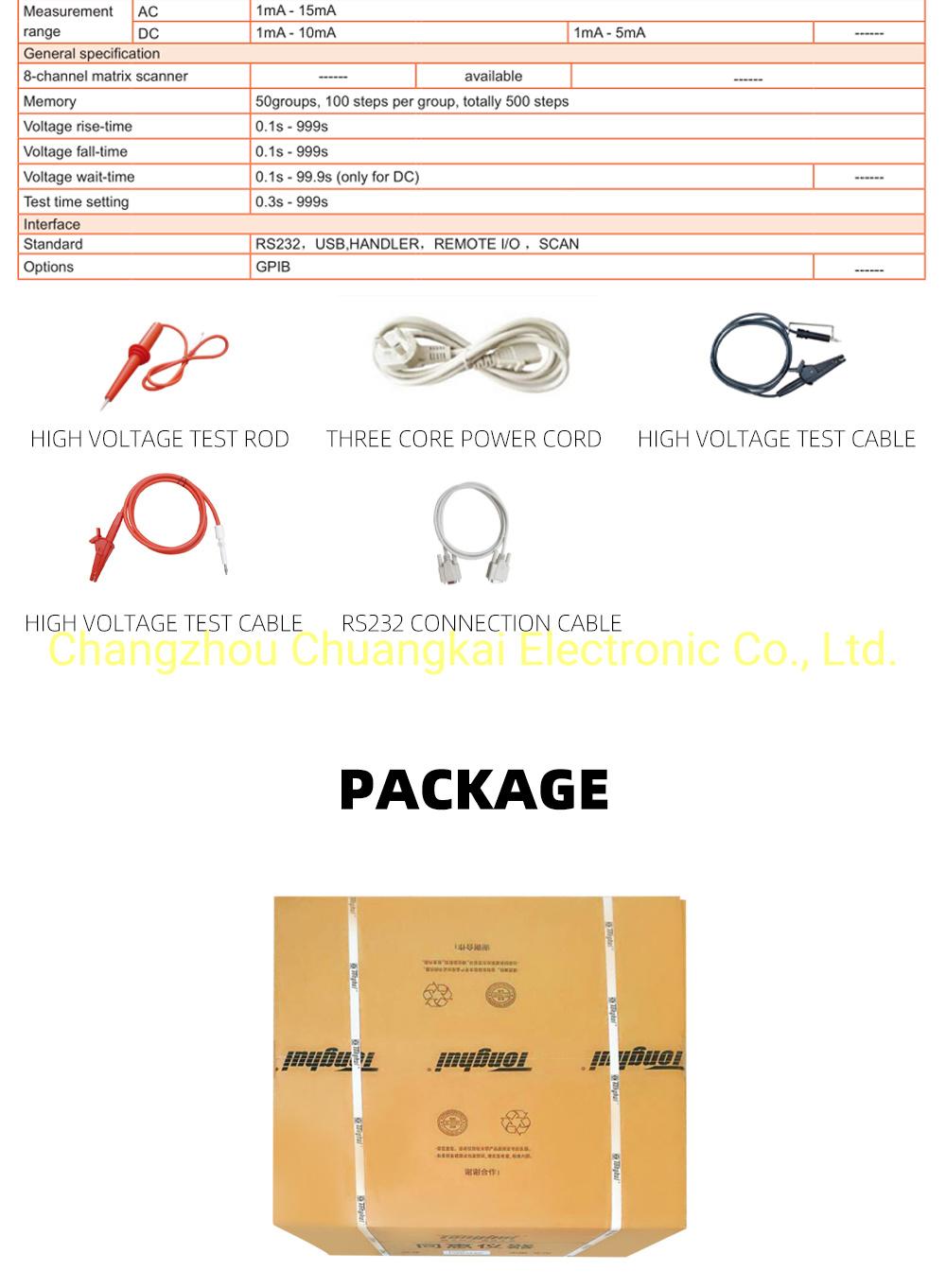

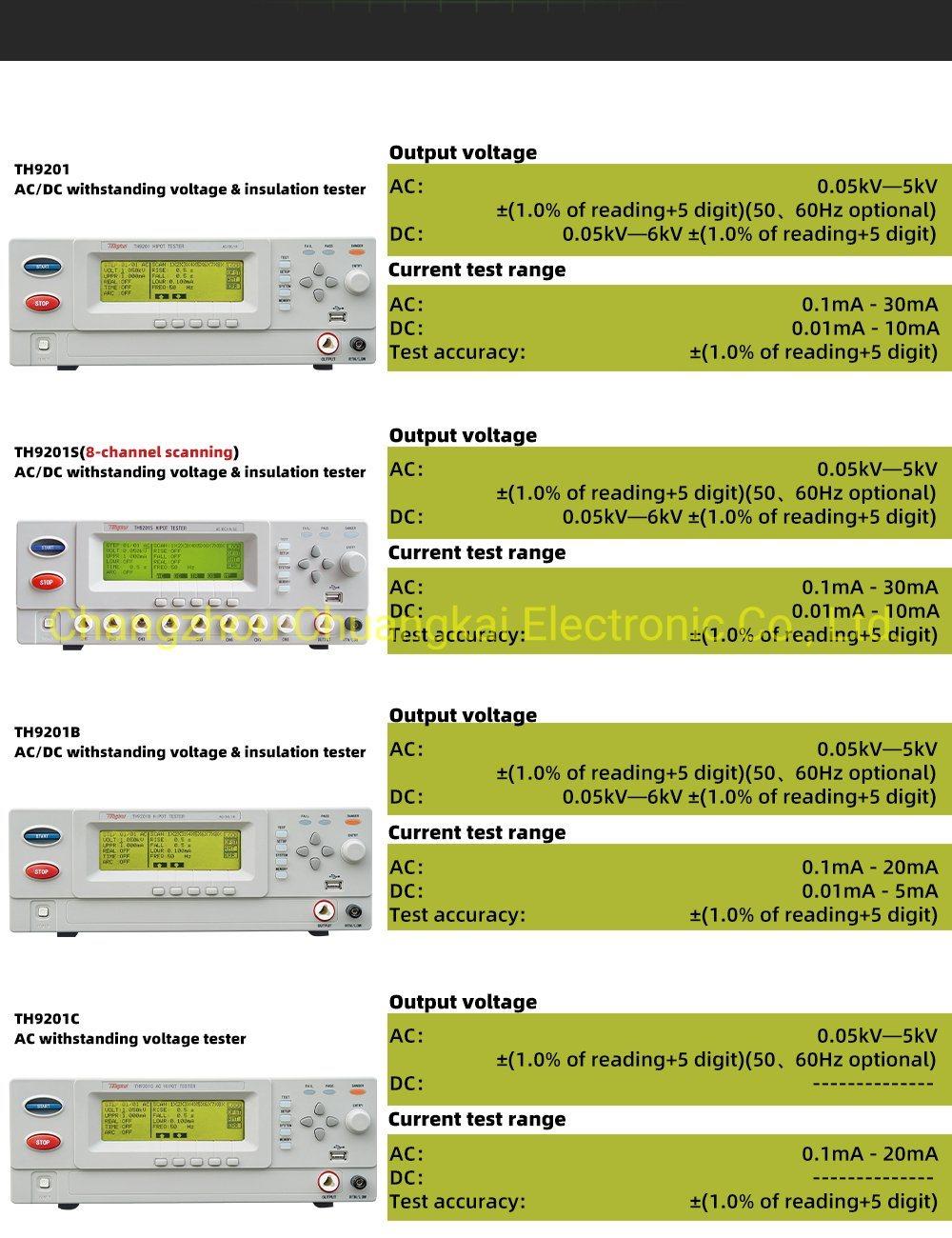

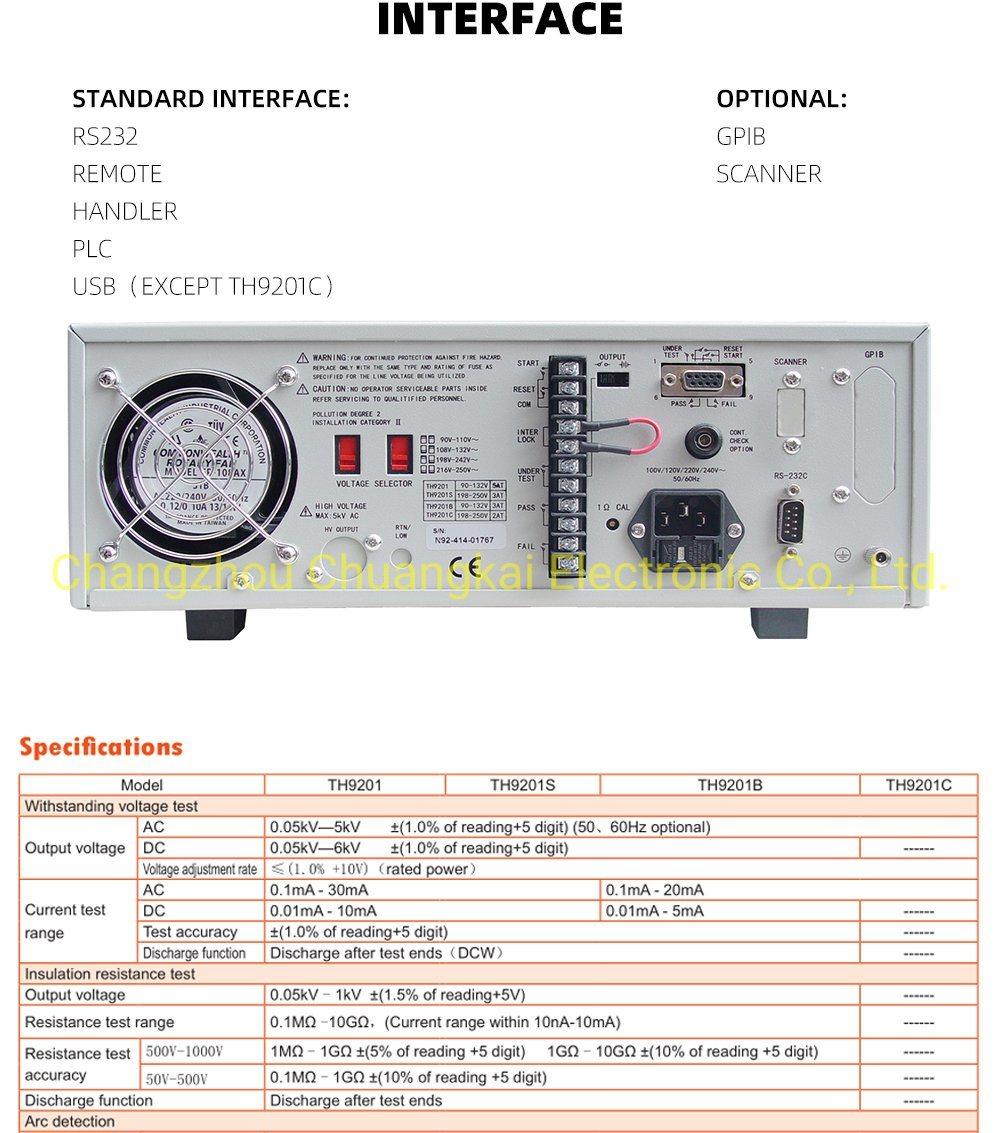

ModelTH9201TH9201STH9201BTH9201CWithstanding voltage test  Output VoltageAC0.05kV-5kV       ±(1.0% of reading+5 digit) (50,60Hz optional) DC0.05kV-6kV       ±(1.0% of reading+5 digit)------Voltage Adjustment Rate≤(1.0% +10V)(rated power) Current Test RangeAC0.1mA - 30mA     0.1mA - 20mA  DC0.01mA - 10mA   0.01mA - 5mA  Test Accuracy±(1.0% of reading+5 digit)Discharge FunctionDischarge after test ends(DCW)Insulation Resistance Test  Output Voltage0.05kV - 1kV  ±(1.5% of reading+5V)------Resistance Test Tange0.1MΩ -10GΩ,(Current range within 10nA-10mA)------Resistance Test Accuracy500V-1000V1MΩ - 1GΩ ±(5% of reading +5 digit)     1GΩ - 10GΩ ±(10% of reading +5 digit)  ------50V-500V0.1MΩ - 1GΩ ±(10% of reading +5 digit)------Discharge FunctionDischarge after test ends------Arc Detection  Measurement RangeAC1mA - 15mA DC1mA - 10mA1mA - 5mA------General Specification  8-channel Matrix Scanner------available------ Memory50groups, 100 steps per group, totally 500 steps Voltage Rise-time0.1s - 999s Voltage Fall-time0.1s - 999s Voltage Wait-time0.1s - 99.9s (only for DC)------Test Time Setting0.3s - 999s Interface  StandardRS232,USB,HANDLER,REMOTE I/O ,SCAN OptionsGPIB Detailed Photos

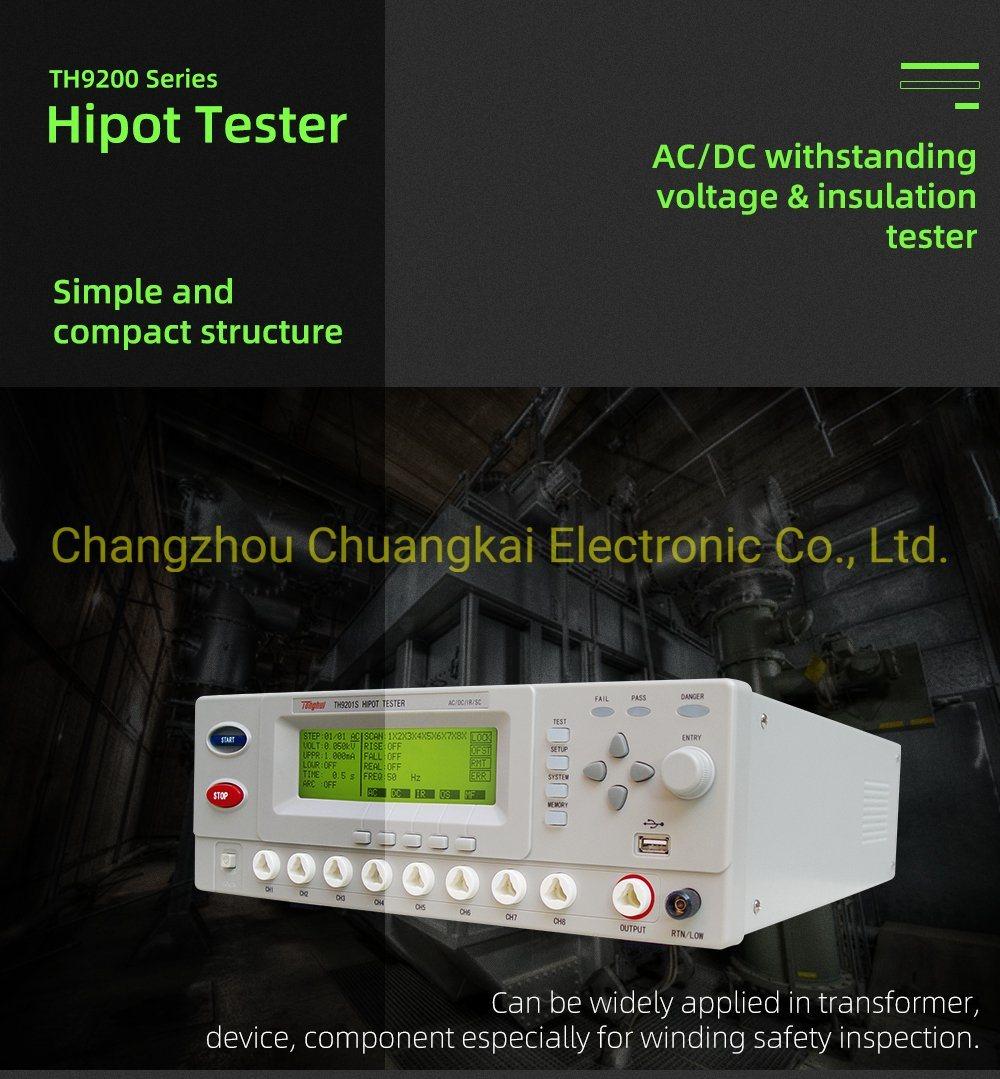

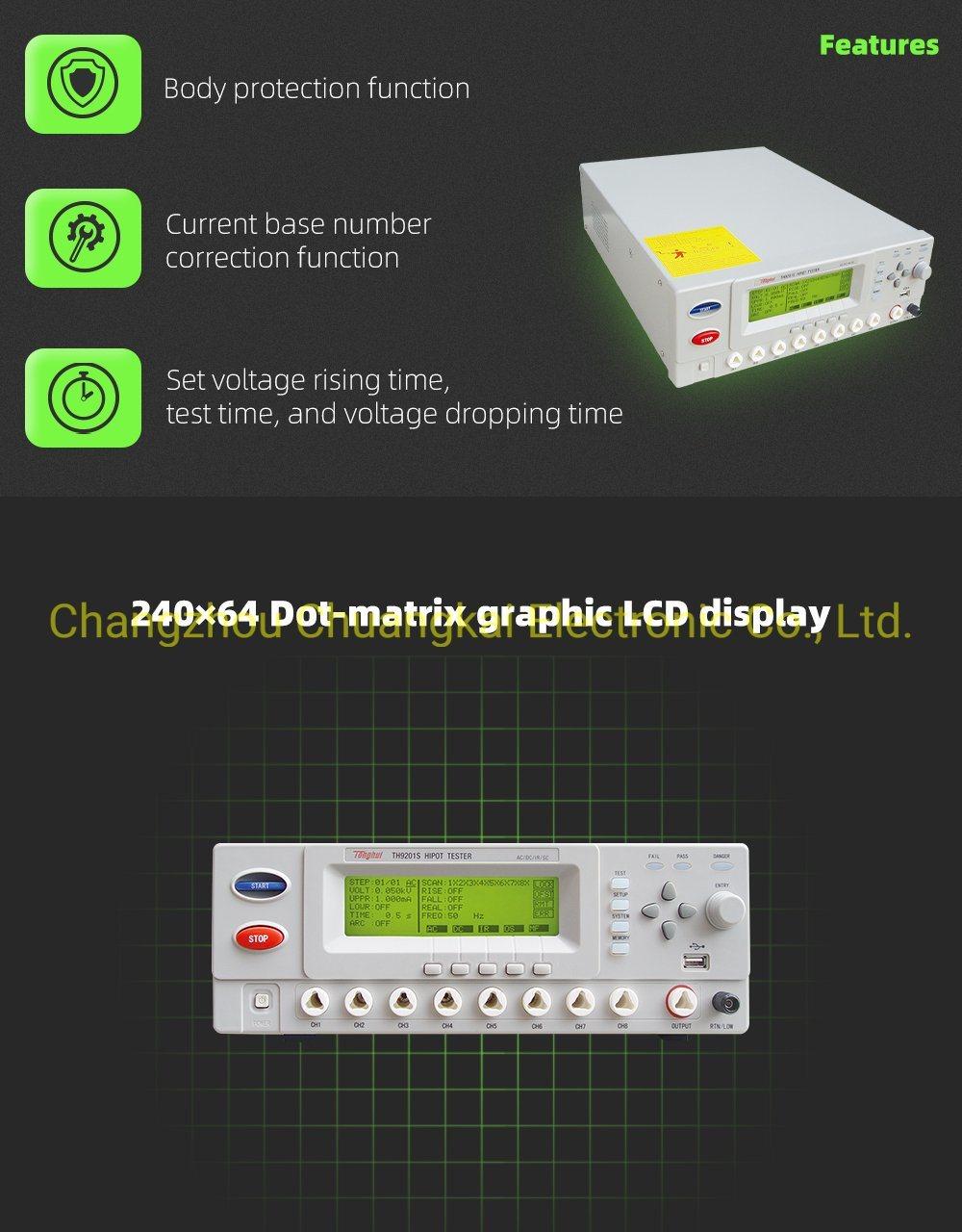

Th9201b Safety Tester AC/DC Withstanding Voltage & Insulation Tester
Th9201b Safety Tester AC/DC Withstanding Voltage & Insulation Tester
Th9201b Safety Tester AC/DC Withstanding Voltage & Insulation Tester
Th9201b Safety Tester AC/DC Withstanding Voltage & Insulation Tester
Th9201b Safety Tester AC/DC Withstanding Voltage & Insulation Tester
Th9201b Safety Tester AC/DC Withstanding Voltage & Insulation Tester
Th9201b Safety Tester AC/DC Withstanding Voltage & Insulation Tester

Th9201b Safety Tester AC/DC Withstanding Voltage & Insulation Tester
Th9201b Safety Tester AC/DC Withstanding Voltage & Insulation Tester



Th9201b Safety Tester AC/DC Withstanding Voltage & Insulation TesterPackaging & Shipping

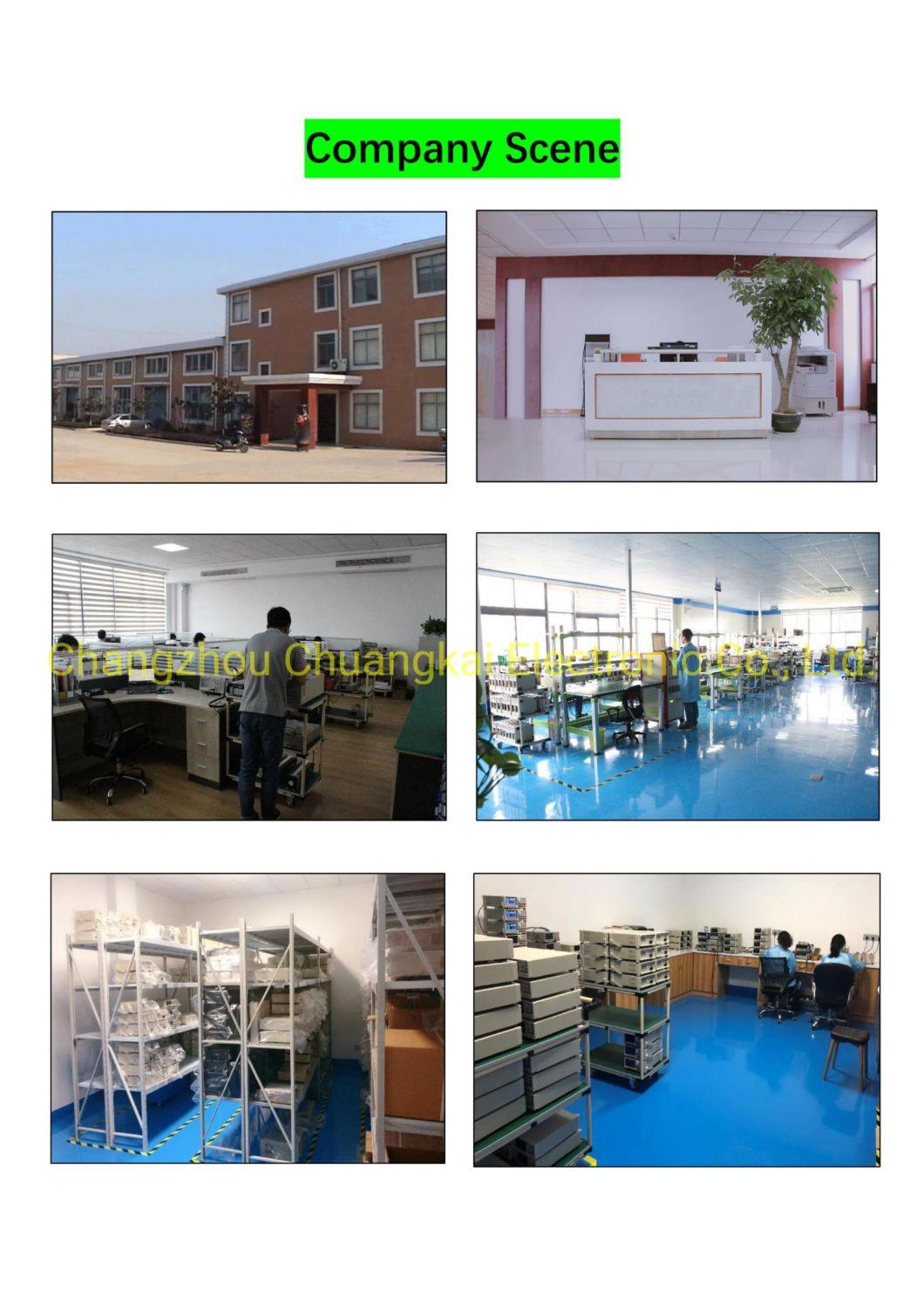

Company Profile
