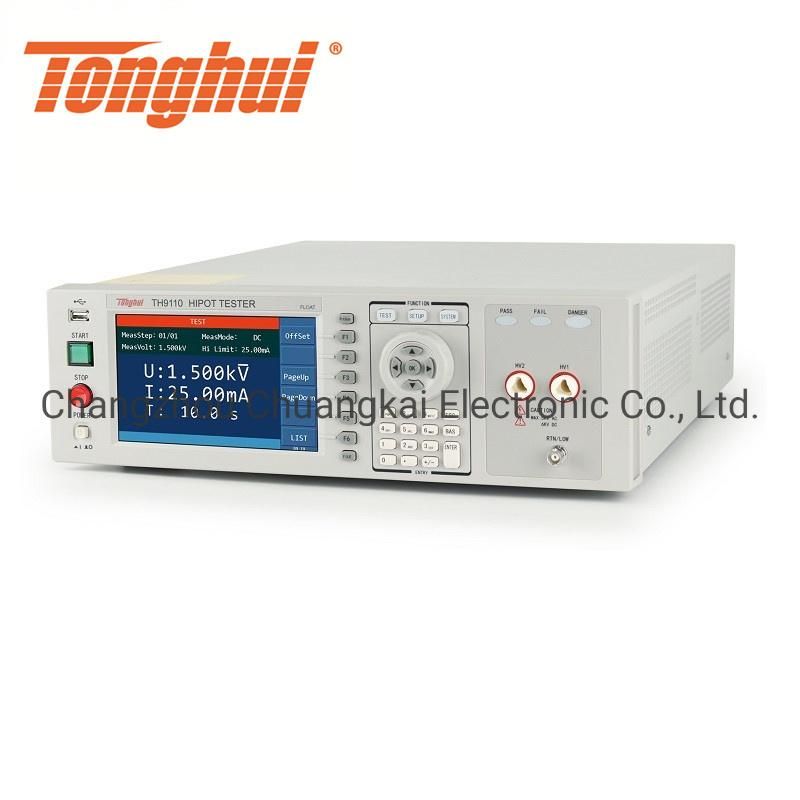

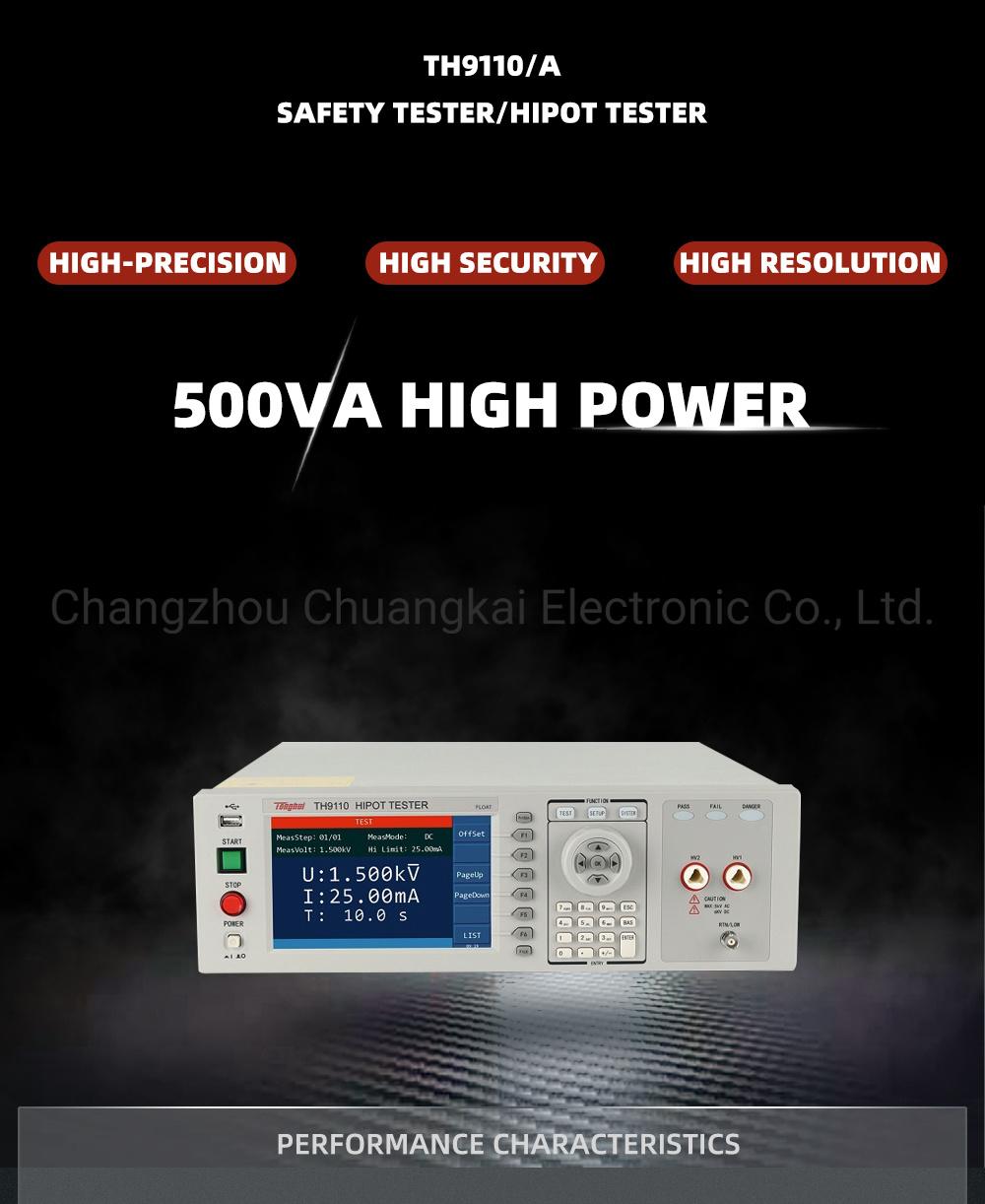

• Model NO.：TH9110
• Voltage Rising Time：0.1s - 999.9s
• Test Time Setting (AC/DC)：0.3s -999s
• Voltage Fall Time：0.1s-999.9s
• Waiting Time (IR)：0.2s - 999.9s
• Discharge Function：Automatic Discharge After The End of The Test
• Resistance Test Range：1m Ohm-50.0g Ohm. Resolution: 0.1mohm
• Dimension (mm) and Weight：430(W)X132(H)X500(D),21kg
• Memory：100 Groups, 50 Steps Per Group
• High Voltage Floating Output：Yes
• Alarm Indication：Pass: Short Tone, Green Light; Fail: Long Tone, Re
• Transport Package：Carton
• Specification：59x56x36cm
• Trademark：CKT
• Origin：China
• HS Code：9030332000
• Production Capacity：3000 Sets Per Month
• Package size per unit product：59.00cm * 56.00cm * 36.00cm
• Gross weight per unit product：21.000kg
• Lead Time：20 days (1 - 1 set) To be negotiated ( > 1 set)

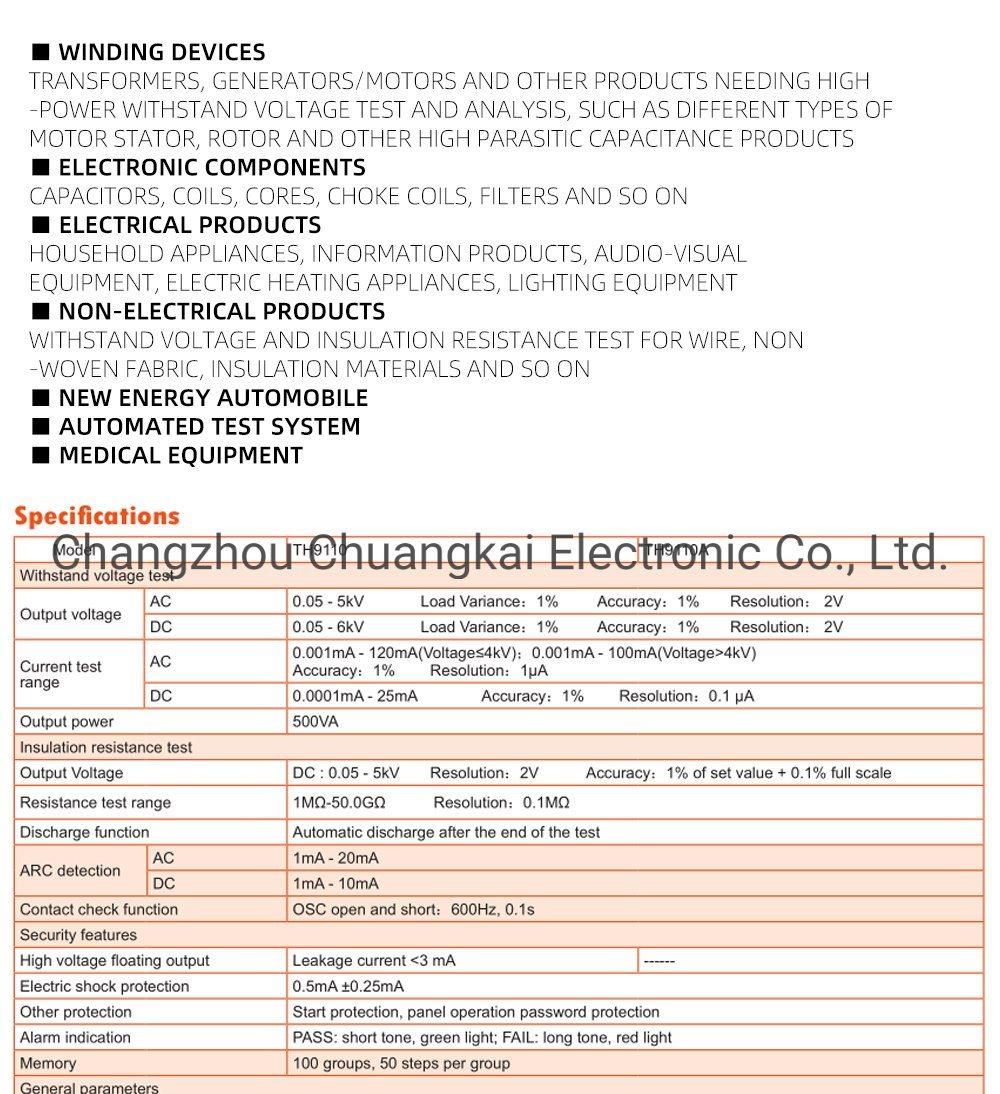

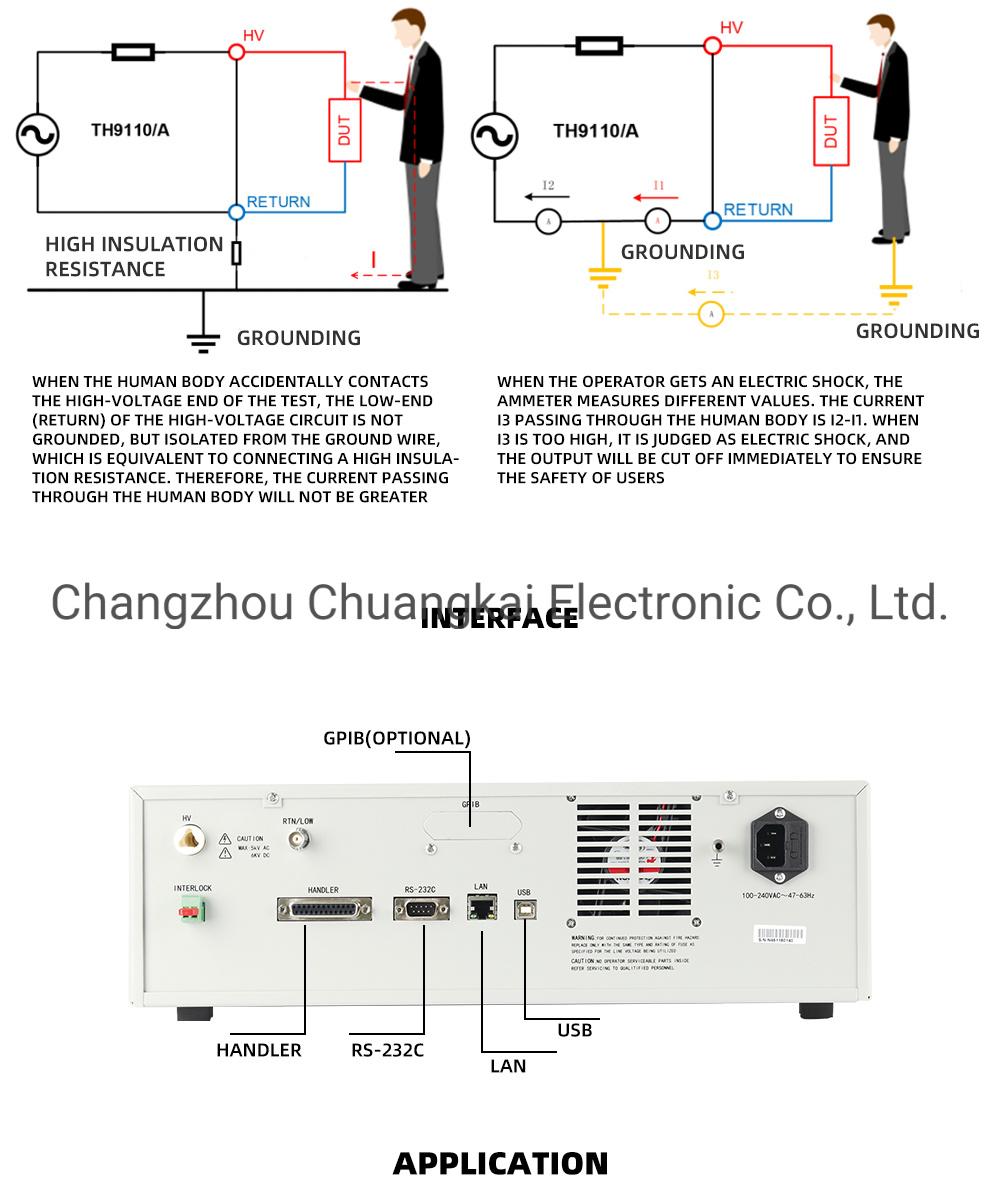

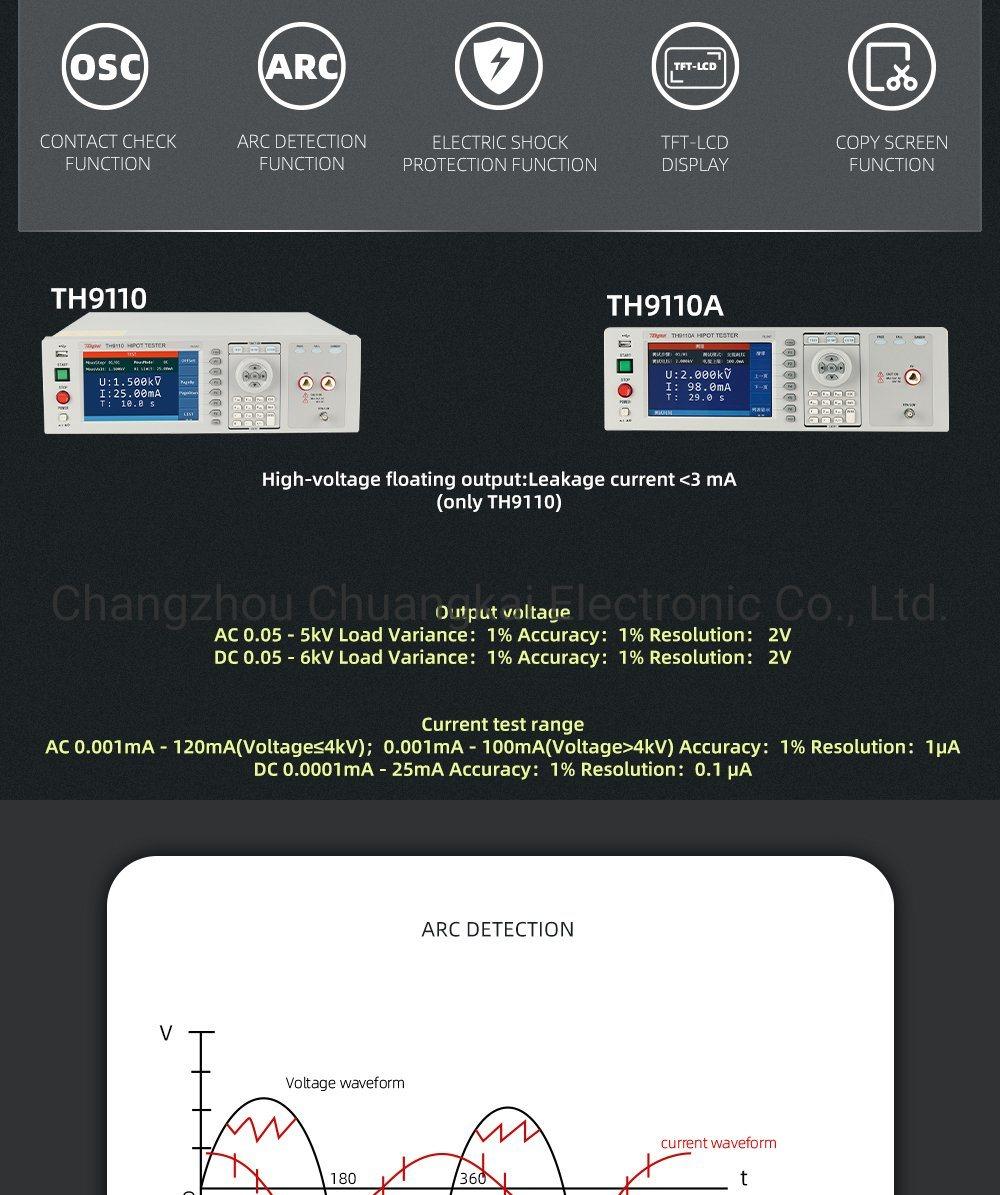

ModelTH9110TH9110AWithstand Voltage Test Output VoltageAC0.05 - 5kV             Load Variance:1%         Accuracy:1%       Resolution: 2VDC0.05 - 6kV             Load Variance:1%         Accuracy:1%       Resolution: 2VCurrent Test RangeAC0.001mA - 120mA(Voltage≤4kV);0.001mA - 100mA(Voltage>4kV) Accuracy:1%        Resolution:1μA  DC0.0001mA - 25mA               Accuracy:1%        Resolution:0.1 μAOutput Power500VAInsulation Resistance Test Output Voltage: 0.05 - 5kV       Resolution:2V           Accuracy:1% of set value + 0.1% full scaleResistance Test Range1MΩ-50.0GΩ           Resolution:0.1MΩDischarge FunctionAutomatic discharge after the end of the testARC DetectionAC1mA - 20mADC1mA - 10mAContact Check FunctionOSC open and short:600Hz, 0.1sSecurity Features High Voltage Floating OutputLeakage current <3 mA------Electric Shock Protection0.5mA ±0.25mAOther ProtectionStart protection, panel operation password protectionAlarm IndicationPASS: short tone, green light; FAIL: long tone, red lightMemorygroups, 50 steps per groupGeneral Parameters Voltage Rise Time0.1s - 999.9sTest Time Setting(AC/DC)0.3s - 999sVoltage Fall Time0.1s - 999.9sWaiting Time (IR)0.2s - 999.9sTime Accuracy±(1%+0.1s) Detailed Photos














Packaging & Shipping

https://ckt2017.en.made-in-china.com/product-list-1.html

Company Profile

https://ckt2017.en.made-in-china.com/company-Changzhou-Chuangkai-Electronic-Co-Ltd-.html

Chuangkai Electronic Co., Ltd is leading company specialized in producing, developing & selling various types of measuring instruments and testing equipment, such as temperature data logger, LCR meter, DC resistance tester (micro ohm meter), digital power meter, power supply, transformer tester, battery tester, programmable DC electronic load, charger, temperature controller, tachometer, high voltage signal-amplifier, power amplifier, etc.

FAQ:
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales teams that can respond to you within 24 hours to resolve technical issues. We provide one-to-one after-sales service.

Q: Can you customize it?
A: Yes, we accept customization according to customer's specific requirements.

Q. How long is your lead time? If I want to customize instruments, how long will it take?
A. When order quantity is 1-10 units, we have ready stock goods, we can ship out within 3-5 working days after receipt of deposit; products required new production of common materials, usually the lead time is about 10-15 days; products requiring new production of special and rare materials, usually the lead time is about 20-30 days.

Q. What payment method do you accept?
A. Our company accept payment method of T/T (bank transfer), Western Union, PayPal and so on.

Q. What package do you use for your products? What shipping method do you use?
A.1. Our company use standard exporting carton for packing. 2. We ship via express courier (door to door service), by air, and by sea according to customers' requirements.

For more questions, please feel free to send inquiries to us.
