• Model NO.：TH6201

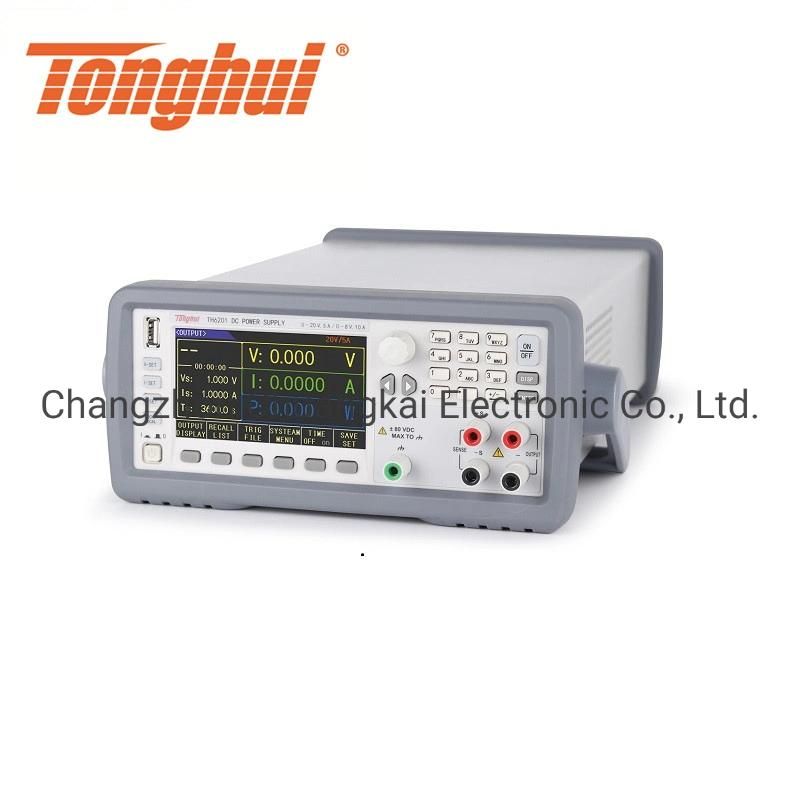

• Product Name：Th6201 Double Range Programmable DC Power Source
• Application：R & D and Design Verification Common Test
• Transport Package：Carton
• Specification：59x36x25cm
• Trademark：CKT
• Origin：China
• HS Code：9030339000
• Production Capacity：3000 Sets Per Month

Overview Product Description

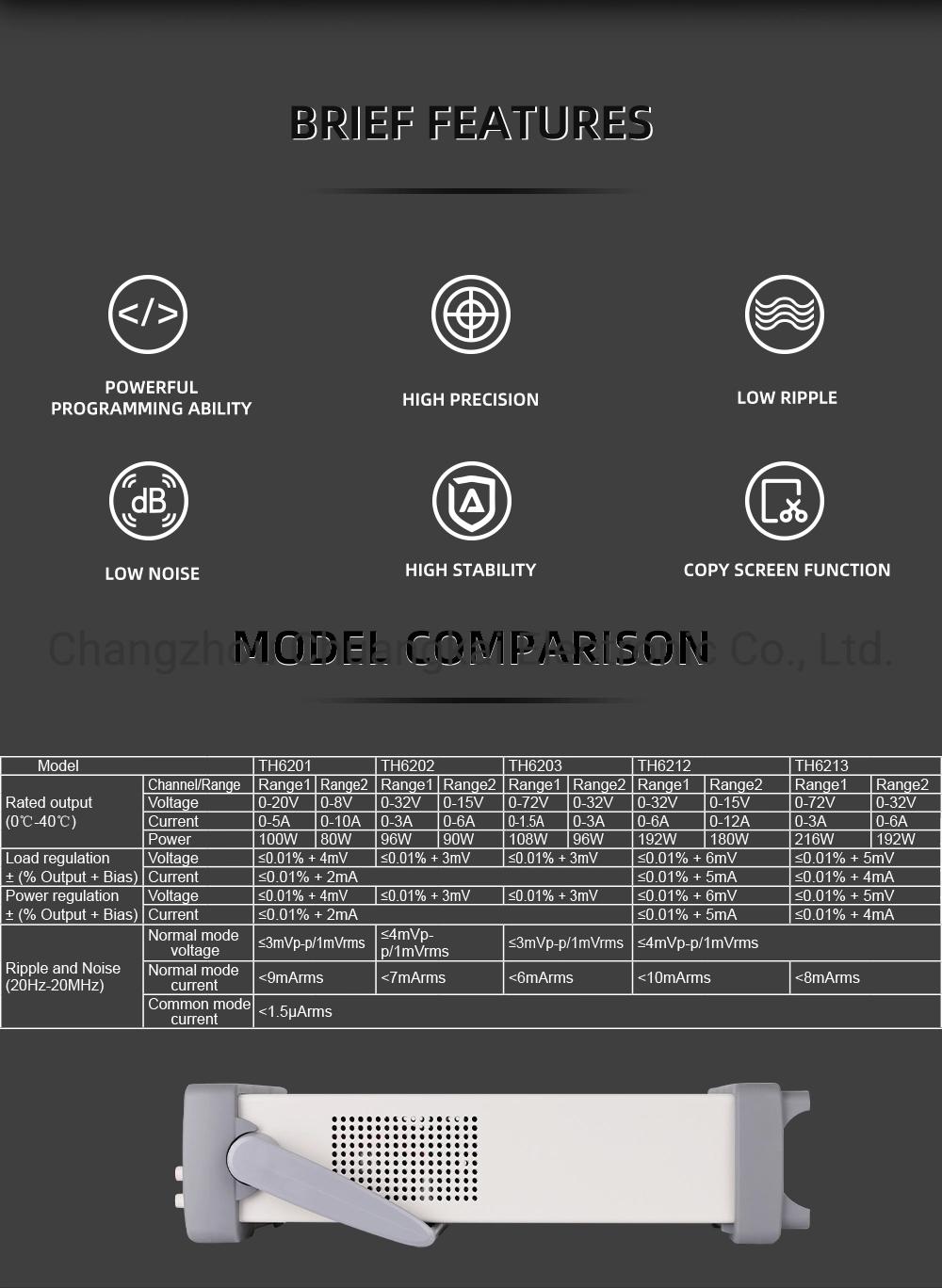

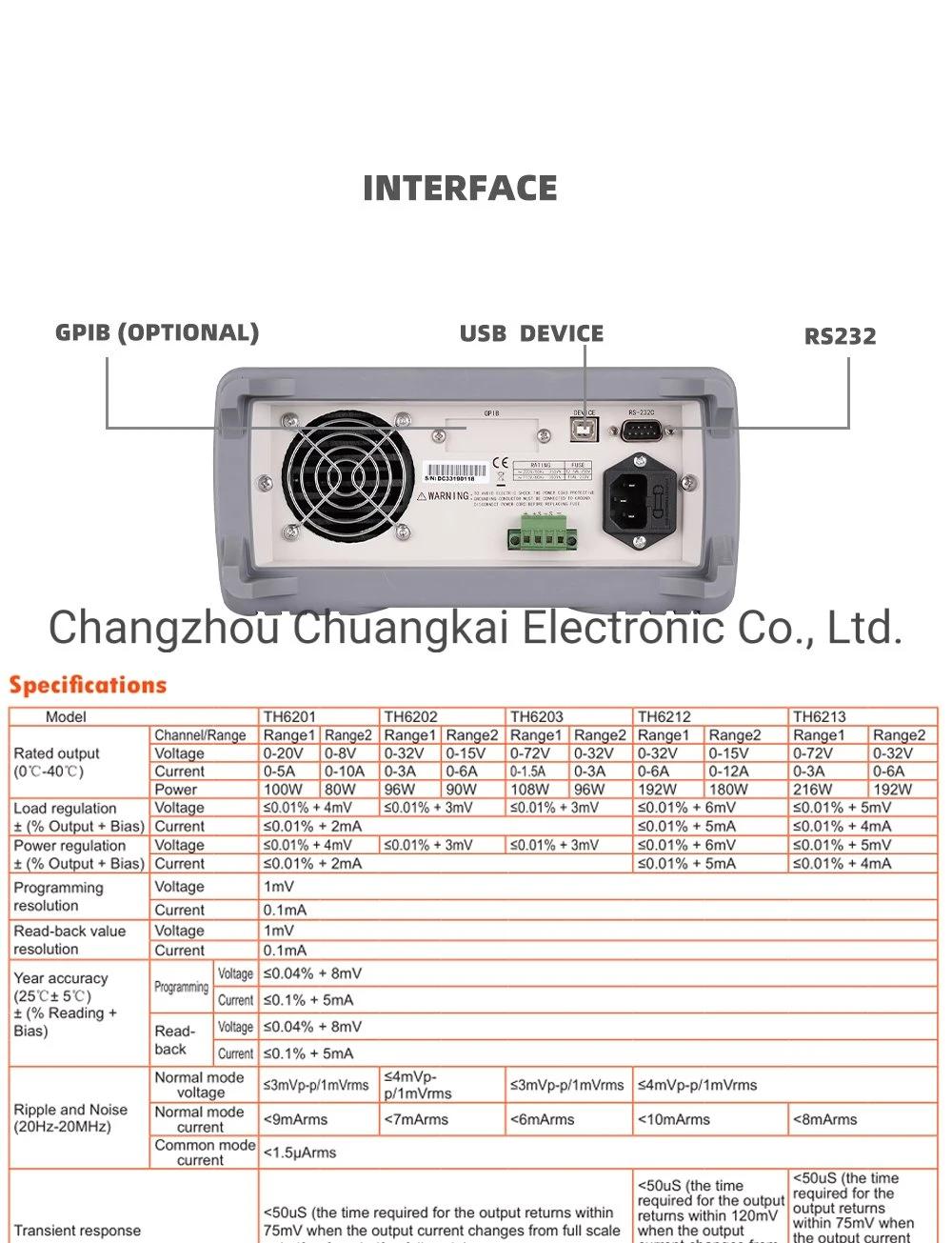

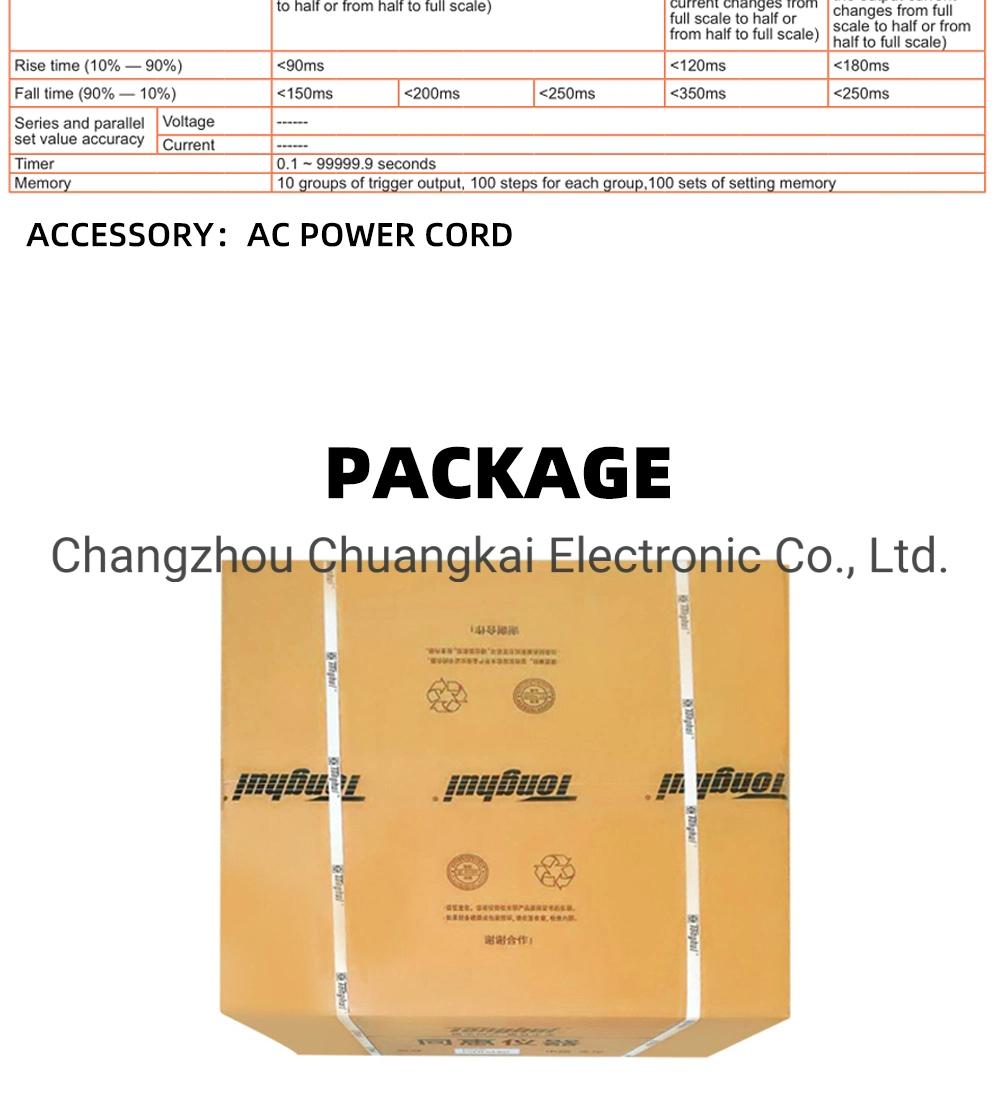

ModelTH6201TH6202TH6203TH6212TH6213Rated Output (0ºC-40ºC)Channel/RangeRange1Range2Range1Range2Range1Range2Range1Range2Range1Range2Voltage0-20V0-8V0-32V0-15V0-72V0-32V0-32V0-15V0-72V0-32VCurrent0-5A0-10A0-3A0-6A0-1.5A0-3A0-6A0-12A0-3A0-6APower100W80W96W90W108W96W192W180W216W192WLoad Regulation± (% Output + Bias)Voltage≤0.01% + 4mV≤0.01% + 3mV≤0.01% + 3mV≤0.01% + 6mV≤0.01% + 5mVCurrent≤0.01% + 2mA≤0.01% + 5mA≤0.01% + 4mAPower Regulation± (% Output + Bias)Voltage≤0.01% + 4mV≤0.01% + 3mV≤0.01% + 3mV≤0.01% + 6mV≤0.01% + 5mVCurrent≤0.01% + 2mA≤0.01% + 5mA≤0.01% + 4mAProgramming ResolutionVoltage1mVCurrent0.1mARead-back Value ResolutionVoltage1mVCurrent0.1mAYear Accuracy(25ºC± 5ºC)± (% Reading +Bias)ProgrammingVoltage≤0.04% + 8mVCurrent≤0.1% + 5mAReadbackVoltage≤0.04% + 8mVCurrent≤0.1% + 5mARipple and Noise (20Hz-20MHz)Normal Mode Voltage≤3mVp-p/1mVrms≤4mVpp/1mVrms≤3mVp-p/1mVrms≤4mVp-p/1mVrmsNormal Mode Current<9mArms<7mArms<6mArms<10mArms<8mArmsCommon Mode Current<1.5µArmsTransient Response<50uS (the time required for the output returns within 75mV when the output current changes from full scale to half or from half to full scale)<50uS (the time required for the output returns within 120mV when the output current changes from full scale to half or from half to full scale)<50uS (the time required for the output returns within 75mV when the output current changes from full scale to half or from half to full scale)Rise Time (10% - 90%)<90ms<120ms<180msFall Time (90% - 10%)<150ms<200ms<250ms<350ms<250msSeries and Parallel Set Value AccuracyVoltage------Current------Timer0.1 ~ 99999.9 secondsMemory10 groups of trigger output, 100 steps for each group,100 sets of setting memory Detailed Photos












Packaging & Shipping

https://ckt2017.en.made-in-china.com/company-Changzhou-Chuangkai-Electronic-Co-Ltd-.html

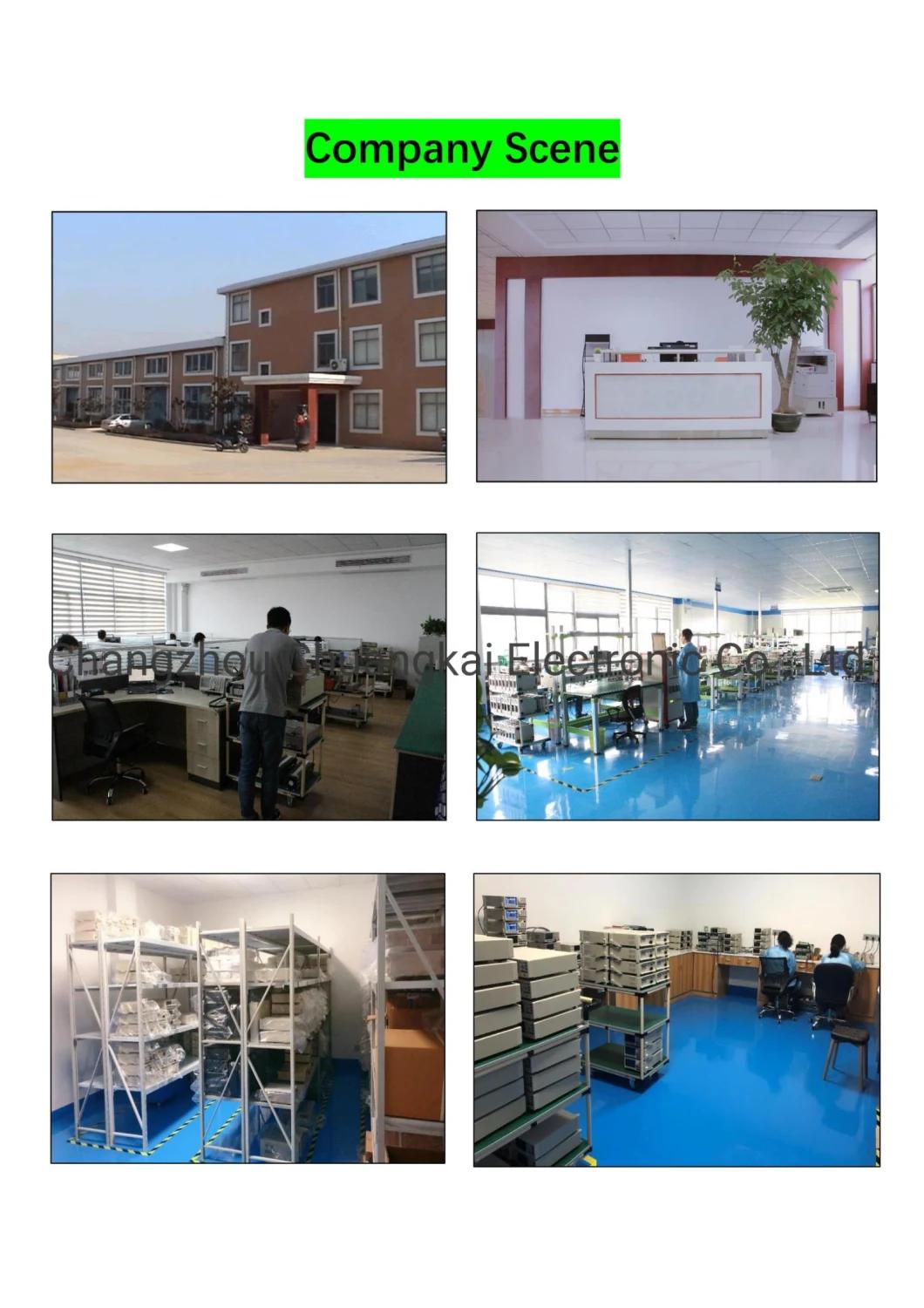

Company Profile

https://ckt2017.en.made-in-china.com/contact-info.html

Chuangkai Electronic Co., Ltd is leading company specialized in producing, developing & selling various types of measuring instruments and testing equipment, such as temperature data logger, LCR meter, DC resistance tester (micro ohm meter), digital power meter, power supply, transformer tester, battery tester, programmable DC electronic load, charger, temperature controller, tachometer, high voltage signal-amplifier, power amplifier, etc.

FAQ:
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales teams that can respond to you within 24 hours to resolve technical issues. We provide one-to-one after-sales service.

Q: Can you customize it?
A: Yes, we accept customization according to customer's specific requirements.

Q. How long is your lead time? If I want to customize instruments, how long will it take?
A. When order quantity is 1-10 units, we have ready stock goods, we can ship out within 3-5 working days after receipt of deposit; products required new production of common materials, usually the lead time is about 10-15 days; products requiring new production of special and rare materials, usually the lead time is about 20-30 days.

Q. What payment method do you accept?
A. Our company accept payment method of T/T (bank transfer), Western Union, PayPal and so on.

Q. What package do you use for your products? What shipping method do you use?
A.1. Our company use standard exporting carton for packing. 2. We ship via express courier (door to door service), by air, and by sea according to customers' requirements.

For more questions, please feel free to send inquiries to us.
