Electronic Touch Screen Box Drop Test/Testing Machine
Dongguan Haida Equipment Co., Ltd.- Type：Drop Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
- Loading Method：Dynamic Load
- Display：Digital
Base Info
- Model NO.：HD-A520
- Control：Computer Control
- Weight：100-500Kg
- Power Source：AC220V
- Design Criteria：ISO, JIS, Ista
- Drop Height：300 to 1500mm (Adjustable)
- Standard Drop Weight：60kg ( Can Custom )
- Product Name：Single Wing Box Drop Test Machine
- Delivery Time：15 Days After Receive The Deposit
- Display Method：Digital Height Indicator (Optional)
- Drop Panel Area (W* L)：1700*1400 mm
- Specimen Max. Size(L*W* H)：1000*700*1000 mm
- Arm Size：290* 240* 8 mm
- Drop Flat Deviation：< 1 Degree
- Transport Package：Strong Wooden Case
- Specification：ISO 2248, JIS Z0202-87, GB,T4857.5-92
- Trademark：Haida
- Origin：China
- HS Code：9024109000
- Production Capacity：150 Sets Per Month
Description
Features:
1. Outside material: advanced paint coat

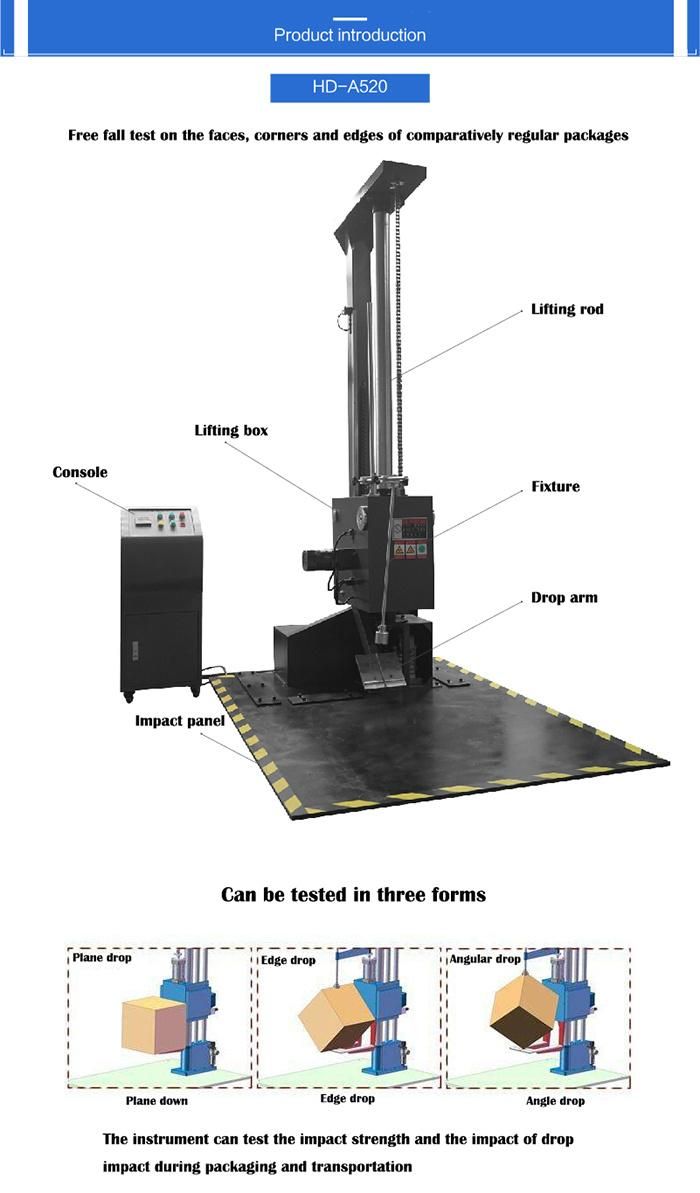

2. Power system: drive device (imported motor + speed reducer +Axel+ upper and lower limitation + spring +electromagnet)+ dropping device(dropping standard board +magnet + safety spacing push rod + automatic return back + digital alto-meter +encoder + hydraulic pressure buffering device)

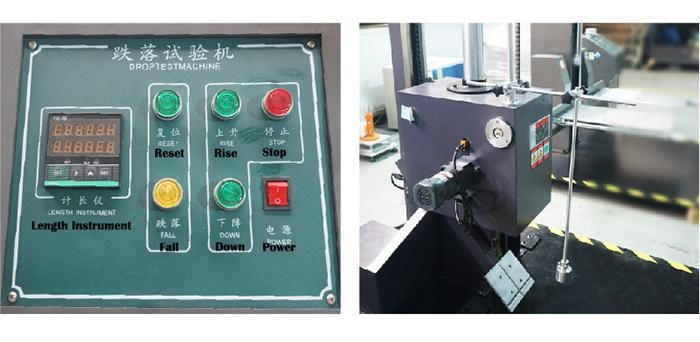

3. Control system: adopting electromagnet sensor control, the interface is easy to operate, high degree automatic control
4. Safety device: upper and lower limitation device, automatic off-power device if electricity leakage occurs
Configuration:
1. Outside material: Advanced paint coat
2. Display: LCD display
3. Power system: Drive device(imported motor + speed reducer +Axel+ upper and lower limitation + spring +electromagnet)+ dropping device(dropping standard board +magnet + safety spacing push rod + automatic return back + digital alto-meter +encoder + hydraulic pressure buffering device)
4. Control system: Adopting electromagnet sensor control, the interface is easy to operate, high degree automatic control
5. Safety device: Upper and lower limitation device, automatic off-power device if electricity leakage occurs
6. Accessories: Electric wire 1 piece, guarantee certificate 1 piece, operational manual 1 piece
The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
Packaging & Shipping:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
