• Model NO.：HJ-13
• Weight：100-500Kg
• Power Source：AC220V
• Controller：Full Computer Operation
• Maximum Force：Optional Within 50kn
• Effective Itinerary：900mm
• Double Column Width：425mm
• Features：Full Computer Control, Curve, Displacement, Report
• Speed：0.01~500mm,Min
• Force Display Accuracy：0.001kg
• Equipment Level：0.5 Level
• Motor：Servo
• Transmission：Ball Screw Rod
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-13 Weight 100-500Kg Power Source AC220V Controller Full Computer Operation Maximum Force Optional Within 50kn Effective Itinerary 900mm Double Column Width 425mm Features Full Computer Control, Curve, Displacement, Report Speed 0.01~500mm/Min Force Display Accuracy 0.001kg Equipment Level 0.5 Level Motor Servo Transmission Ball Screw Rod Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Films
Rigid films, shrik films, stretch films, plastic films, plastic composite films, paper-plastic composite films,aluminized films, aluminum foil, aluminum composite films, high barrier films and many others. Eg. PET, OPP, CPP, LDPE, BOPP

Mainly suitable for testing of metal and non-metal materials, such as rubber, plastic, wire and cable, fiber optic cable, seat belts, safety belts, leather belt composite materials, plastic profiles, waterproof coils, steel pipes, copper materials, profiles, spring steel , Bearing steel, stainless steel (and other high-hardness steels), castings, steel plates, steel strips, non-ferrous metal wires for stretching, compression, bending, shearing, peeling, tearing, two-point extension (extensometer required) And many other tests.

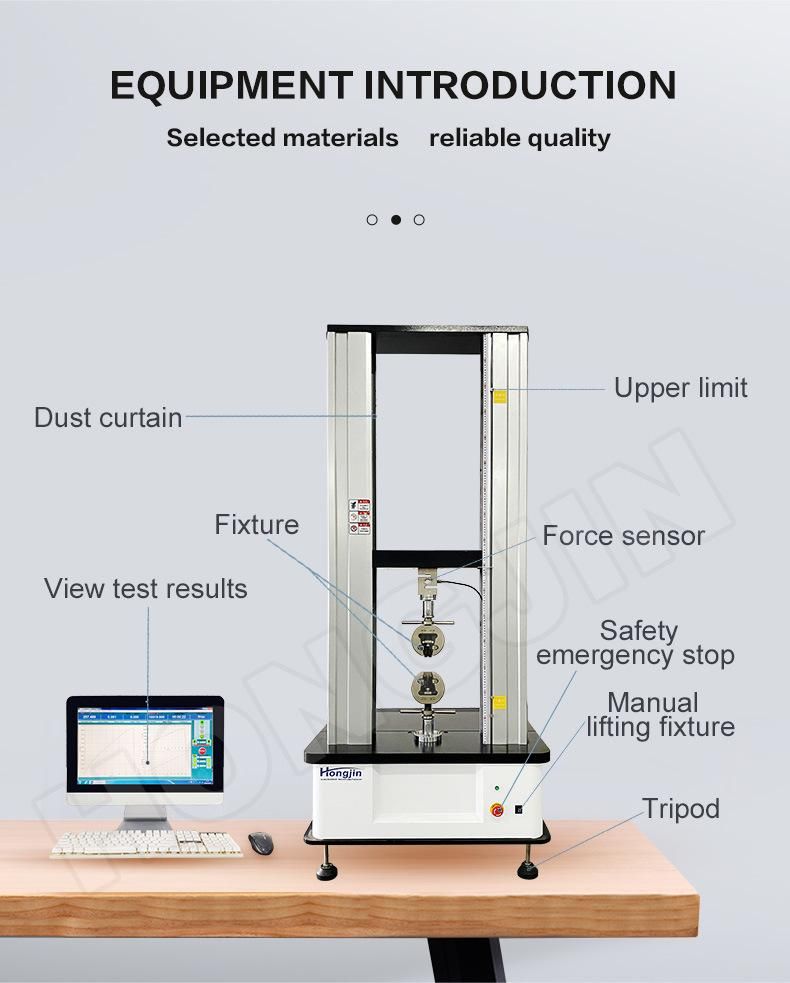

This machine adopts mechatronics design and is mainly composed of load cell, transmitter, microprocessor, load drive mechanism, computer and color inkjet printer. It has a wide and accurate loading speed and force measurement range, and has high accuracy and sensitivity in the measurement and control of load and displacement. It can also carry out automatic control tests of constant velocity loading and constant velocity displacement. Floor-standing models, styling and painting are fully considered the relevant principles of modern industrial design and ergonomics.

Features
This product can test the tensile, compressive strength, elongation, and elongation of various materials, semi-finished products and finished products, and can be used for peeling, tearing, bending, bending, and compression tests. It is suitable for paper, cardboard, and packaging. Film, adhesive tape and other materials quality testing. The testing machine measurement and control system is a measurement and control system designed for microcomputer electronic universal testing machines, microcomputer hydraulic universal testing machines, and microcomputer presses. It can be stretched, compressed, bent, sheared, and torn. Cracking and peeling test. PC and interface board are used for data collection, storage, processing and printing of test results. The maximum force, yield force, average peel force, maximum deformation, yield point, elastic modulus and other parameters can be calculated; Curve processing, multi-sensor support, graphical interface, flexible data processing, and MS-ACCESS database support make the system more powerful.

Executive standard:
ASTM   DIN    JIS   BS   GB/T528-1998  /T529-1999

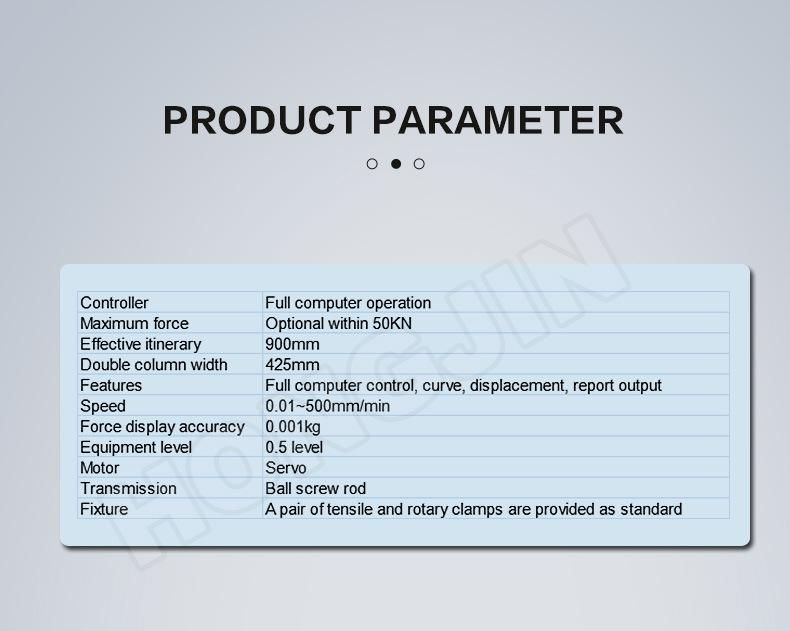

Technical Parameter of Tensile Testing Machine

Controller	Full computer operation
Maximum force	Optional within 50KN
Effective itinerary	900mm
Double column width	425mm
Features	Full computer control, curve, displacement, report output
Speed	0.01~500mm/min
Force display accuracy	0.001kg
Equipment level	0.5 level
Motor	Servo
Transmission	Ball screw rod

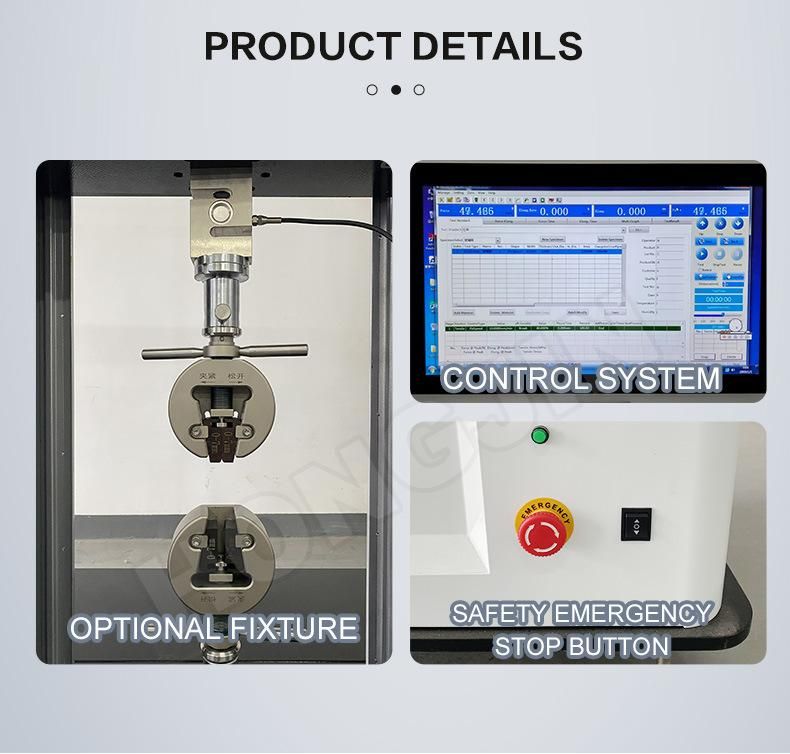

Fixture	A pair of tensile and rotary clamps are provided as standard
