• Model NO.：HJ-29
• Power Source：AC220V
• Capacity Selection：1.2.5.10.20.50.100.200.500kg
• Load Cell Accuracy：0.50%
• Test Stroke：Maximum 650mm
• Test Speed：0.1 ~1000mm,Min Can Be Adjusted Arbitrarily
• Power：AC Servo Motor
• Extension Unit：mm.Cm.in.%
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-29 Power Source AC220V Capacity Selection 1.2.5.10.20.50.100.200.500kg Load Cell Accuracy 0.50% Test Stroke Maximum 650mm Test Speed 0.1 ~1000mm/Min Can Be Adjusted Arbitrarily Power AC Servo Motor Extension Unit mm.Cm.in.% Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Plastic Material Tensile Strength Tester is to test the traction, stripping, sealing, tear, piercing, compression, bending and cutting of plastic film, composite film, tape, soft packaging material, rubber sheets, paper, non-woven fabrics and other packaging materials, widely used in industries of plastic films, packaging, pharmaceuticals, food, inspection agency, research institute, college and so on.

Features
This product can test the tensile strength, compressive strength and elongation, elongation rate of various materials, semi-finished products and finished products, and can be used for peeling, tearing, bending, compression and other tests. It is suitable for metal, plastic, rubber, textiles, Used in synthetic chemical products, wire and cable, leather and other industries.

Product use/standard
Mainly suitable for testing of metal and non-metal materials, such as rubber, plastic, wire and cable, fiber optic cable, seat belts, safety belts, leather belt composite materials, plastic profiles, waterproof coils, steel pipes, copper materials, profiles , spring steel , Bearing steel, stainless steel (and other high-hardness steels), castings, steel plates, steel strips, non-ferrous metal wires for stretching, compression, bending, shearing, peeling, tearing, two-point extension (extensometer required) And many other tests.

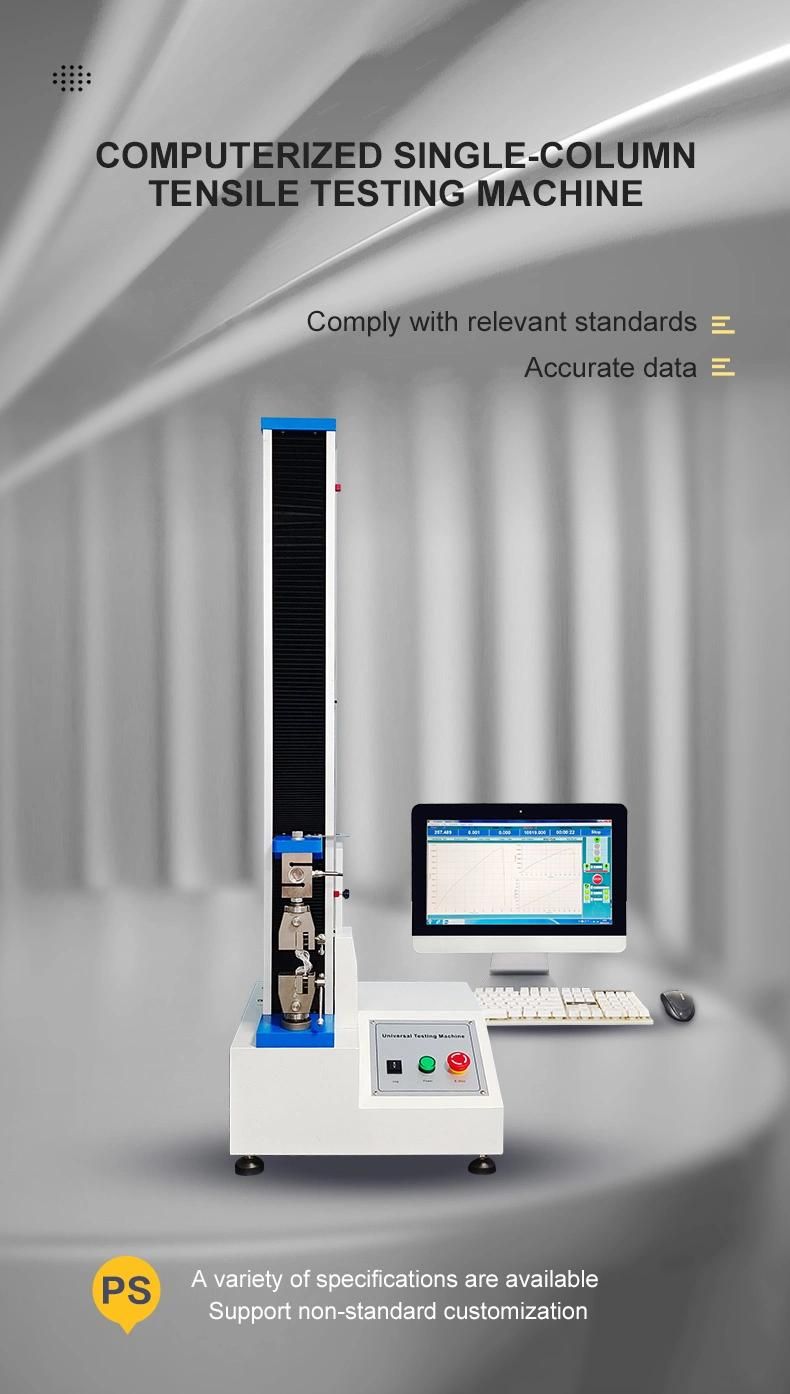

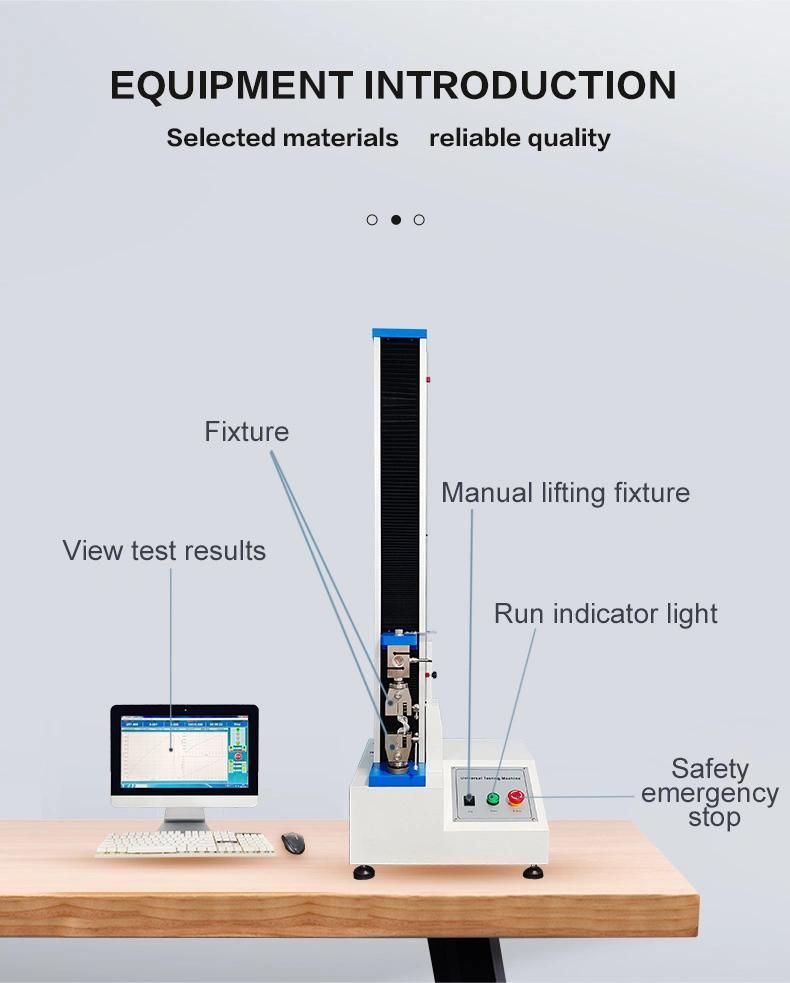

This machine adopts mechatronics design and is mainly composed of load cell, transmitter, microprocessor, load drive mechanism, computer and color inkjet printer. It has a wide and accurate loading speed and force measurement range, and has high accuracy and sensitivity in the measurement and control of load and displacement. It can also carry out automatic control tests of constant velocity loading and constant velocity displacement. Floor-standing models, styling and painting are fully considered the relevant principles of modern industrial design and ergonomics.

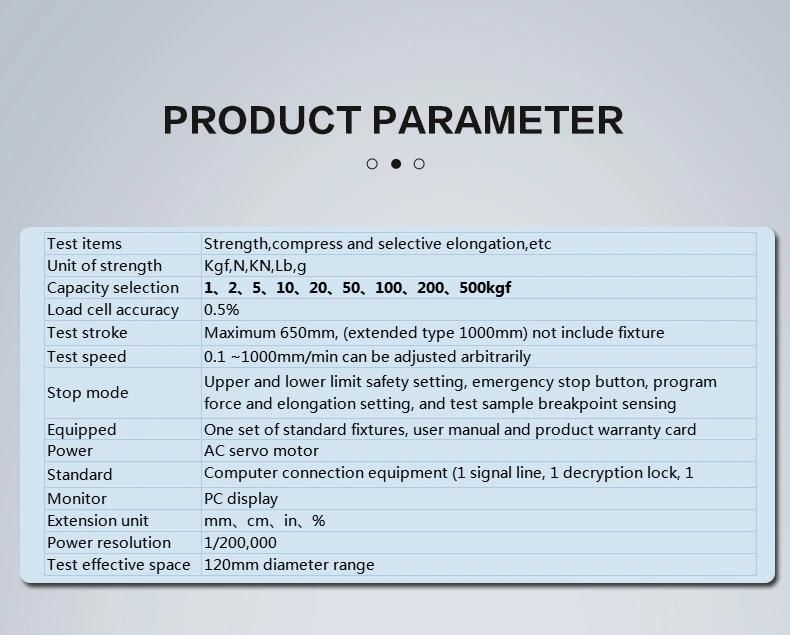

Test items	Strength,compress and selective elongation,etc
Unit of strength	Kgf,N,KN,Lb,g
Capacity selection	1,2,5,10,20,50,100,200,500kgf
Load cell accuracy	0.5%
Test stroke	Maximum 650mm, (extended type 1000mm) not include fixture
Test speed	0.1 ~1000mm/min can be adjusted arbitrarily
Stop mode	Upper and lower limit safety setting, emergency stop button,  program force and elongation setting, and test sample breakpoint sensing
Equipped	One set of standard fixtures, user manual and product warranty card
Power	AC servo motor
Standard	Computer connection equipment (1 signal line, 1 decryption lock, 1 program CD)
Monitor	PC display
Extension unit	mm,cm,in,%
Power resolution	1/200,000
Test effective space	120mm diameter range
