• Model NO.：48-B0192
• Power Source：None
• Weight：29kg
• Installation：Portable Precise
• Customized：Non-Customized
• Rocker Weight：1500+,-30 G
• Distance Between Rocking Centre and Cent：410+,-5 Mm
• Positive Static Pressure on Pavement：22.2+,-0.5 Kn
• Transport Package：Package
• Specification：EN 13036-4
• Trademark：C-Tech
• Origin：China
• HS Code：90248000
• Production Capacity：1000 Set,Month

Basic Info.

Model NO. 48-B0192 Power Source None Weight 29kg Installation Portable Precise Customized Non-Customized Rocker Weight 1500+/-30 G Distance Between Rocking Centre and Cent 410+/-5 Mm Positive Static Pressure on Pavement 22.2+/-0.5 Kn Transport Package Package Specification EN 13036-4 Trademark C-Tech Origin China HS Code 90248000 Production Capacity 1000 Set/Month

Product Description

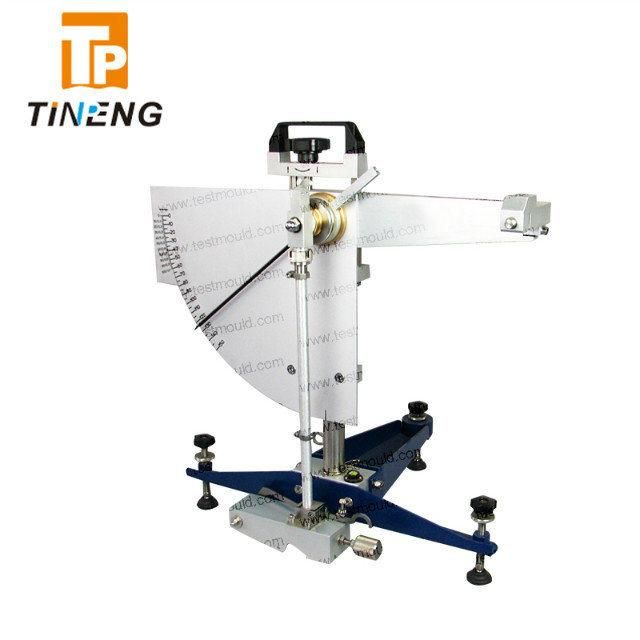

Skid resistance and friction tester
Used for the measurement of surface friction properties,
The apparatus is suitable for both site and laboratory Applications and for Polished Stone Value tests using Curved specimens from accelerated polishing tests.
The test equipment is supplied complete with:
- Additional scale for tests on Polished Stone Value Specimens.
- 6 rubber sliders for site use, complete with conformity Certificate.
- Thermometer -10 to +110 ° C for surface temperature Measurement.
- 1 litre washing bottle, for surface wetting.
- Tool set with case, for machine assembly.
- Rule for sliding length verification.
Specification:

Rocker weight:	1500± 30 g
Distance between rocking centre and Center of gravity:	410± 5 mm
Positive static pressure on pavement:	22.2± 0.5 kN
Package:	Aluminum Alloy
Dimension(mm):	700 × 360 × 700
