• Model NO.：GD-268
• Feature：Simple Design. Accessories Complete.
• OEM Service：Available
• Warranty：1 Year
• Transport Package：Plywood
• Origin：Chongqing of China
• HS Code：903189090
• Production Capacity：100 Sets , Month

Basic Info.

Model NO. GD-268 Feature Simple Design. Accessories Complete. OEM Service Available Warranty 1 Year Transport Package Plywood Origin Chongqing of China HS Code 903189090 Production Capacity 100 Sets / Month

Product Description

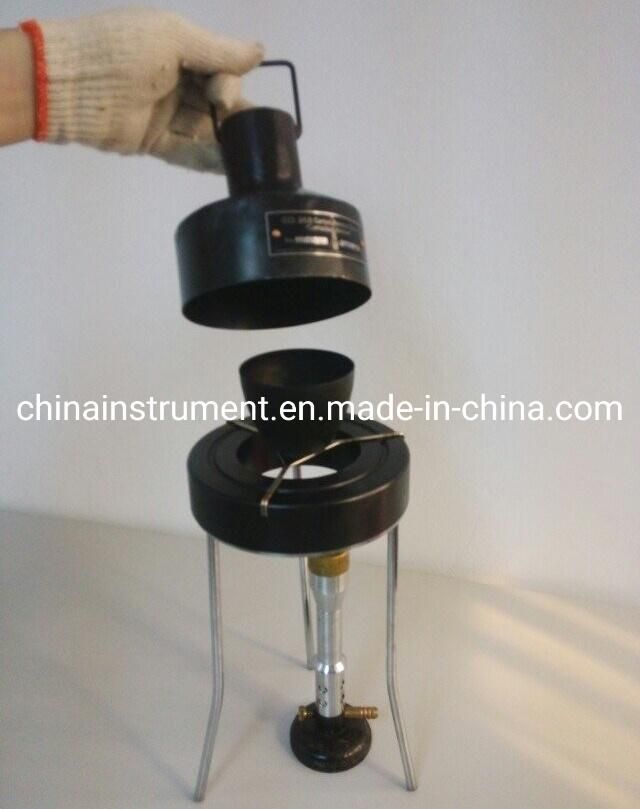

CCR Conradson Carbon Residue Apparatus ASTM D189 for conradson carbon residue content testing



CCR Introduction:

The Conradson Carbon Residue Apparatus is designed and made as per national standard of People's Republic of China GB/T268 Standard Test Method for Carbon Residue of Petroleum Products by Conradson Method. The Conradson Carbon Residue Apparatus is used to determine the amount of carbon residue of petroleum products after evaporation and pyrolysis, so as to check coke forming property of petroleum products. The Conradson Carbon Residue Apparatus can also meet requirements of ASTM D189 Standard Test Method for Conradson Carbon Residue of Petroleum Products.


CCR Features:

1. The design can totally meet requirements of standard GB/T 268.
2. Simple design. Accessories complete. The test can be done as loon as equip civil gas.


CCR Specifications:

1. Porcelain crucible: About 30ml.
2. Inner iron crucible: About (75±5)ml.
3. Outer iron crucible: About(190±10)ml with cover.
4. Supporter: Height: (250±10)mm; Bore diameter: Ф(130±5)mm
5. Flame shield: Diameter of upper port:Ф(90±2)mm; Diameter of lower port:Ф(82±2)mm
6. Round iron cover:  The height of underpart is (50~53)mm.
                                  The height of cone  in the middle is (25±2)mm.
                                  There is a piece of Ф3mm iron wire as the fire bridge on the top.
                                  The height is (50±3)mm.It is regarded as the indicator of max height.
7. Blowtorch: It adopts gas torch .
8. Dimension: Ф130mm×400mm
