• Model NO.：HD-A521-1
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Delivery Time：20 Days After Receive The Deposit
• 20 Days After Receive The Deposit：25.4 mm (1 Inch)
• Simulation Speed：Simulation Speed
• Power：220V, 50 Hz
• Max. Test Load：100 Kg
• Frequency Range：60-300 Rpm
• Vibration Mode：Round Trip
• Woke Table Size：1000*1200 mm
• Outside Dimension (L*W*H)：Outside Dimension (L*W*H)
• Transport Package：Strong Wooden Case
• Specification：En71, UL, Ista, ASTM
• Trademark：Haida
• Origin：Haida
• HS Code：9024800000
• Production Capacity：100 Set Per Month

Basic Info.

Model NO. HD-A521-1 Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Delivery Time 20 Days After Receive The Deposit 20 Days After Receive The Deposit 25.4 mm (1 Inch) Simulation Speed Simulation Speed Power 220V, 50 Hz Max. Test Load 100 Kg Frequency Range 60-300 Rpm Vibration Mode Round Trip Woke Table Size 1000*1200 mm Outside Dimension (L*W*H) Outside Dimension (L*W*H) Transport Package Strong Wooden Case Specification En71, UL, Ista, ASTM Trademark Haida Origin Haida HS Code 9024800000 Production Capacity 100 Set Per Month

Product Description

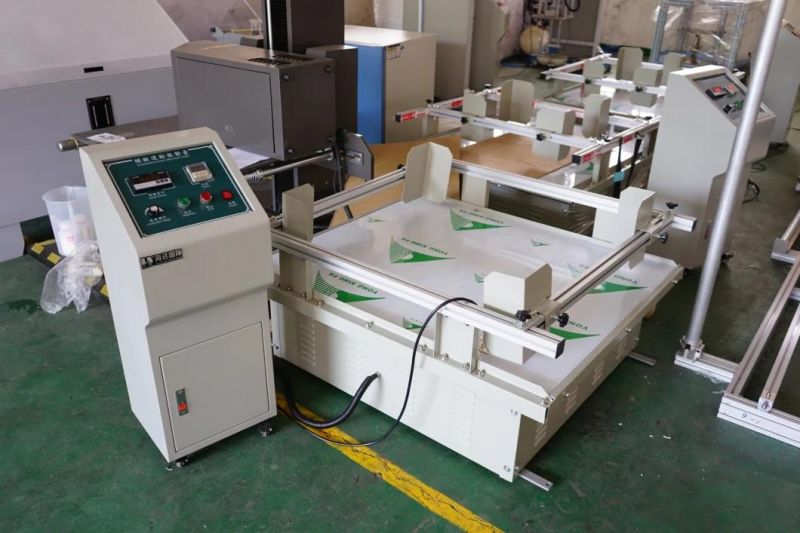

Carton Package Simulation Vibration Testing Machine
Transporation  Vibration Testing  Machine

1.The Usage

The machine which simulates a transporation environment, is applicable to the vibration test of toys, electronics, furnitures, gifts, ceramics, communications, packagings, equipment, computer and automobile components, etc.

2.Features:

1. low price, which is only 10% of the same products in the USA.
2. the digital screen dispaly the vibration frenquency
3. use rail track for the installation of the test sample, oprate easily and safely
4. the pedestal of the machine applies heavy style channel with vibration attenuation pad, convenient, stable,no need to install the land-end screw.

3.Main technical parameters are as follows:


Max. Test Load	100 Kg
Frequency Range	60-300 rpm
Amplitude Range	25.4 mm (1 inch)
Vibration Mode	Roundtrip
Simulation Speed	25~40 km/h
Woke Table Size	1000×1200 mm
Outside Dimension (L×W×H)	1255×1070×660 mm
Power Capacity	1 HP
Weight	125 Kg
Environmental Conditions	Temperature: 5~40°C;  Related Humidity <85%
Speed Mode	DC converter or AC Frequency Control
Power	220V, 50 Hz
Design Criteria	EN71, UL, ASTM ISTA



The introduction of Haida:

Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.


After-service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
