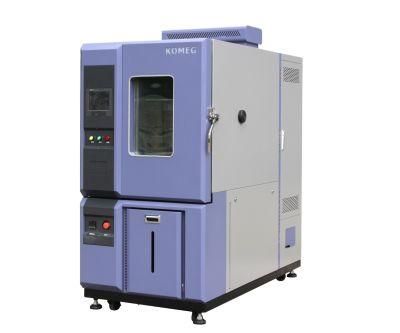

• Model NO.：KMH-408R
• Humidity Constancy：+,-2.5%R.H.
• Temp. Uniformity：+,-2.0oc
• Humidity Uniformity：+,-3.0%R.H.
• Heat up Time：-20oc~ +100oc Within 35mins
• Pull Down Time：+20 Oc~-20 Oc Within 45mins
• Equipment Power：7.5kw
• Transport Package：Strong Plywood Case, Meet International Standards
• Specification：Standard and customs made
• Trademark：KOMEG
• Origin：Dongguan, China
• HS Code：90321000
• Production Capacity：1000 Sets Per Year

ModelKMH-408R225L chamber volumeTemp. range -20°C ~150°C Display resolution0.1°CTemperature stabilityHigh±0.5°C ,low ±1.0°CTemperature uniformity ±2.0°CHeat up time -20°C ~+100°C,within 35 minPull down time -20°C ~-20°C,within 45 minHumidity range20~98%R.H,(standard),   '10~98%R.H,(with humidifier)Humidity constancy±2.5%R.HHumidity uniformity±3.0%R.HInterior Dimension(mm)700W*750H*800DExterior Dimension(mm)980W*1940H*1740D Interior materialStainless Steel Plate(SUS 304)Exterior materialBaked Painting Steel Or Stainless steel(SUS304)Insulation materialRigid polyurethane Foam and Glass Fiber WoolTotal power  6KW(heater 3KW included)Max current17AWater Consumption1L/hrAmbient Temp.+5°C ~+35°C Power Supply AC 380V±10%50Hz ,3 phase 4 wires +Ground WiresWeight 400KGSight window size460*560mmSample holder 2 pcsFittingscable port(portΦ50mm)*1, chamber lamp*1, power cable *2mSafety device  (standard)No fuse breaker,over pressure,over heat&over current protect,over temp. protect, over load protect for blower, dry heat protect Control SystemBalanced Temperature & Humidity Control (BTHC)SystemRefrigeration systemAir Cooled (Water Cooled is option)Hermetic compressor  Hermetic compressor                                                                                                Single stage refrigeration system,                                                                            CFC-Free refrigerant(HFC-507/HFC-23)CFC-Free refrigerant(HFC-507/HFC-23)Controller7-inch LCD Touch Screen panel                                                                        Operation model :Program or fix point runningMemory capacity :120programs,1200steps,All repeat 999 cycles, part repeat 99 cyclesNote: 1. We reserve the right to change specifications without prior notice                                                    2. Customized sizes and configurations available
