Electric Sand Equivalent Shaker
Shanghai Civil & Road Instrument Co., Ltd.- After-sales Service：24 Hours Online Support
- Warranty：1 Year
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Aggregate Testing Machine
- Maxcapacity：No
Base Info
- Model NO.：STSD-2
- Accuracy Grade：1
- Load Way：Electronic Load
- Loading Method：No
- Display：Digital
- Control：No
- Weight：45kg
- Power Source：AC380V
- Oil Cylinder Position：No
- Product Name：Electric Automatic Motorized Sand Equivalent Shake
- Stroke：203mm
- Rate：180 Strokes,Min
- Working Voltage：AC220V 50Hz
- Test Tube Size：Dia.32X420mm
- Duration of Oscillation：0-30 Second
- Quiescence Time：0-20min
- Rated Power：90 W
- Dimension：564X320X360mm
- Transport Package：Wooden Case
- Specification：564x320x360mm
- Trademark：SHTG
- Origin：China
- HS Code：9031809090
- Production Capacity：100PCS,Month
Description
Basic Info.
Model NO. STSD-2 Accuracy Grade 1 Load Way Electronic Load Loading Method No Display Digital Control No Weight 45kg Power Source AC380V Oil Cylinder Position No Product Name Electric Automatic Motorized Sand Equivalent Shake Stroke 203mm Rate 180 Strokes/Min Working Voltage AC220V 50Hz Test Tube Size Dia.32X420mm Duration of Oscillation 0-30 Second Quiescence Time 0-20min Rated Power 90 W Dimension 564X320X360mm Transport Package Wooden Case Specification 564x320x360mm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/MonthProduct Description

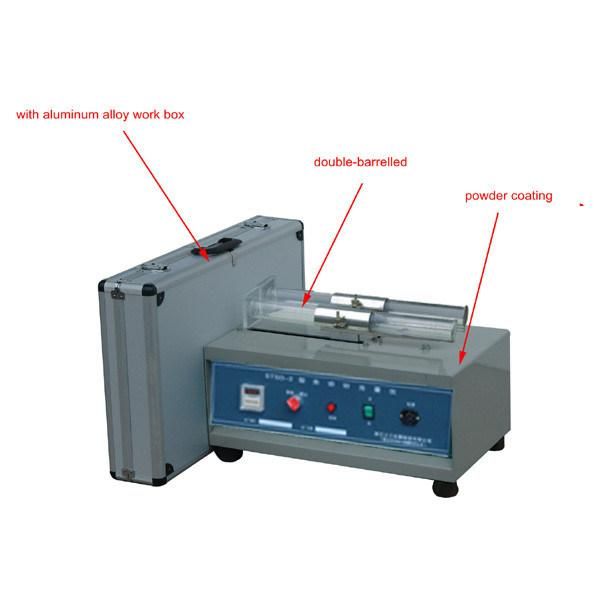

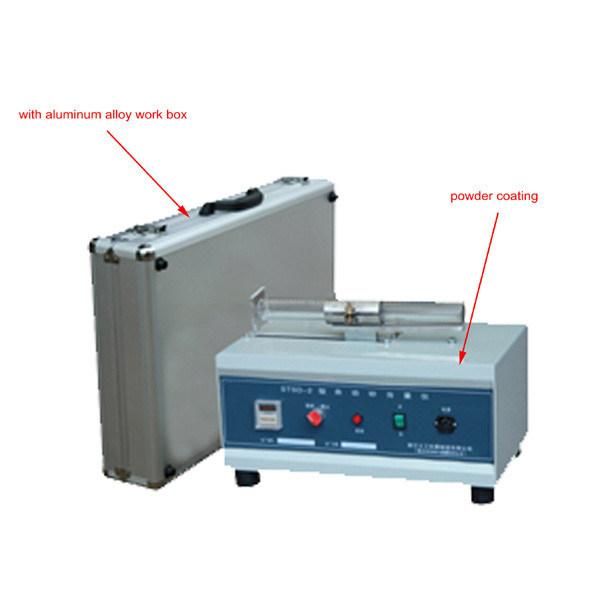

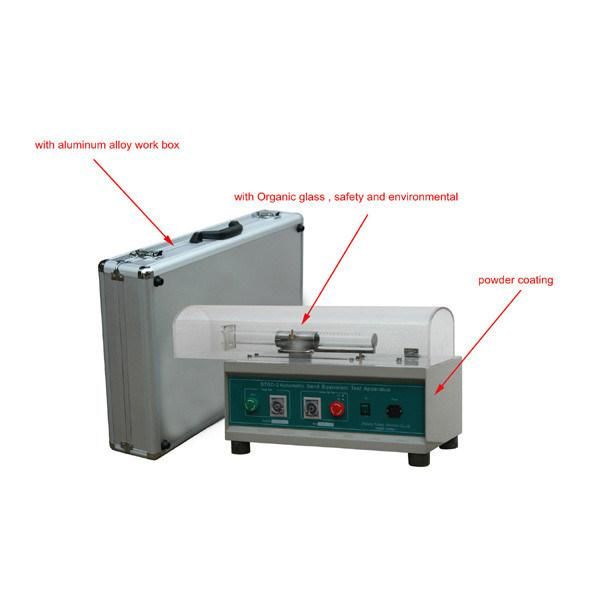

STSD-2 Electric Sand Equivalent Shaker| Stroke | 203±1.0mm |
| Rate | 180±2 strokes/min |
| Working voltage | AC220V±10% 50HZ |
| Test tube size | dia.32X420mm |
| Duration of oscillation | 0-30 second |
| Quiescence time | 0-20min |
| Rated power | 90 W |
| Dimension | 564×320×360mm |
| Weight | 45±1Kg |
| Feature | A timer stops the machine at the end of the test |
