• Model NO.：WZ-1
• Accuracy Grade：1
• Load Way：No
• Loading Method：No
• Display：Digital
• Control：No
• Weight：2.5kg
• Power Source：No
• Oil Cylinder Position：No
• Product Name：Soil Expansion Test Device
• Transport Package：Wooden Case
• Specification：15x15x10cm
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. WZ-1 Accuracy Grade 1 Load Way No Loading Method No Display Digital Control No Weight 2.5kg Power Source No Oil Cylinder Position No Product Name Soil Expansion Test Device Transport Package Wooden Case Specification 15x15x10cm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

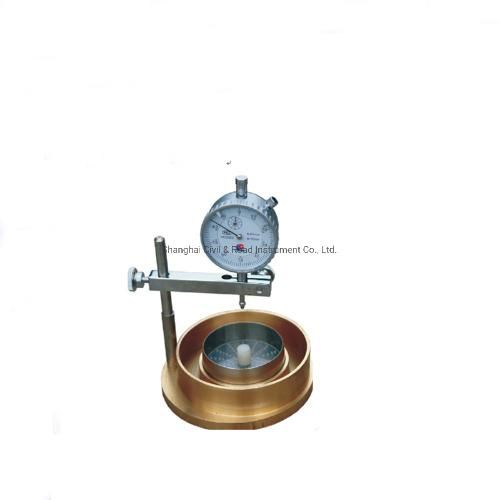

WZ-1 Expansion Apparatus
Application: it is used to test unidirectional expansion of immersed natural soil and compacted soil specimen under no-loading but confining stress, water content after stabilization, and Max. stress caused by expansion.
Specification:


Cutting ring size	dia61.8×20mm
Soil specimen size	dia61.8×20mm
Soil pusher height	15mm
Guide ring	Prevent expansion
Dial indicator	0mm-10mm (the order does not include dial indicator)
Instrument weight	2.5Kg
Level adjustment	The bottom of the adjusting screw
