Large Triaxial Apparatus
Shanghai Civil & Road Instrument Co., Ltd.- After-sales Service：24 Hours Online Support
- Warranty：1 Year
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Triaxial Test
- Maxcapacity：1500kn
Base Info
- Model NO.：STSZ-ZD
- Accuracy Grade：1
- Load Way：Electronic Load
- Loading Method：Static Load
- Display：Digital
- Control：Electric Digital
- Weight：500
- Power Source：380V ,220V
- Oil Cylinder Position：No
- Product Name：Large Triaxial Apparatus
- Application：Used to Test Shear Strength of Coarse Grained Soil
- Size of The Soil Sample：Dia.30cm X60cm
- Axial Loading：1500K N
- Max.Stroke：300mm
- Max. Confining Pressure：3MPa
- Max. Back Pressure：1MPa
- Pore Water Pressure：2MPa
- Transport Package：Wooden Case
- Specification：2CBM
- Trademark：SHTG
- Origin：China
- HS Code：9031809090
- Production Capacity：100PCS,Month
Description
Basic Info.
Model NO. STSZ-ZD Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Electric Digital Weight 500 Power Source 380V /220V Oil Cylinder Position No Product Name Large Triaxial Apparatus Application Used to Test Shear Strength of Coarse Grained Soil Size of The Soil Sample Dia.30cm X60cm Axial Loading 1500K N Max.Stroke 300mm Max. Confining Pressure 3MPa Max. Back Pressure 1MPa Pore Water Pressure 2MPa Transport Package Wooden Case Specification 2CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/MonthProduct Description

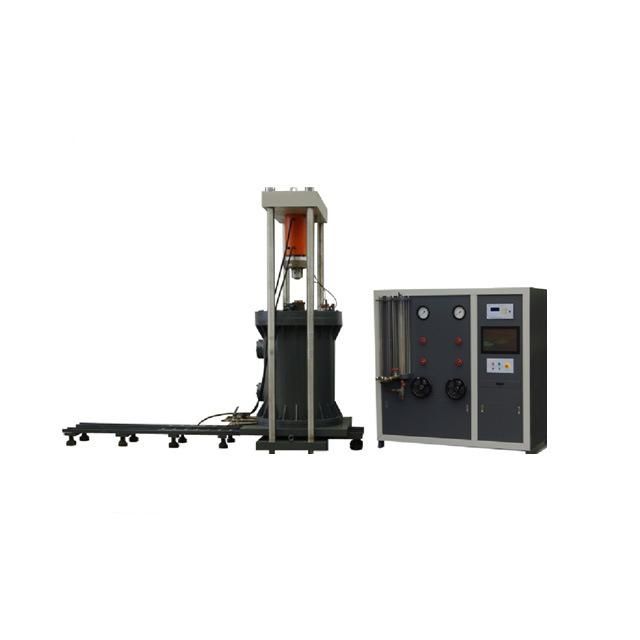

STSZ-ZD Large Triaxial ApparatusApplication: It used to test shear strength of coarse grained soil which particle size is 60mm.
Specification:
| Size of the soil sample | Dia.30cm X60cm |
| Axial loading | 1500k N |
| Max.stroke | 300mm |
| Max. Confining pressure | 3MPa |
| Max. Back pressure | 1MPa |
| Pore water pressure | 2MPa |
