• Model NO.：GD-H1645
• HS Code：9031809090
• Production Capacity：100sets,Month

Basic Info.

Model NO. GD-H1645 HS Code 9031809090 Production Capacity 100sets/Month

Product Description

Grease Testing Equipment ASTM D1263 Grease Leakage Tendencies Tester


Introduction:

Load the specimen into the modified front wheel hub and shaft assembly so that the hub and shaft are operated for a total of 360 ± 5 minutes under specified conditions. Determine the amount of grease or oil lost, and observe the bearing surface condition at the end of the test. The instrument is suitable for the measurement of the loss of grease in automotive wheel bearings and can be used to distinguish products with significantly different leakage characteristics.


Main Features:

1. The instrument adopts integrated design, with a long-lasting appearance and easy operation.
2. The unique heat pipe rod inserting and casting body box heating system makes the heating speed fast and the temperature control precision is high.
3. The imported motor rotates, the noise is low, the speed is stable, the mechanical performance is good and the wear is small.
4. The hub and the shaft assembly are compact in structure, small in end gap, and the bearings are all imported components, ensuring reliability and wear resistance.
5. Microcomputer temperature controller, digital display, accuracy ±0.5ºC PT100 sensor.
6. Digital display timer, recording test time.
7. a thermometer hole on the shaft assembly.
8. Standard motor 660r/min±30r/min.
9. The heating power of the two groups is 660W.
10. Insulation cotton insulation around the cabinet.


Technical Parameters:

1. Applicable standards: SH/T0326, ASTM D1263
2. Heating method: metal bath heating
3. Temperature control mode: imported PID thermostat
4. Temperature control range: normal temperature ~ 150ºC±0.1ºC
5. Timing mode: digital display four-digit timer
6. Timing range: 0.01s ~ 99h99m
7. Motor speed: 660r/min ± 30r/min
8. Machine power: 1KW
9. Working power supply: AC220V / 50HZ

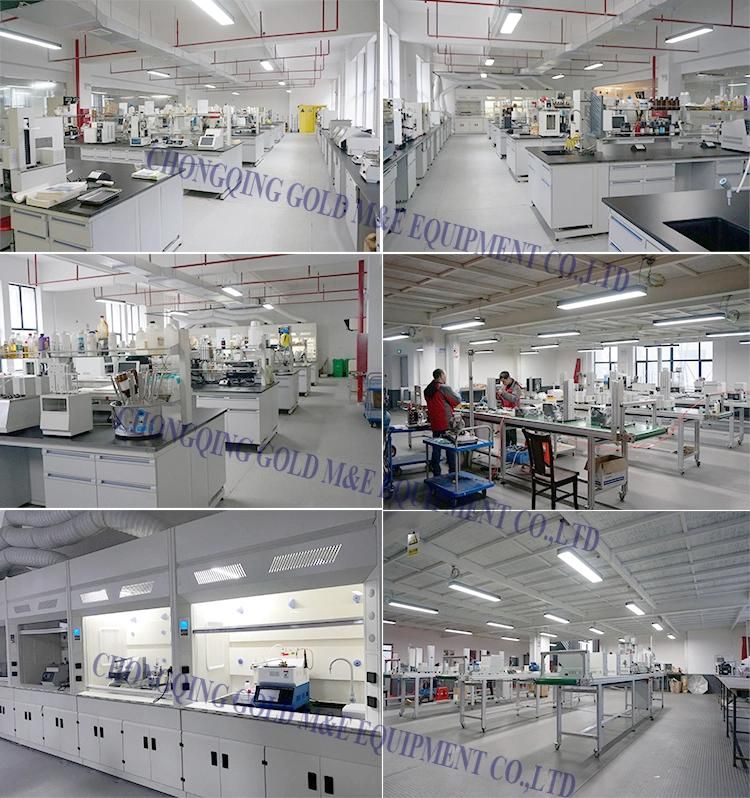

Welcome to visit Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd.
